Zīmols
Ražotāja daļas nr
AOA-4G-5MGN-SMM
Garantija
?
24 mēneši
EAN numurs
4718050305803

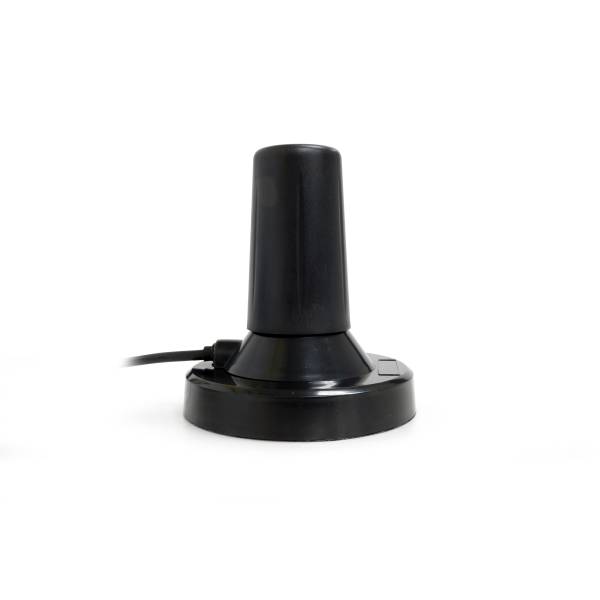

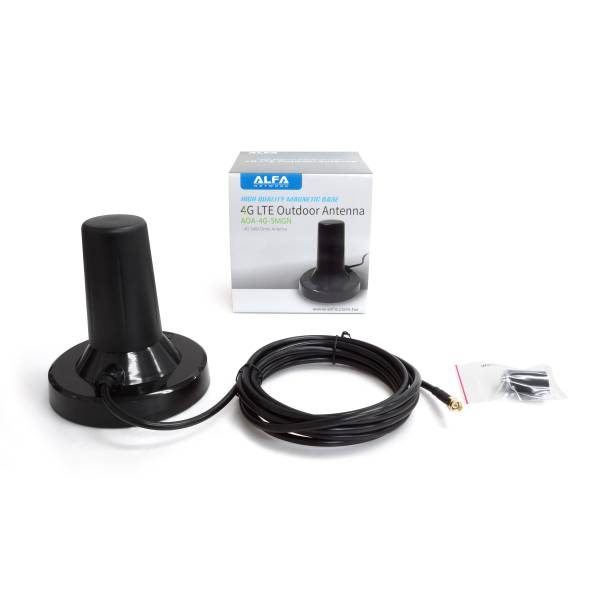

4G LTE āra Omni antena 5dBi, SMA Male, ar magnētisko pamatni
ir noliktavā
?
35.91 €
35.91 €
Preces apraksts
AOA-4G-5MGN-SMM ir visvirziena 4G/LTE antena uz magnētiskās pamatnes, kas paredzēta lietošanai ārpus telpām. Darbojas frekvenču joslās 698-960 MHz SISO 1x1 un 1710-2700 MHz SISO 1x1 ar 5 dBi pastiprinājumu. Aprīkota ar ūdensizturīgu SMA Male tipa savienotāju. Kabeļa garums ir 3m.
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni

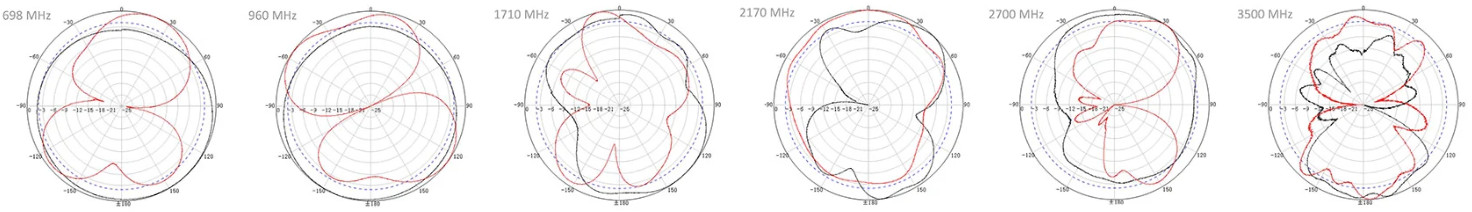

Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 2 (dBi), 1.71 - 2.17 (GHz) 5 (dBi), 2.4 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 5 dBi, 4 dBi
Stara platums
360 °
Polarizācija
Vertikālā
Kabeļa garums
3 m
VSWR
< 4
Pretestība
50 Ω
Maksimālā ieejas jauda
50 W
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
Ø110 × 120 mm
Svars
0.9 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra
Montāžas veids
Magnētisks
