Produkta nosaukums

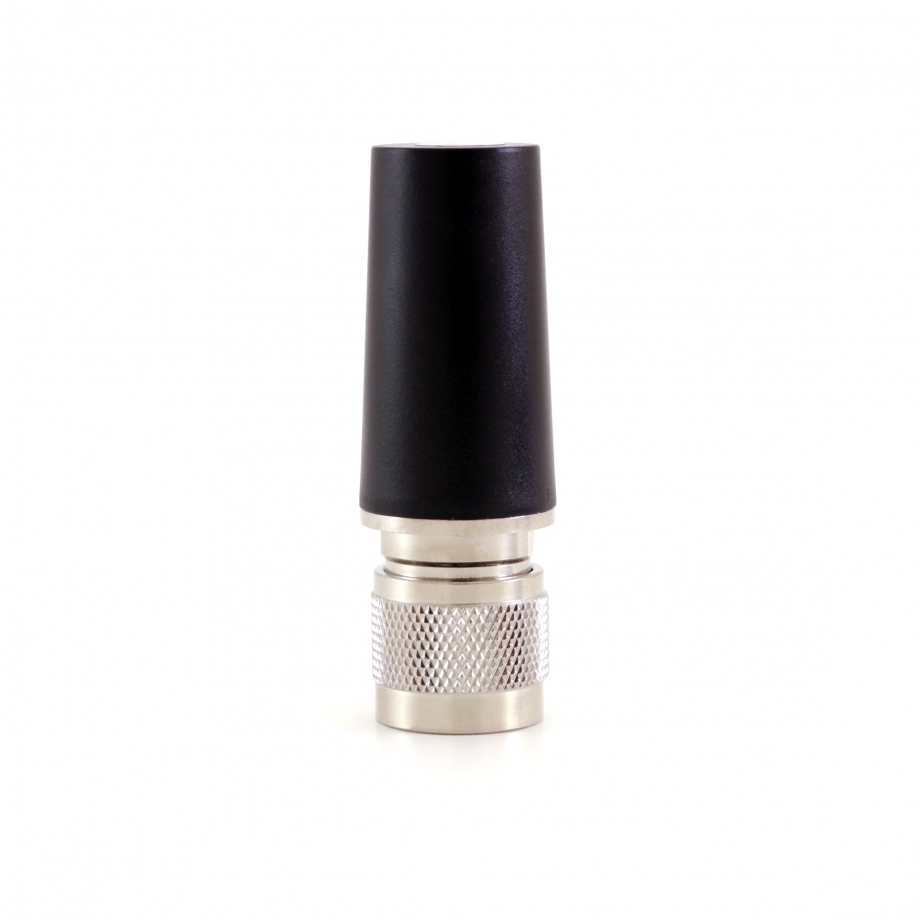

4G Omni antena 2dBi N-Male
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-4G-2ACM
EAN numurs
4718050307449
ALFA Network 4G LTE omnidirekcionālā antena 2 dBi lietošanai ārpus telpām ar N vīrišķo savienotāju
Ir noliktavā
?
8.22 €
8.22 €
Preces apraksts
AOA-4G-2ACM ir visvirzienu 4G/LTE antena no ALFA Networks, kas paredzēta lietošanai ārpus telpām. Darbojas frekvenču joslās 698-960 MHz SISO 1x1, 1710-2170 MHz SISO 1x1 un 2500-2700 MHz SISO 1x1 ar 2 dBi pastiprinājumu. Aprīkota ar ūdensnecaurlaidīgu N tipa savienotāju.

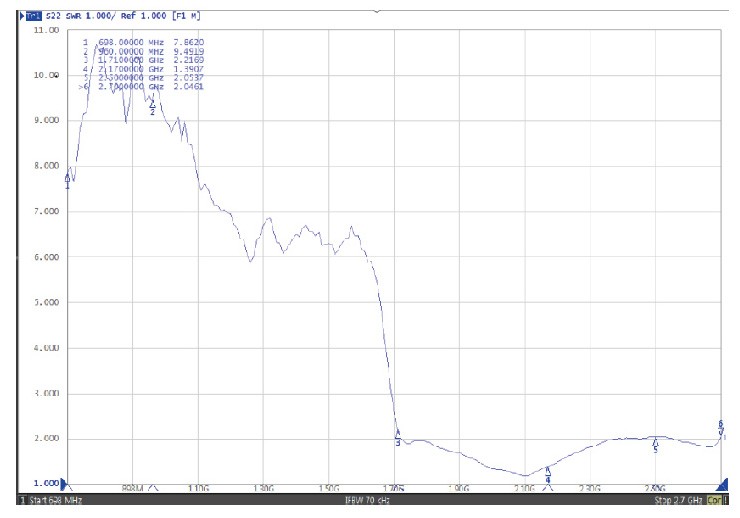

WSWR

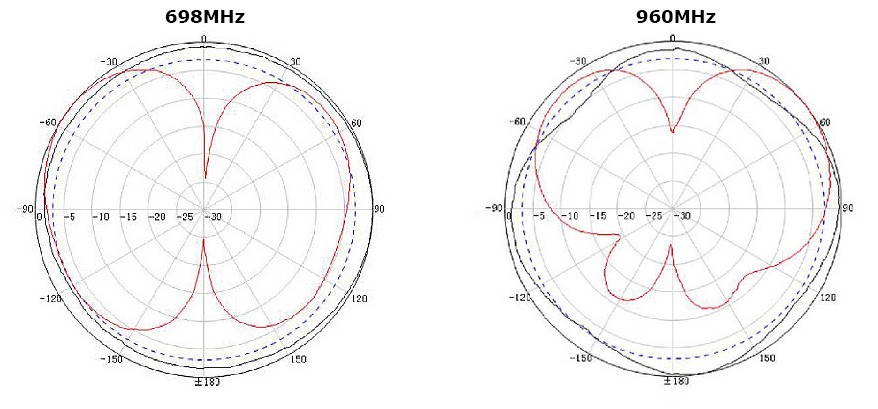

Frekvenču diagramma
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 2 (dBi), 1.71 - 2.17 (GHz) 2 (dBi), 2.5 - 2.7 (GHz) 2 (dBi)
Mobilās antenas pastiprinājums
2 dBi
Stara platums
360 °
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) N Male
Fiziskie parametri
Krāsa
Melns
Materiāls
Plastmasa
Izmēri
Ø22 x 64 mm
Svars
0.043 kg
Darbības temperatūra
-40 °C līdz 85 °C
