Produkta nosaukums
4G LTE āra antena 5dBi IP67 N-Male
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-4G-5M
EAN numurs
4718050305537
ALFA Network AOA-4G-5M 4G LTE āra visvirzienu antena 5 dBi IP67 N tipa spraudnis
- Omnidirekcionāla 4G/LTE āra antena stabilākam mobilajam signālam; IP67 korpuss palīdz pasargāt no putekļiem un ūdens.
- Atbalsta 698–960 MHz ar 4 dBi un 1710–2690 MHz ar 5 dBi pastiprinājumu, nodrošinot spēcīgu LTE uztveri svarīgākajās joslās.
- SISO 1x1 konstrukcija ar N Male savienotāju ērtai integrācijai saderīgās āra bezvadu un LTE sistēmās.
- Paredzēta āra uzstādīšanai: IP67 aizsardzība palīdz nodrošināt uzticamu darbību lietū, putekļos un atklātās vietās.
- ALFA Network AOA-4G-5M ir praktiska izvēle 4G/LTE signāla uzlabošanai mājās, vasarnīcā, objektā vai attālās vietās.
27.04 €
Ir noliktavā
?
27.04 €
Ir noliktavā
?
Preces apraksts
AOA-4G-5M ir visvirziena 4G/LTE antena no ALFA Network, kas paredzēta lietošanai ārpus telpām ar IP67 korpusa aizsardzību. Darbojas frekvenču joslā 698-960 MHz SISO 1x1 ar 4 dBi pastiprinājumu un 1710-2690 MHz SISO 1x1 ar 5 dBi pastiprinājumu. Aprīkota ar N Male tipa savienotāju.

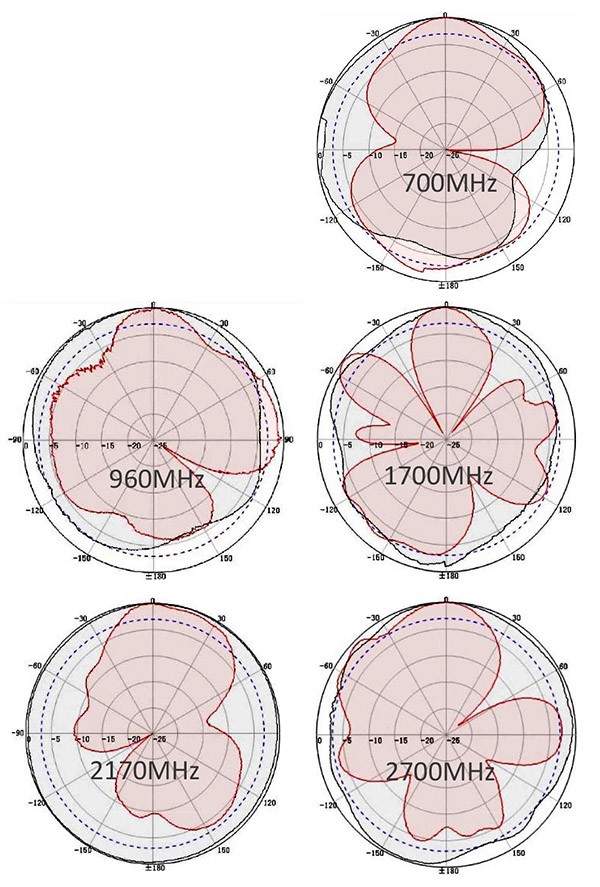

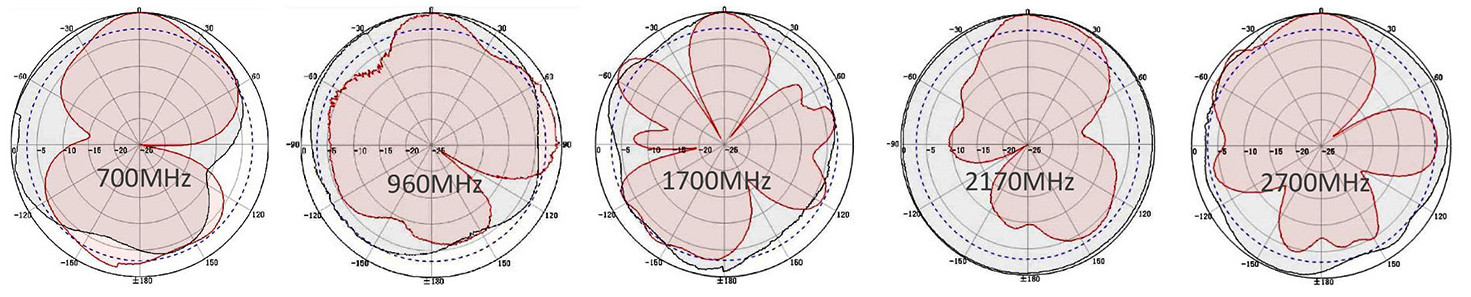

Frequency Diagram
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 4 (dBi), 1.710 - 2.700 (GHz) 5 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 5 dBi
Stara platums
35 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji
(1) N Male
Fiziskie parametri
Krāsa
Pelēks
Materiāls
Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
Ø20 x 320 mm
Svars
0.25 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra
Montāžas veids
Pieļaujamais vēja ātrums
60 m/s
