Zīmols
Ražotāja daļas nr
AX50MO
Garantija
?
24 mēneši
EAN numurs
5907772035818
QuMax antena RUTX50 iekārtai
ir noliktavā
?
200.85 €
200.85 €
Preces apraksts

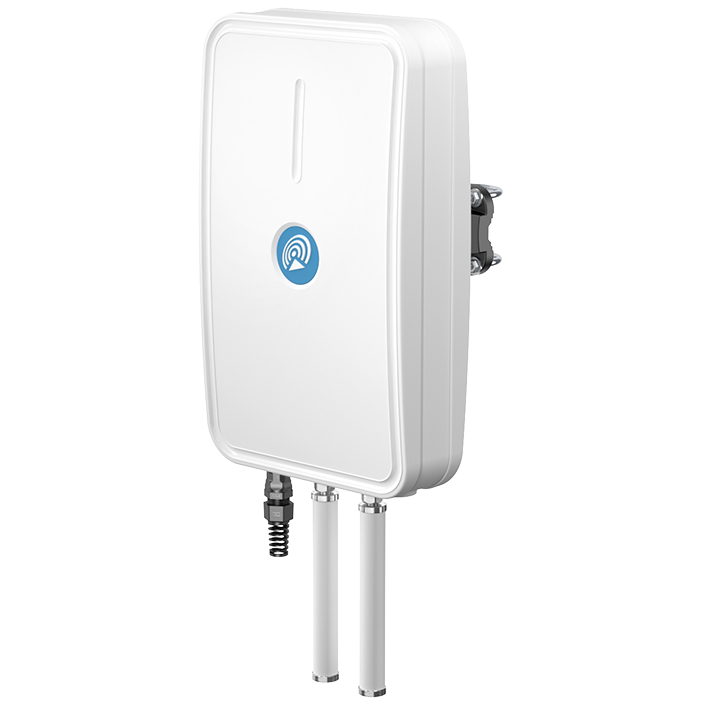

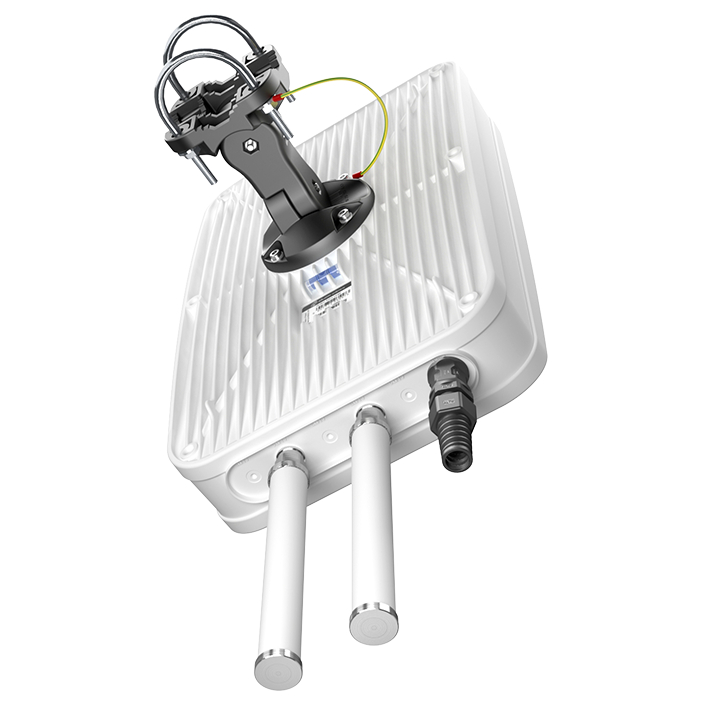

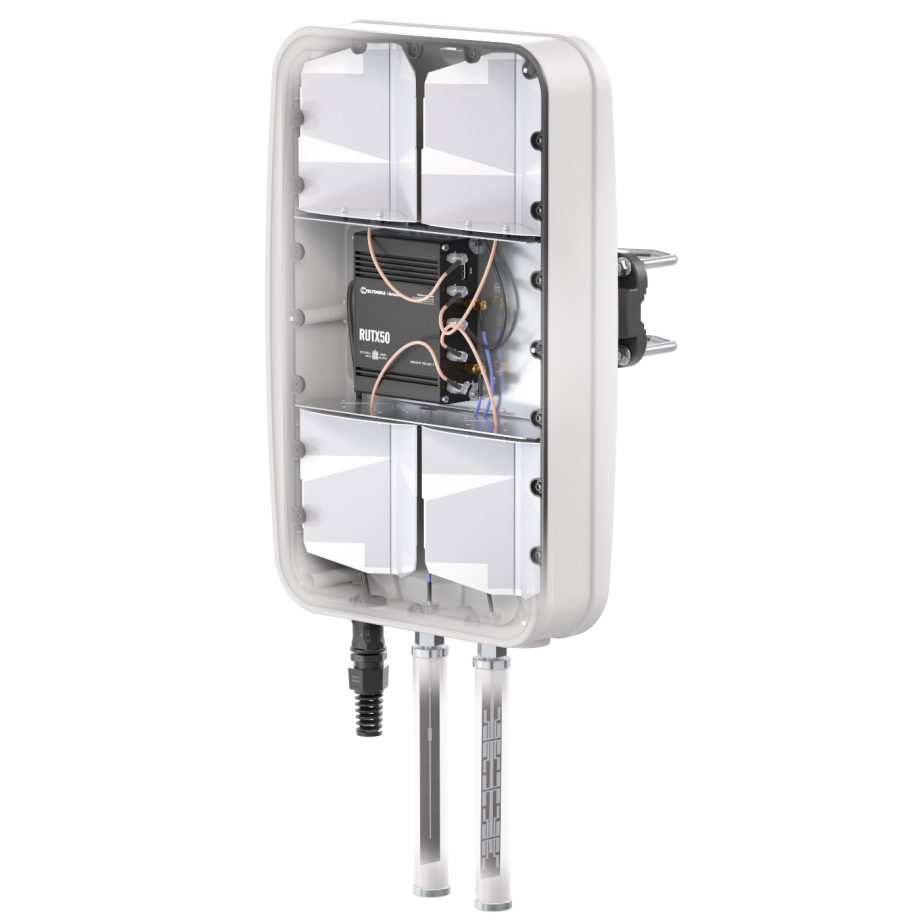

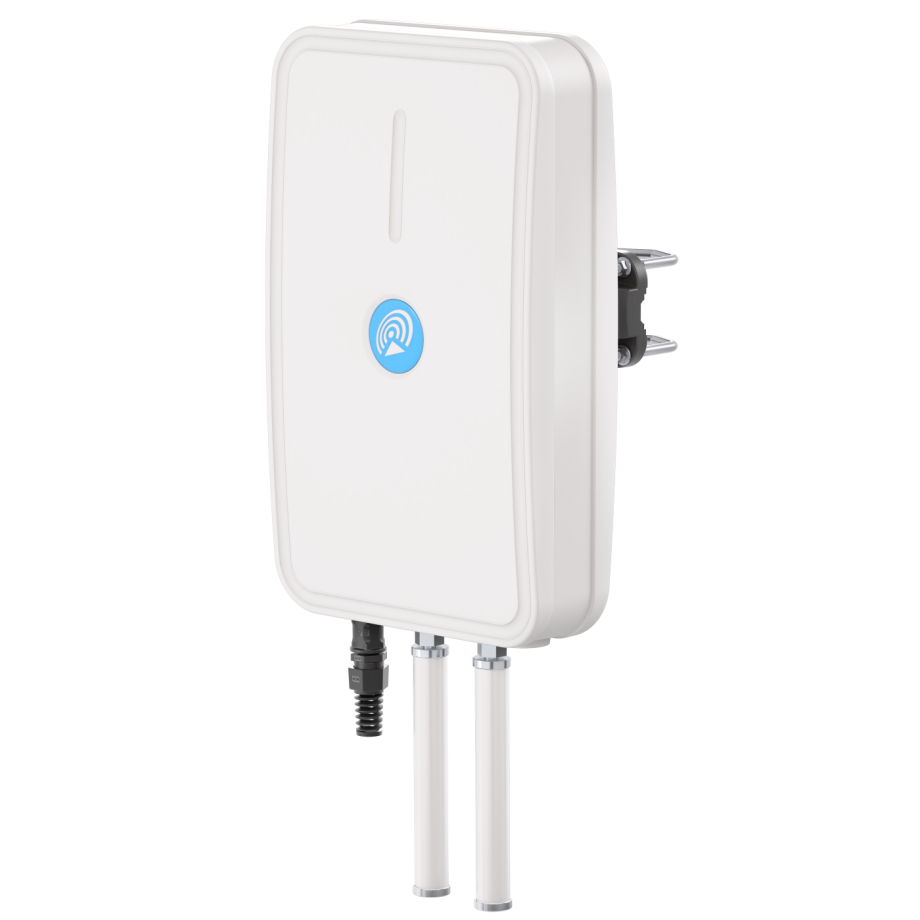

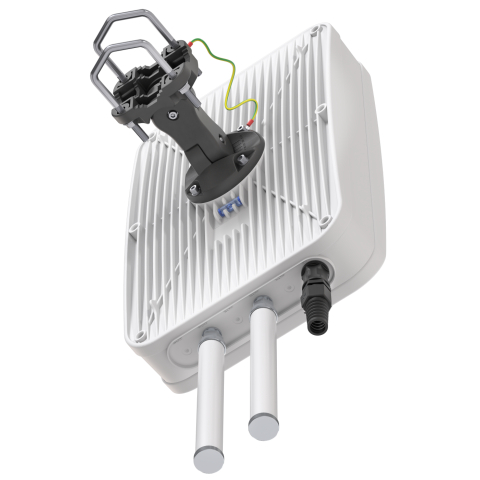

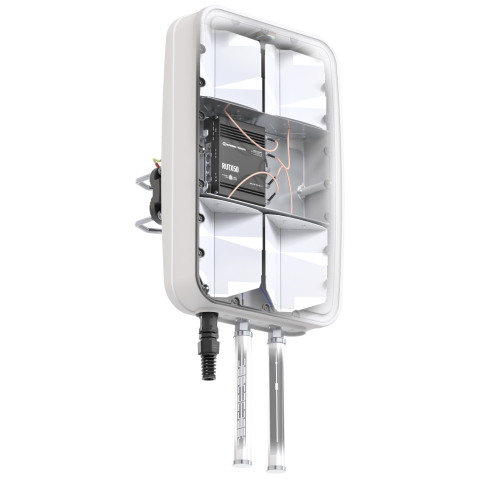

QuMax Omni ir daudzvirzienu 5G 4x4 MIMO antena izstrādāta Teltonika RUTX50 maršrutētājam. Antena aptver plašu frekvenču diapazonu no 617 MHz (71. josla) līdz 3,8 GHz. Papildus 5G antenām komplektā ir iekļautas arī Wi-Fi un GPS antenas, kas nozīmē, ka jūs saņemat universālu risinājumu savam RUTX50 maršrutētājam. Papildu maršrutētāja nodalījums korpusa iekšpusē rada vairākus jaunus scenārijus izmantošanai ārpus telpām (IP67). To ieteicams uzstādīt kustīgos transportlīdzekļos, piemēram, vilcienos, autobusos vai jahtās, kā arī uzlabot signāla kvalitāti lauku apvidos.
Atbalstītās LTE/4G GSM joslas (617-960 MHz): 5, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, 103, n81, n82, n83, n89, n100
Atbalstītās LTE/4G UMTS joslas (1710-2170 MHz): 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, n80, n84, n86, n95, n98, n101
Atbalstītās LTE/4G WCS DARS joslas (2300-2400 MHz): 30, 40, n97
Atbalstītās LTE/4G joslas (2400-2700 MHz): 7, 38, 41, 53, 69, n90
Atbalstītās LTE/5G joslas (3300-3800 MHz): 22, 42, 43, 48, 49, 52, n78
UZMANĪBU! Antena neatbalsta B32 un n77 joslas (virs 3800 MHz)!
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.5 (GHz) 6 (dBi), 4.7 - 6 (GHz) 7 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.617 - 0.96 (GHz) 3 (dBi), 1.7 - 2.2 (GHz) 3.5 (dBi), 2.3 - 2.7 (GHz) 3.5 (dBi), 3.3 - 3.8 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
3 dBi, 3.5 dBi, 3.5 dBi, 4 dBi
Stara platums
360 °
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Konnektori
Ethernet savienotājs
RJ45
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67

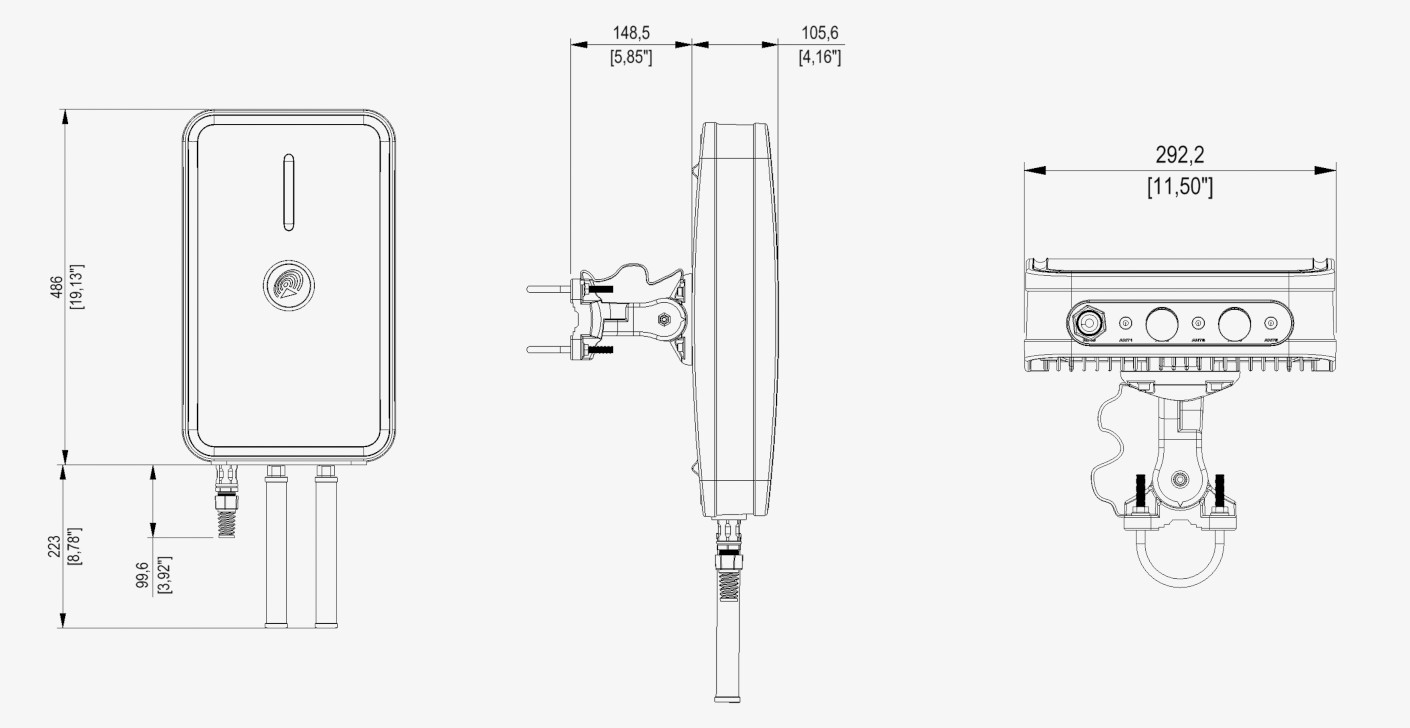

Izmēri
292 x 486 x 106 mm
Svars
2.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
