Produkta nosaukums
4G LTE āra Omni antena 5dBi SMA Male, ar sienas stiprinājumu
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-4G-5W-SMM
EAN numurs
4718050305780

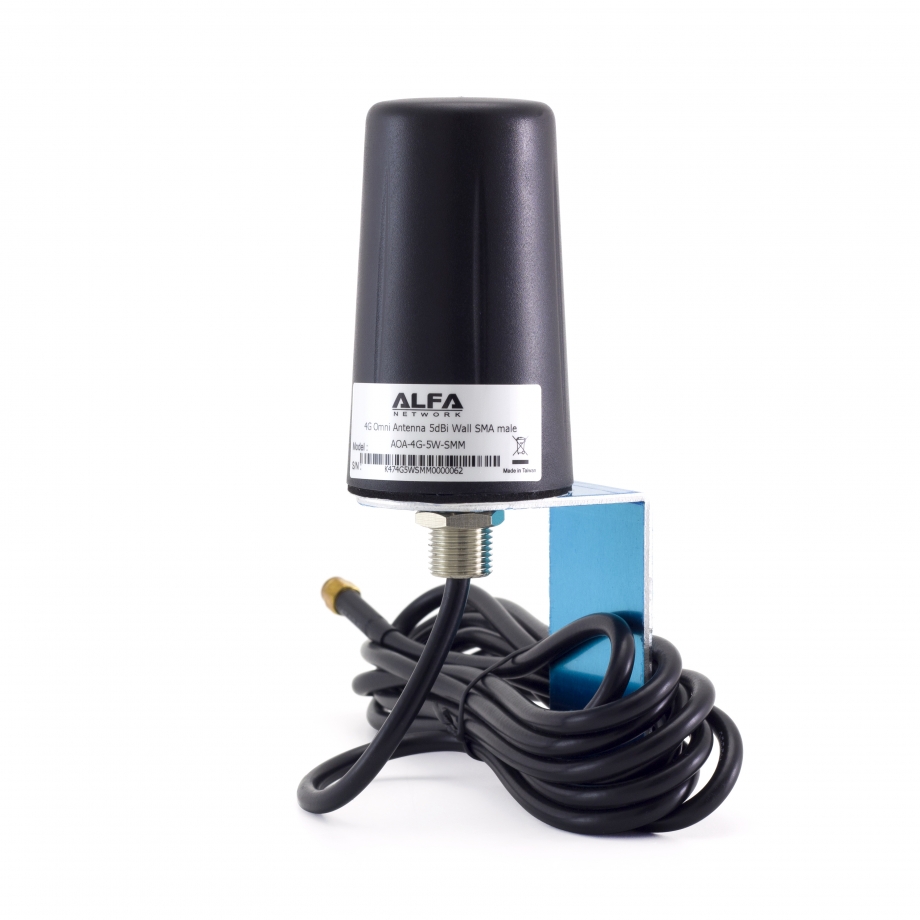

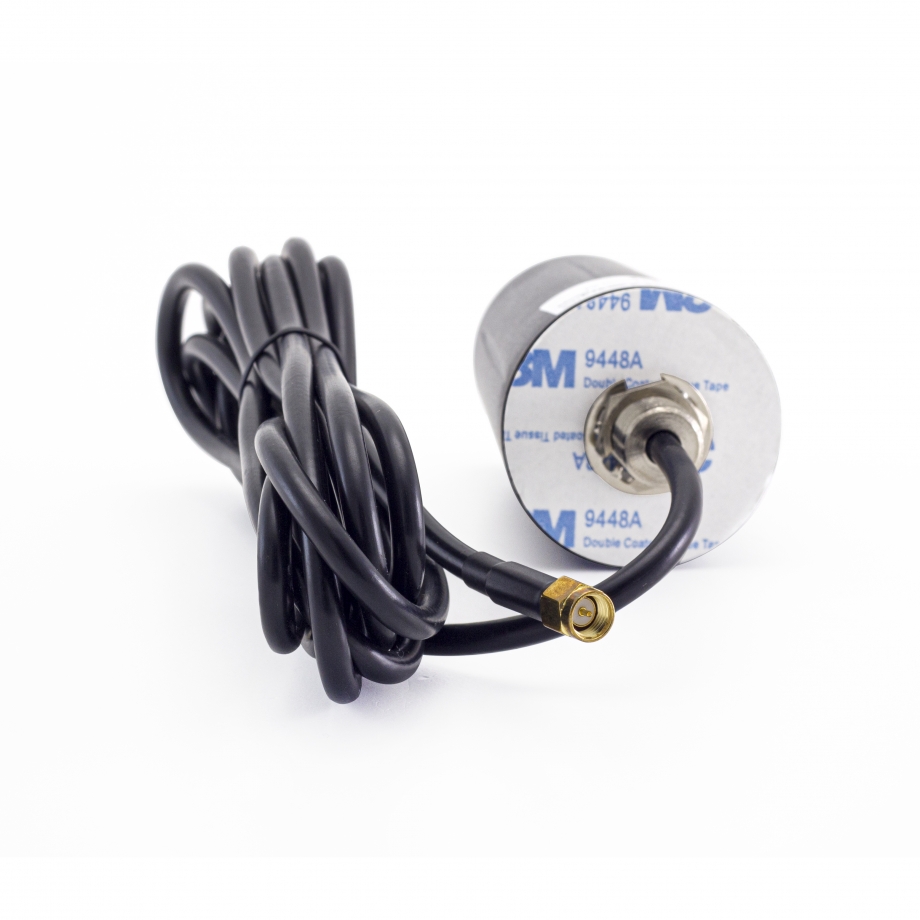

ALFA Network 4G LTE āra omnidirekcionālā antena 5 dBi IP67 stiprināšanai pie sienas SMA male
- 5 dBi 4G/LTE omnidirekcionāla antena labākai uztverei atbalstītajās joslās un stabilākam mobilajam savienojumam āra apstākļos.
- Atbalsta 698–960 MHz un 1710–2700 MHz SISO 1x1 režīmā, nodrošinot uzticamu LTE darbību galvenajās mobilo sakaru frekvencēs.
- Paredzēta lietošanai ārpus telpām, IP67 aizsardzība palīdz izturēt laikapstākļus un saglabāt stabilu signālu.
- SMA male savienotājs ērtai integrācijai ar saderīgām ierīcēm, ideāli piemērota rūteriem, vārtejām un LTE iekārtām.
- ALFA Network AOA-4G-5W-SMM sienas stiprinājuma antena ar omnidirekcionālu pārklājumu elastīgai uzstādīšanai mājās, uzņēmumos vai attālās vietās.
36.46 €
nav noliktavā
?
36.46 €
nav noliktavā
?
Pieejamas alternatīvas
Preces apraksts
AOA-4G-5W-SMM ir visvirziena 4G/LTE antena no ALFA Network, kas paredzēta lietošanai ārpus telpām ar IP67 korpusa aizsardzību. Darbojas frekvenču joslā 698-960 MHz SISO 1x1 ar 5 dBi pastiprinājumu un 1710-2700 MHz SISO 1x1 ar 5 dBi pastiprinājumu. Aprīkota ar ūdensizturīgu SMA Male tipa savienotāju.
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 5 (dBi)
Stara platums
360 °
Polarizācija
Vertikālā
Kabeļa garums
3 m
VSWR
< 2
Pretestība
50 Ω
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
UV plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
Ø48 x 83 mm
Svars
0.22 kg
Darbības temperatūra
-40 °C līdz 80 °C
Vide
Āra
Montāžas veids
Pieļaujamais vēja ātrums
60 m/s
