Produkta nosaukums
4G LTE āra antena 8dBi IP67 N-Female
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-4G-8F
EAN numurs
4718050305568
ALFA Network 4G LTE āra antena 8 dBi IP67 N sieviete
- Omnidirekcionāla 4G/LTE āra antena, kas palīdz uzlabot mobilo signālu vietās ar vāju iekštelpu pārklājumu.
- Divjoslu darbība: 698–960 MHz ar 6 dBi pastiprinājumu un 1710–2700 MHz ar 8 dBi pastiprinājumu uzticamam LTE savienojumam svarīgākajās joslās.
- Paredzēta lietošanai ārā ar IP67 aizsardzību, lai labāk izturētu putekļus un ūdeni skarbos apstākļos.

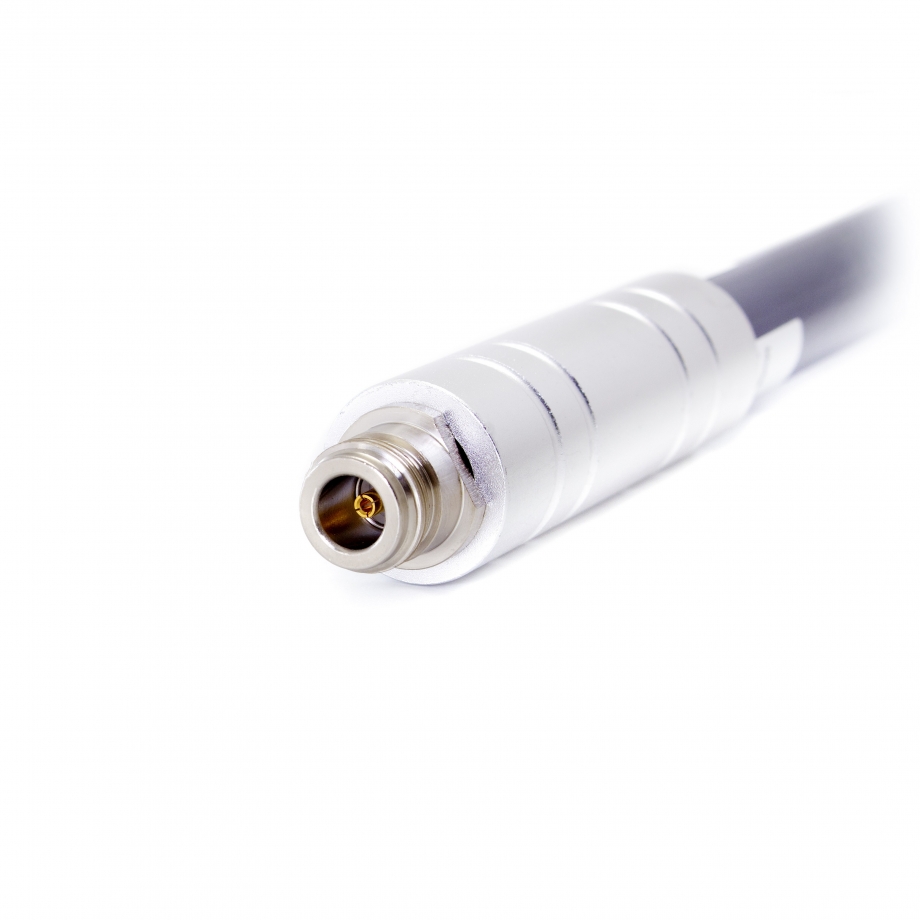

- SISO 1x1 konstrukcija ar N Female savienotāju ērtai integrācijai ar saderīgu LTE aprīkojumu un antenas kabeļiem.
- ALFA Network AOA-4G-8F ir praktiska izvēle mājām, lauku mājām, attālām vietām un citām āra instalācijām ar vajadzību pēc stabila 4G/LTE signāla.
34.24 €
Ir noliktavā
?
34.24 €
Ir noliktavā
?
Preces apraksts

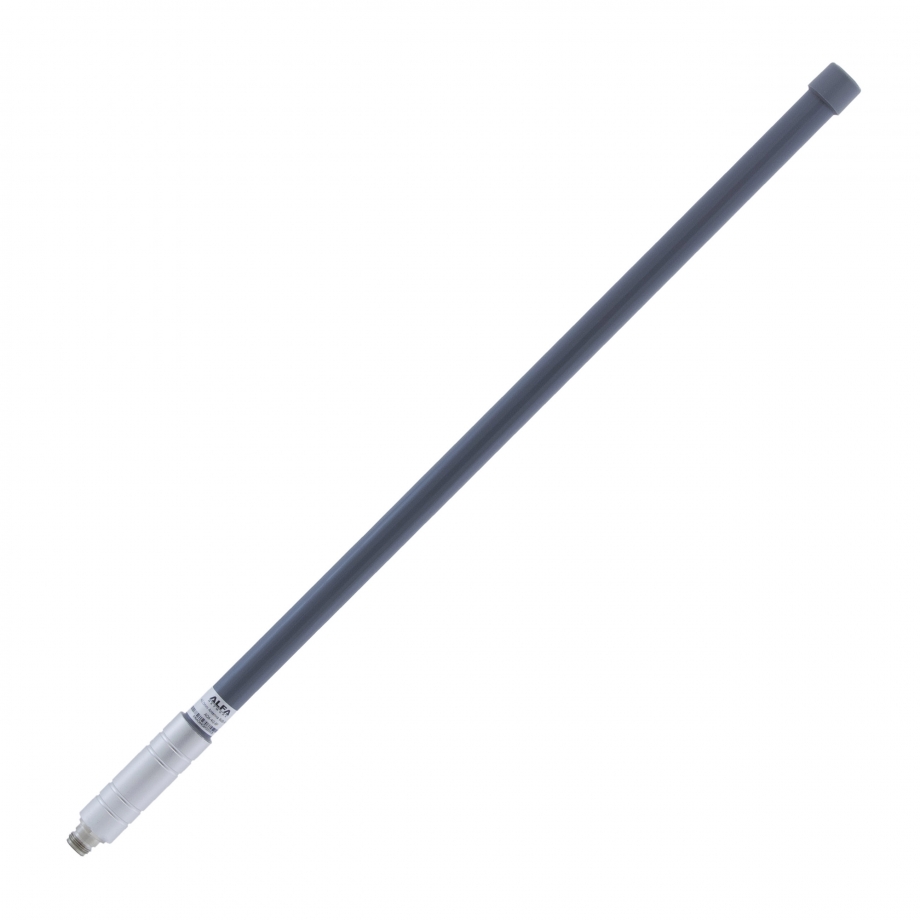

AOA-4G-8F ir visvirziena 4G/LTE antena no ALFA Network, kas paredzēta lietošanai ārpus telpām ar IP67 korpusa aizsardzību. Darbojas frekvenču joslā 698-960 MHz SISO 1x1 ar 6 dBi pastiprinājumu un 1710-2700 MHz SISO 1x1 ar 8 dBi pastiprinājumu. Aprīkota ar N Female tipa savienotāju.

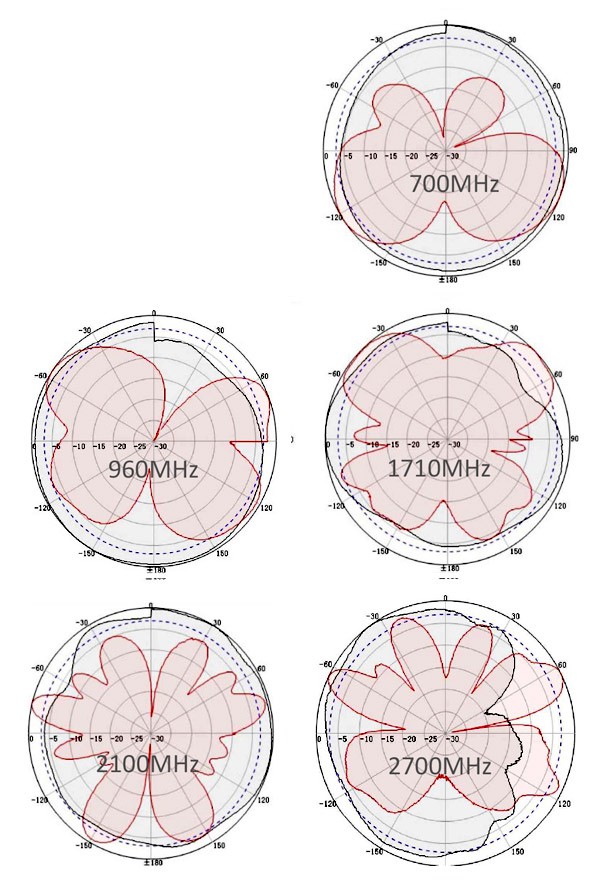

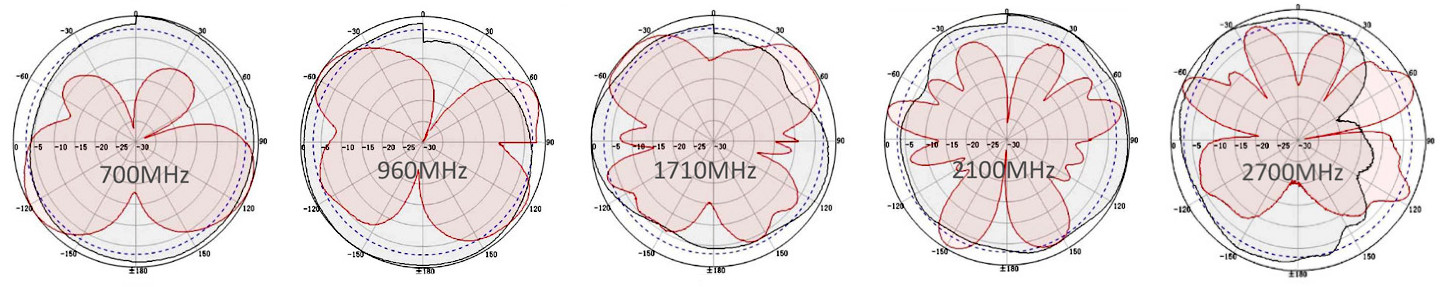

Frekvenču diagramma
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 6 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Mobilās antenas pastiprinājums
6 dBi, 8 dBi
Stara platums
18 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji
(1) N Male
Fiziskie parametri
Krāsa
Pelēks
Materiāls
Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
Ø20 x 600 mm
Svars
0.65 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra

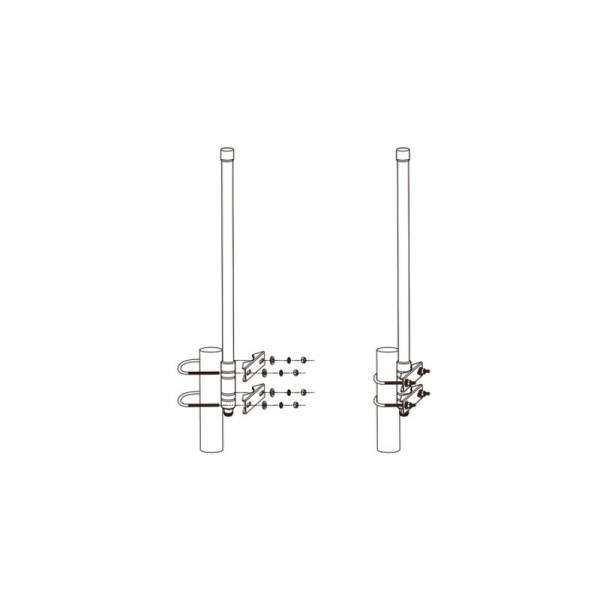

Montāžas veids
Pieļaujamais vēja ātrums
60 m/s
