Produkta nosaukums
Paraboliskā antena JRMC-680-10/11Ra
Garantija
?
24 mēneši
Ražotāja daļas nr
JRMC-680-10/11Ra
EAN numurs
8594070841882
Paraboliskā antena JRMC-680-10/11Ra Mimosa B11 un Ubiquiti AirFiber AF-11FX, 34–36 dBi
- 34–36 dBi paraboliskā antena 10,1–11,7 GHz sakariem, paredzēta augstas veiktspējas point-to-point savienojumiem 11 GHz joslā.
- Izstrādāta Mimosa B11 un Ubiquiti AirFiber AF-11FX iekārtām, lai bezvadu tilts būtu saderīgs un precīzs.
- Aizsargājošais radoms uzlabo noturību pret vēju un palīdz pasargāt no traucējumiem, nodrošinot uzticamāku lietošanu ārā.

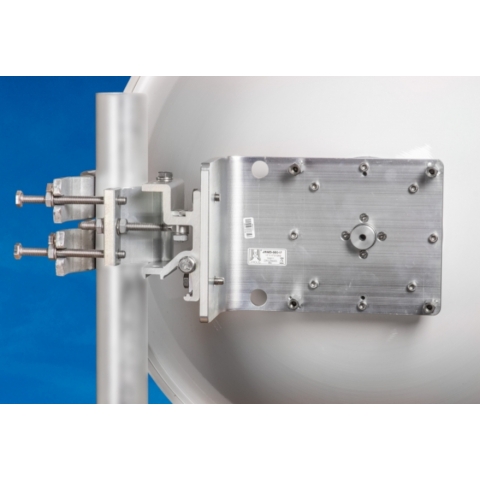

- Komplektā ir montāžas kronšteins precīzai regulēšanai 2 asīs, kas atvieglo uzstādīšanu un signāla virzīšanu.
- AirFiber AF-11FX radio modulim nepieciešams Jirous JXAF-11 adapteris; komplektā iekļauts radoms un kronšteins.
343.24 €
nav noliktavā
?
343.24 €
nav noliktavā
?
Pieejamas alternatīvas
Preces apraksts

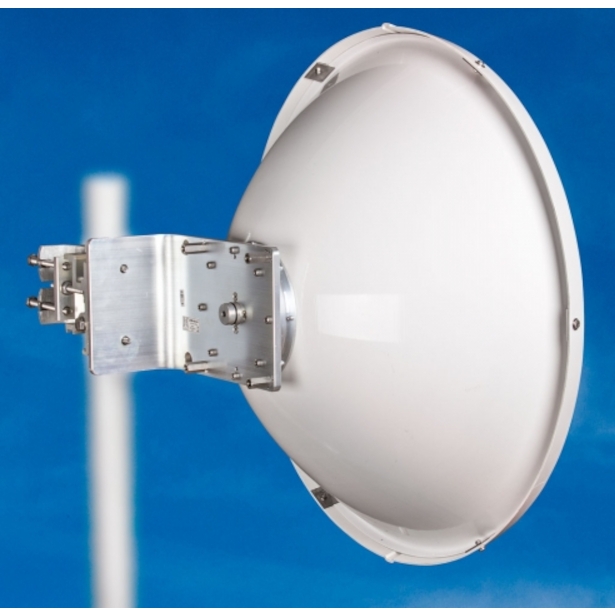

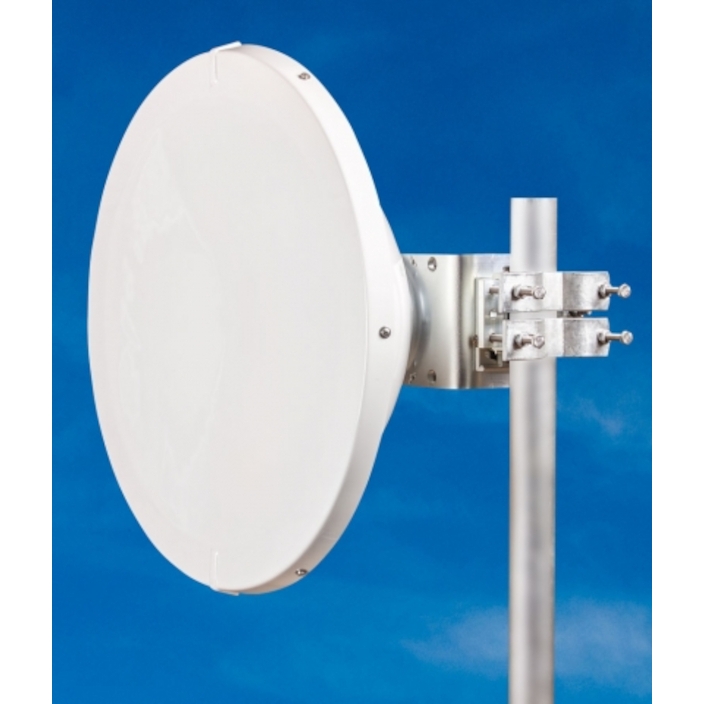

JRMC-680-10/11 ir paraboliskā antena ar 34-36 dBi pastiprinājuma koeficientu, kas paredzēta darbam 10,1 - 11,7 GHz frekvenču diapazonā. Antena ir īpaši izstrādāta lietošanai ar Mimosa B11 un Ubiquiti AirFiber AF-11FX iekārtām. Antenas plūdpārsegs atšķiras ar izturību pret vēja slodzi un nodrošina lielisku aizsardzību pret traucējumiem. Antena nāk komplektā ar plūdpārsegu un montāžas kronšteinu, kas nodrošina precīzu ierīces pozicionēšanu divos virzienos. Lai pieslēgtu AirFiber AF-11FX radio moduli, antena jāaprīko ar Jirous JXAF-11 adapteri.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Bezvadu tīkls
Frekvence
11GHz
Antena
Antenas dizains
Paraboliskā
Bezvadu antenas frekvences diapazons un pastiprinājums
10.0 - 12.0 (GHz) 36 (dBi)
Stara platums
3 °
Polarizācija
Lineāra, Vertikālā, Horizontālā
Priekšpuses/mugurpuses attiecība
> 61 dB
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa
Izmēri
Ø680 x 314 mm
Svars
6.5 kg
Vide
Āra
Montāžas veids
Pieļaujamais vēja ātrums
180 km/st
Iepakojumā iekļauts
Vienības
1 gab
Antenas aizsargs
Iekļauts
