Veiktspējas paaugstināšana

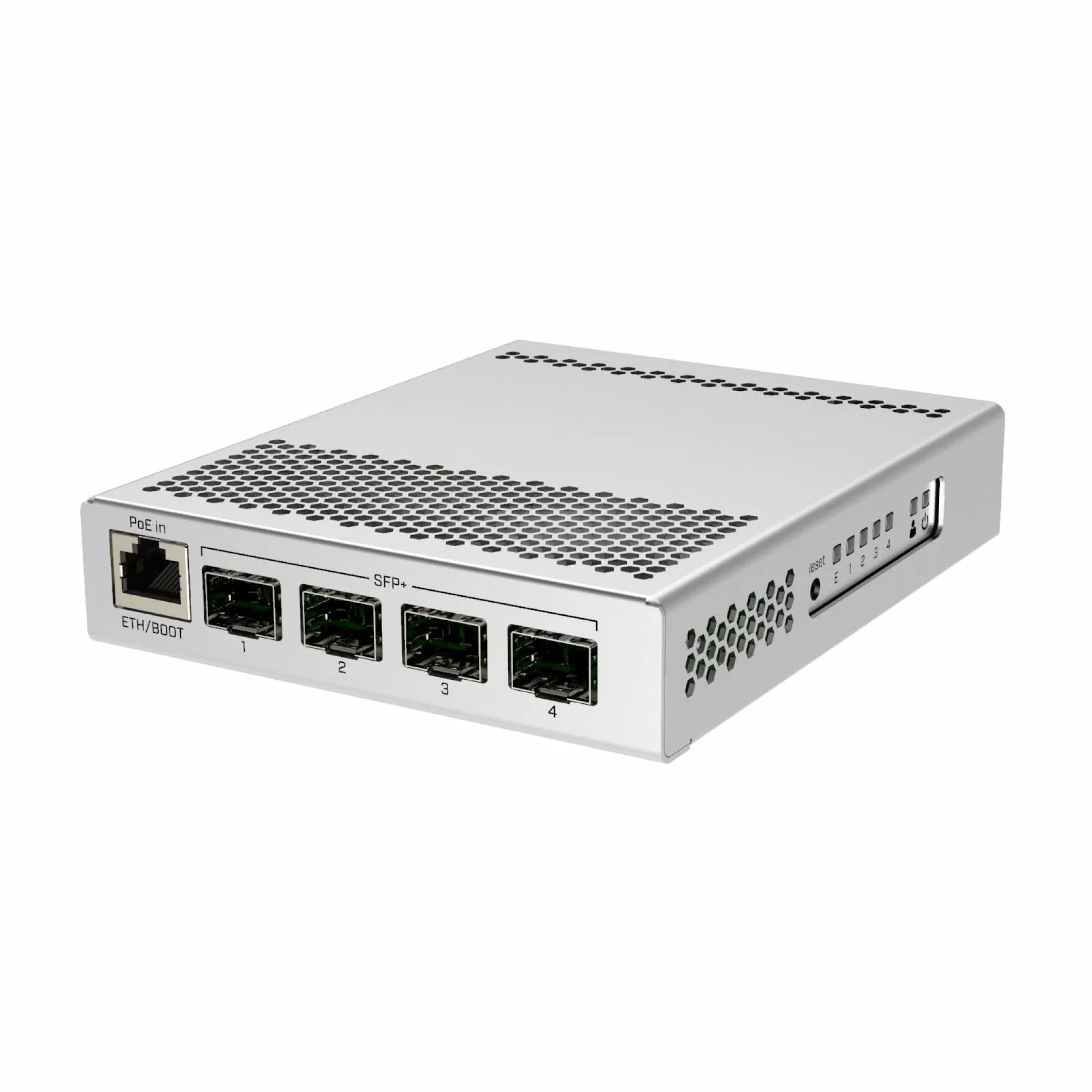

MikroTik CRS305-1G-4S+IN ir kompakts un uzticams komutators, kas palīdzēs uzlabot jūsu tīkla darbību, nodrošinot nepārtrauktu datu pārraidi un nodrošinot efektīvu tīkla pārvaldību. Komutators nodrošina nepārtrauktu un stabīlu tīkla darbību, minimizējot dīkstāves laiku.

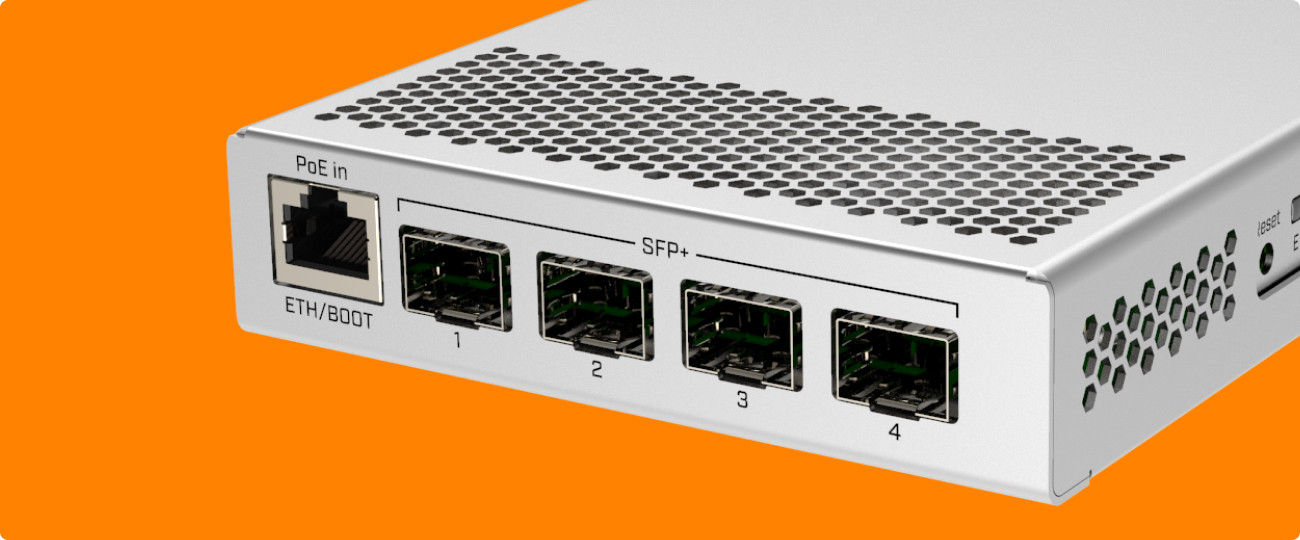

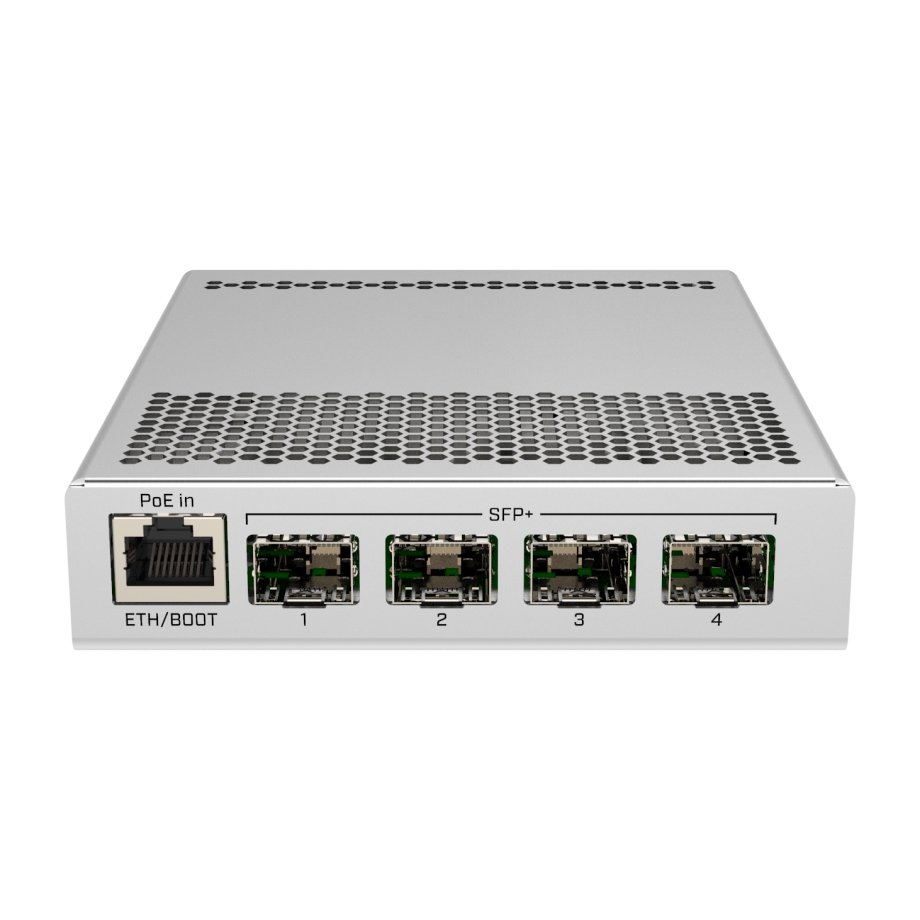

Pateicoties četriem SFP+ portiem, CRS305 nodrošina datu pārraides ātrumu līdz 10 Gbps uz katru portu, ļaujot jūsu tīklam bez grūtībām izpildīt resursietilpīgus uzdevumus. Turklāt atsevišķs Gigabit Ethernet ports nodrošina ērtu piekļuvi vadībai, garantējot pastavīgu kontroli pār tīkla darbību.
Funkcionalitāte un efektivitāte
CRS305 komutatoram ir 41 Gbps nebloķējamā caurlaidspēja un 82 Gbps komutācijas kapacitāte, kas ļauj jūsu tīklam darboties pat pie lielām slodzēm. Pateicoties 61 Mpps pakešu pārsūtīšanas ātrumam, dati tiek pārsūtīti nevainojami, nodrošinot stabilu tīkla efektivitāti.
Uzticamība ir svarīgākais nosacījums stabilai tīkla darbībai, un CRS305 to uzsver, piedāvājot divus līdzstrāvas savienotājus dublētajai barošanas padevei. Tas garantē, ka komutators turpinās darboties pat pie sprieguma svārstībām, nodrošinot nepārtrauktu tīkla darbību.
Universālais risinājums
CRS305 garantē ne tikai veiktspēju, bet arī lietošanas ērtumu. Komutators nav aprīkots ar ventilatoru, jo kā siltuma novadītājs kalpo metāla korpuss, tāpēc ierīce darbojas praktiski klusi un ideāli piemērota lietošanai telpās, kur nepieciešama klusuma ievērošana, piemēram, birojos, bibliotēkās un slimnīcās.
Pateicoties Dual Boot funkcijai, jums ir iespēja izvēlēties operētājsistēmu, kas atbilst jūsu preferencēm. Varat izvēlēties SwOS, ja dodat priekšroku vienkāršotam interfeisam, kas orientēts uz komutatora funkciju izmantošanu. Ja jums ir nepieciešama paplašināta maršrutēšana un trešā līmeņa iespējas, izvēlieties RouterOS.
Energoefektivitāte
Energoefektivitāte ir viena no galvenajām CRS305 komutatora prioritātēm, jo tas patērē mazāk nekā 12 W (18 W ar pieslēgtu aprīkojumu), vienlaikus nodrošinot augstu veiktspēju. Turklāt komutators atbalsta IEEE 802.3at/af PoE+ un pasīvo PoE režīmu (PoE 12-57 V), paplašinot izmantošanas iespējas.
Salīdzināt ar līdzīgiem produktiem
| | | | |
|---|
| Ethernet Ports | |
| |
| 1 x 1 Gbps
| 1 x SFP/ETH Combo 1 Gbps
| 1 x 1 Gbps
|
| SFP Ports | |
| |
| 4 x 10 Gbps
| 5 x 1.25 Gbps
| 8 x 10 Gbps
|
| RAM | |
| |
| 512 MB
| 128 MB
| 512 MB
|
| Storage Memory | |
| |
| 16 MB
| 16 MB
| 16 MB
|
| Chipset | |
| |
| 98DX3236, 1 core, 800 MHz
| QCA8511, 1 core, 400 MHz
| 98DX8208, 2 core, 800 MHz
|
| Max Power Consumption | |
| |
| 12 W
| 11 W
| 17 W
|
| Form Factor | |
| |
| Desktop
| Desktop
| Rack-mounted 19", Desktop
|
| Mounting Method | |
| |
| Tabletop
| Wall Mount, Tabletop
| RackMount, Tabletop
|
| | | | |
|---|
| Ethernet Ports | 1 x 1 Gbps
| 1 x SFP/ETH Combo 1 Gbps
| 1 x 1 Gbps
|
| SFP Ports | 4 x 10 Gbps
| 5 x 1.25 Gbps
| 8 x 10 Gbps
|
| RAM | 512 MB
| 128 MB
| 512 MB
|
| Storage Memory | 16 MB
| 16 MB
| 16 MB
|
| Chipset | 98DX3236, 1 core, 800 MHz
| QCA8511, 1 core, 400 MHz
| 98DX8208, 2 core, 800 MHz
|
| Max Power Consumption | 12 W
| 11 W
| 17 W
|
| Form Factor | Desktop
| Desktop
| Rack-mounted 19", Desktop
|
| Mounting Method | Tabletop
| Wall Mount, Tabletop
| RackMount, Tabletop
|
Tehniskās specifikācijas / Datu lapa
