Produkta nosaukums

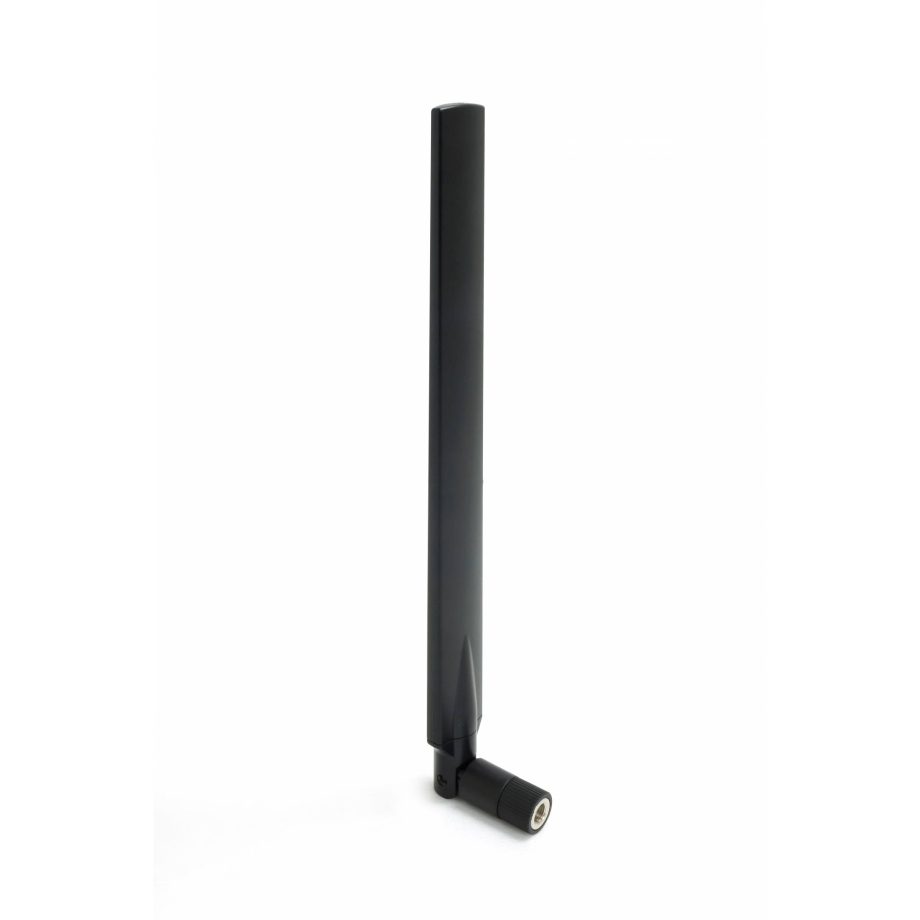

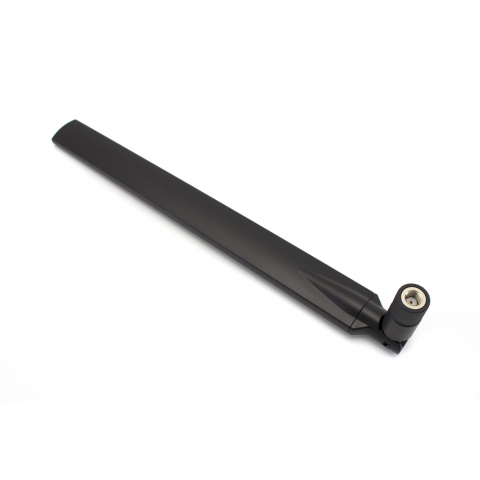

Alfa 2.4/5GHz iekštelpu antena 5/7dBi, RP-SMA Male
Garantija
?
24 mēneši
Ražotāja daļas nr
ARS-25-57A
EAN numurs
4718050306954
Alfa 2,4/5 GHz iekštelpu Wi‑Fi antena 5/7 dBi RP‑SMA vīrišķais savienotājs
Ir noliktavā
?
12.44 €
12.44 €
Preces apraksts
ARS-25-57A - ir divjoslu visvirzienu antena ar 5 dBi pastiprinājumu 2,4 GHz frekvenču joslā un 7 dBi pastiprinājumu 5 GHz frekvenču joslā. Antenu var izmantot ar jebkuru Wi-Fi adapteri vai bezvadu maršrutētāju, kas aprīkots ar RP-SMA savienotājiem. To var izmantot gan ar divjoslu, gan ar vienjoslu maršrutētāju vai adapteri. Antena ir saderīga ar visiem Wi-Fi standartiem, tostarp 802.11a, b, g, n un jaunāko 802.11ac standartu.

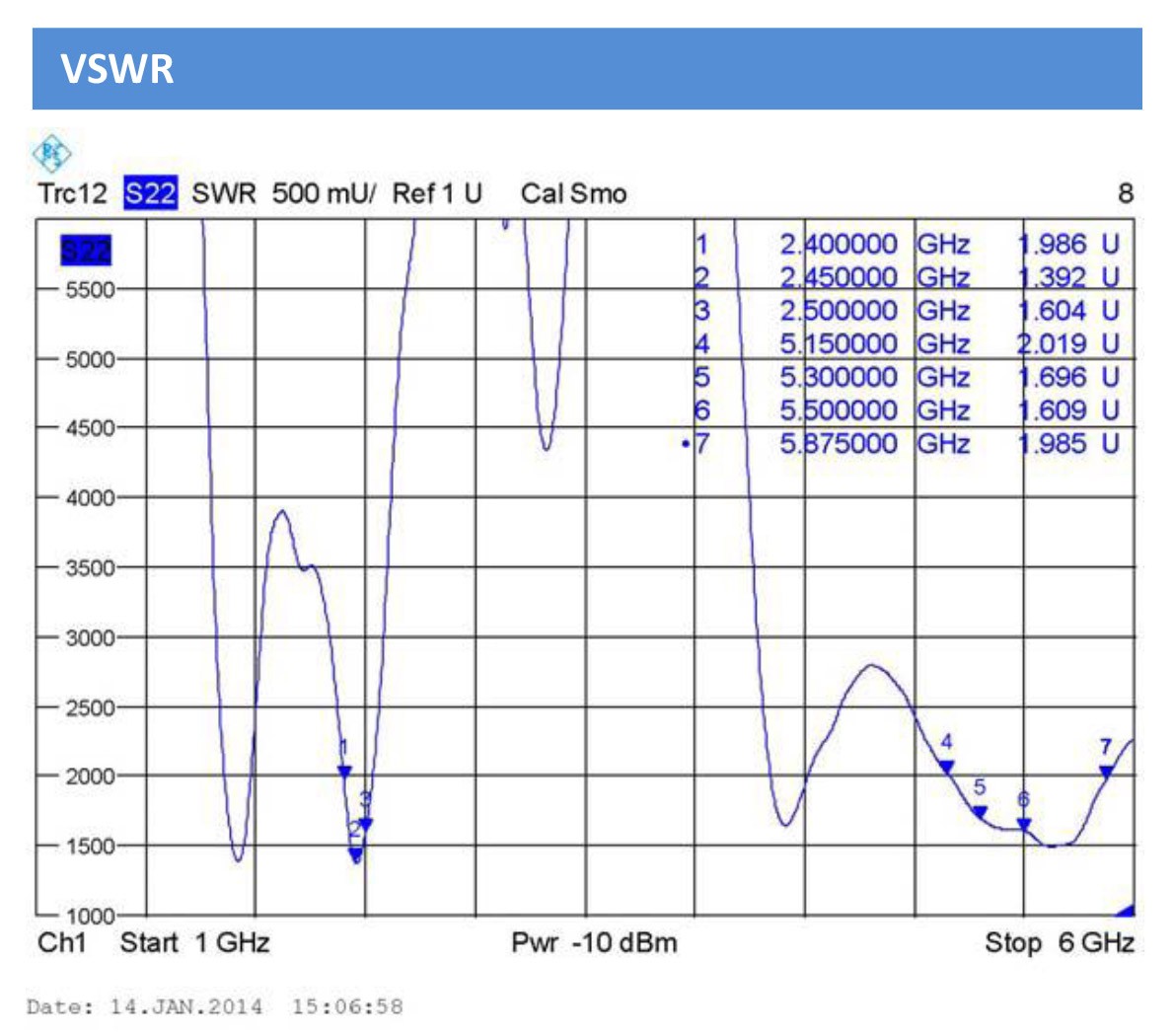

VSWR
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.483 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 7 (dBi)
Stara platums
360 ° Vertikāli
VSWR
< 2.5
Pretestība
50 Ω
Konnektori
RF savienotāji

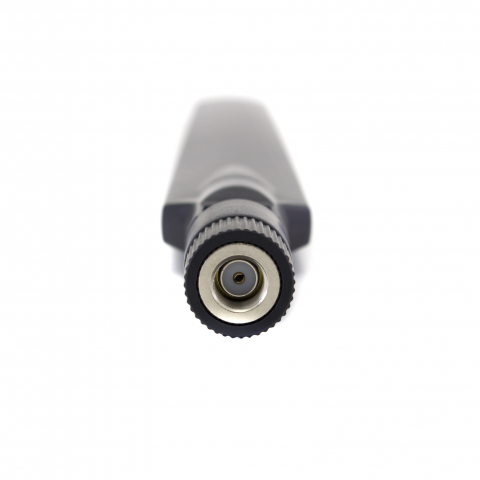

(1) RP-SMA Male
Fiziskie parametri
Izmēri
Ø18.5 x 231 mm
Darbības temperatūra
-10 °C līdz 55 °C
Kopā ar preci bieži perk
Piegāde
Piegāde Latvijā vienas darba dienas
laikā. Piegāde pakomātos un
saņemšanas punktos visā Latvijā.
Sūtījumu izsūtīšana katru darba dienu
24 stundu laikā.
Pasūtījuma apmaksa
Ātri un droši maksājumi ar kredītkarti.
Bankas pārskaitījums.
Individuālie piedāvājumi vairumtirgotājiem.
Garantija un atgriešana
Preču atgriešanas garantija
30 dienu laikā pēc saņēmšanas.
Preču garantijas, atgriešanas, apmaiņas un remonta statuss tiešsaistē.
Ir pieejamā pagarinātā garantija.
Atsauksmes un vērtējums
Preces vērtējums
