Zīmols
Ražotāja daļas nr
PR1KS536
Garantija
?
24 mēneši
EAN numurs
4779051840649
Teltonika 5G Mobile Magnetic SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
12.00 €
12.00 €
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts
Nevainojams 5G pārklājums

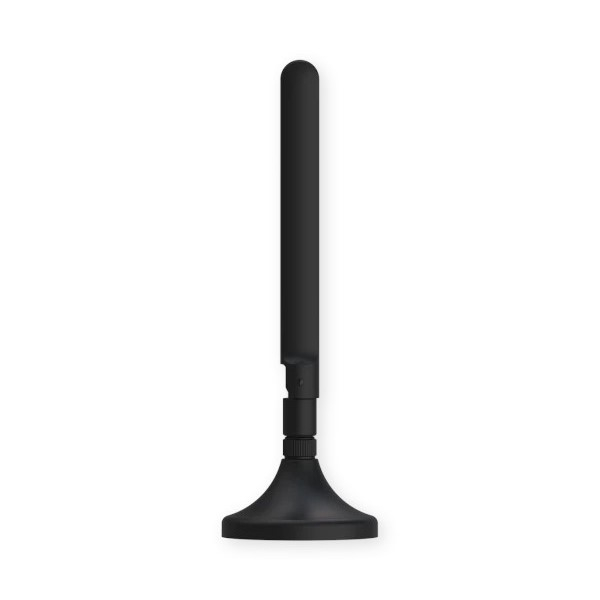

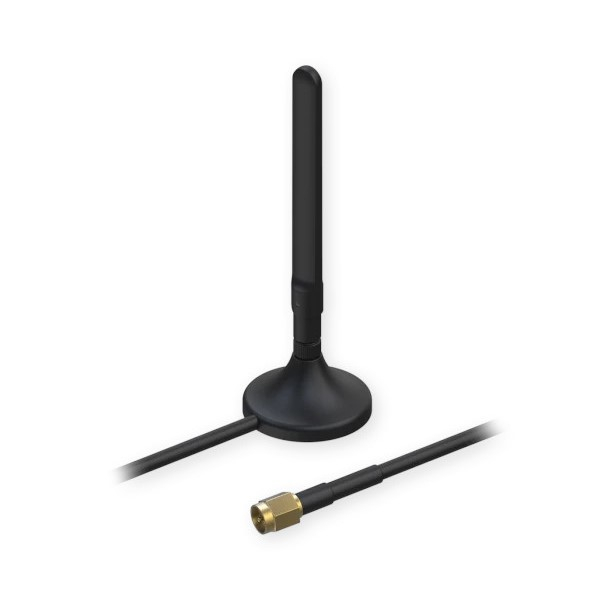

Teltonika 5G Mobile Magnetic SMA antena ir augstas veiktspējas visvirzienu antena, kas paredzēta lietošanai ar 5G mobilajām ierīcēm. Antenas pastiprinājuma koeficients ir 3.6 dBi, kas nodrošina spēcīgu signāla uztveršanu pat vietās ar vāju signāla līmeni. Tādējādi šī antena ir universāls risinājums izmantošanai dažādās lietojumprogrammās, piemēram, mobilajos platjoslas sakaros, IoT un M2M komunikācijās.
Pateicoties magnētiskajai pamatnei, antenu ir ļoti viegli uzstādīt. To var piestiprināt pie jebkuras metāla virsmas. PR1KS536 ir aprīkota arī ar 3 m garu kabeli, kas ļauj to novietot vispiemērotākajā vietā optimālai signāla uztveršanai. Antena ir izturīga pret atmosfēras iedarbību un tai ir IP33 aizsardzības klase, kas nodrošina izturību pret putekļiem un ūdens šļakatām.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.617 - 0.960 (GHz) 3.6 (dBi), 1.40 - 2.69 (GHz) 3.6 (dBi), 3.30 - 5.90 (GHz) 3.6 (dBi)
Mobilās antenas pastiprinājums
3.6 dBi, 3.6 dBi, 3.6 dBi
Polarizācija
Lineāra
Kabeļa garums
3 m
VSWR
< 3.5
Pretestība
50 Ω
Konnektori
RF savienotāji

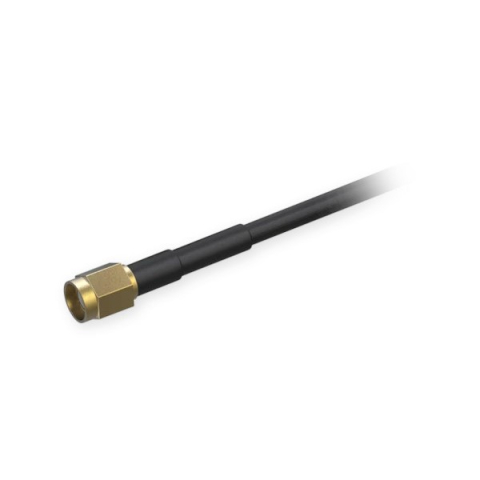

(1) SMA Male
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP33
Svars
0.15 kg
Darbības temperatūra
-20 °C līdz 65 °C
Vide
Iekštelpu
Montāžas veids
Magnētisks
Iepakojumā iekļauts
Vienības
1 gab
