Produkta nosaukums
QuPanel LTE High Power SISO, 5m kabelis
Garantija
?
24 mēneši
Ražotāja daļas nr
APLS1-H
EAN numurs
5907772035313

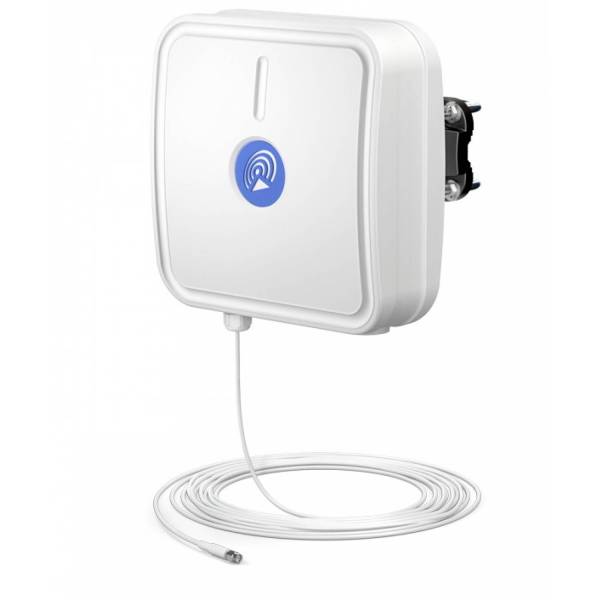

QuPanel LTE High Power SISO antena, 5 m kabelis | Virziena augstas pastiprināšanas 4G/3G/2G antena
- Virziena LTE antena ar lielu pastiprinājumu uzlabo 4G signālu vietās ar vāju pārklājumu laukos un piepilsētā; saderīga arī ar 3G un 2G tīkliem.
- Plašs daudzjoslu atbalsts LTE700/800/1800/1900/2100/2300/2600 padara šo SISO antenu par universālu izvēli LTE rūteriem un modemiem.

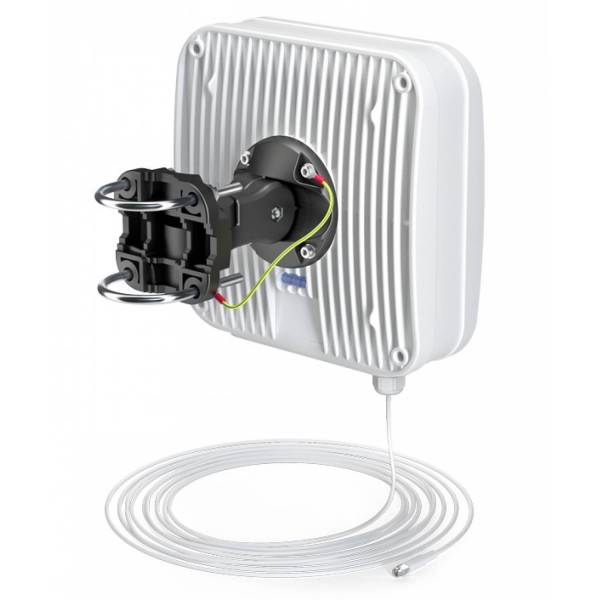

- Paredzēta montāžai uz ēkas, masta vai sienas; 5 m kabelis nodrošina elastīgu novietojumu un labāku signāla optimizāciju.
- Saderīga ar Teltonika RUT230, TRB140, TRB141, TRB142, TRB145, TRM240 un TRM250, kā arī citiem SISO LTE/3G/2G iekārtām.
- Uzticams virziena antenas risinājums mobilā interneta uzlabošanai vāja signāla zonās – mājām, birojam un attālām vietām.
-17% 93.82 €
77.44 €
nav noliktavā
?
-17% 93.82 €
77.44 €
nav noliktavā
?
Preces apraksts
Virziena LTE SISO daudzjoslu antena
Virziena antena QuPanel LTE HP ar lielu pastiprinājumu ir galvenokārt paredzēta 4G LTE, bet ir saderīga arī ar 3G un 2G. Antena uzlabo signālu lauku/piepilsētu rajonos un vietās ar vāju mobilo signālu. Šī antena ir paredzēta uzstādīšanai uz ēkām (uz staba vai sienas).
Pateicoties ļoti plašajam darbības frekvenču diapazonam, antena ir universāla ierīce LTE joslām, piemēram, LTE700/ 800/ 1800/ 1900/ 2100/ 2300/ 2600. Saderīga ar Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 un citiem SISO LTE/3G/2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.7 (GHz) 7 (dBi)
Stara platums
70 ° Vertikāli, 70 ° Horizontāli
Kabeļa garums
5 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Balts
Materiāls
Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
276 x 272 x 96 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
