Produkta nosaukums
Alfa 2.4/5GHz āra antena 7/9dBi N-Female
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-2458-79AF
EAN numurs
4718050307005

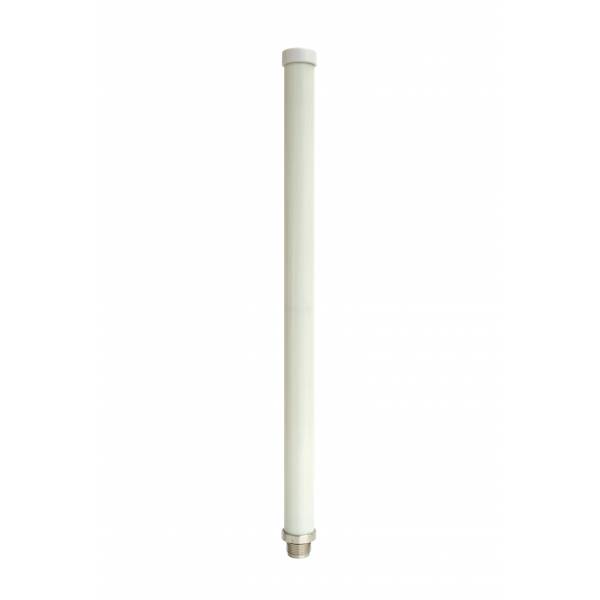

Alfa 2.4/5GHz āra antena 7/9dBi N-Female
Ir noliktavā
?
19.87 €
19.87 €
Preces apraksts
Alfa AOA-2458-79AF ir divjoslu daudzvirzienu Wi-Fi antena ar N-veida savienotāju par pieejamu cenu. Pastiprinājuma koeficients 5GHz frekvenču diapazonā ir 9 dBi, bet 2,4 GHz diapazonā pastirpinājums ir 7 dBi. Antenas korpuss atbilst aizsardzības klasei IP67, kas ļauj izmantot ierīci nelabvelīgos laikapstākļos. Pateicoties ūdensizturīgajam N-veida savienotājam, šo antenu var tieši pievienot jebkurai āra WiFi ierīcei.

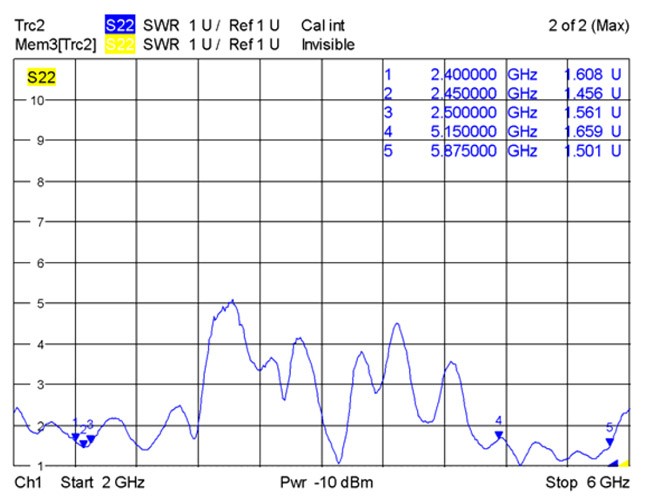

VSWR

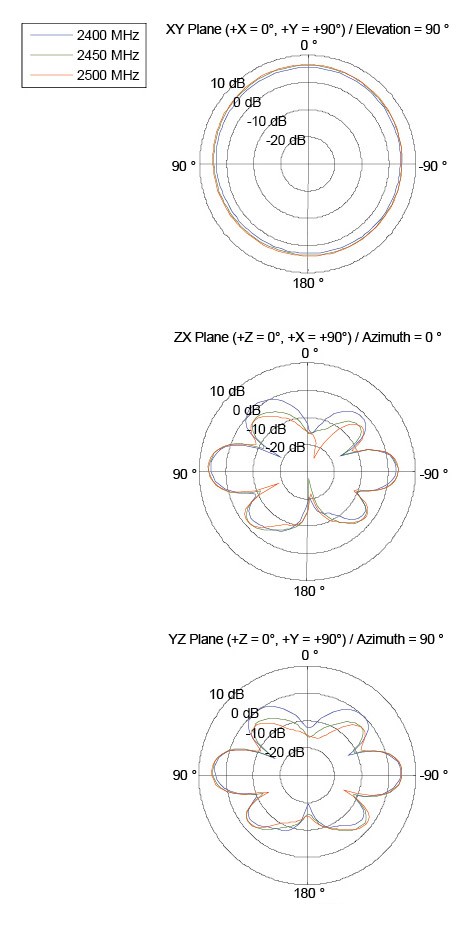

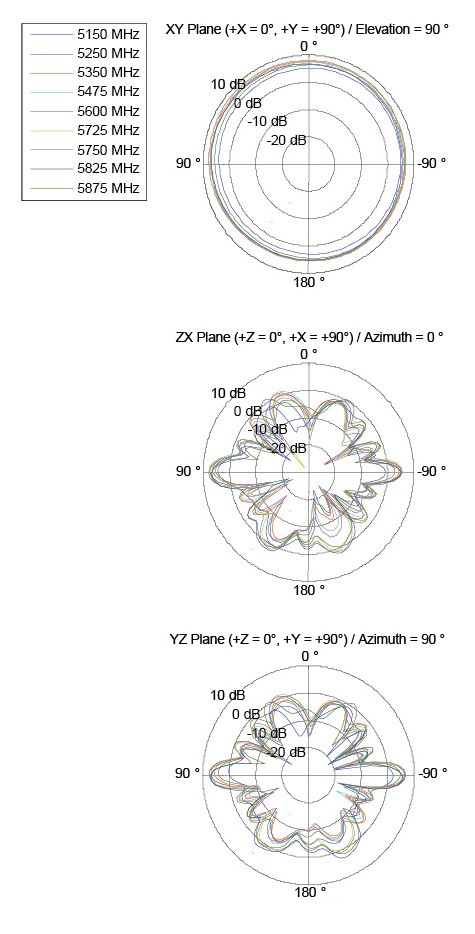

Frequency Diagram
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.400 - 2.483 (GHz) 7 (dBi), 5.150 - 5.875 (GHz) 9 (dBi)
Stara platums
360 ° Vertikāli
Polarizācija
Lineāra
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) N Female
Fiziskie parametri
Izmēri
Ø22 x 317 mm
Darbības temperatūra
-40 °C līdz 85 °C
