Zīmols
Ražotāja daļas nr
RX09S
Garantija
?
24 mēneši
EAN numurs
5907772035269

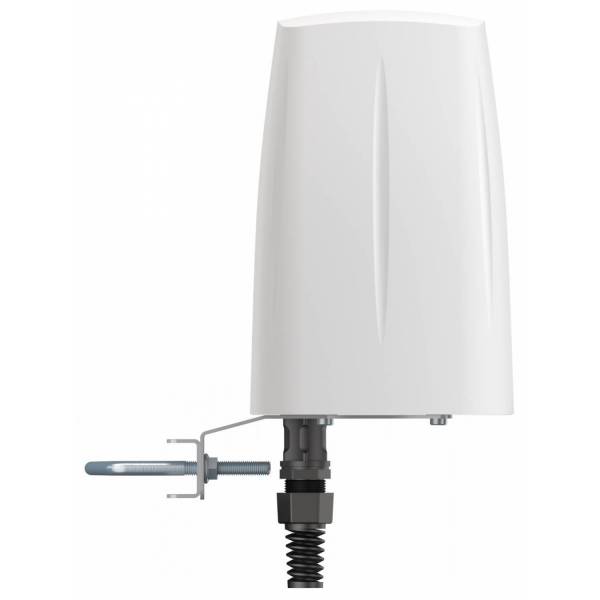

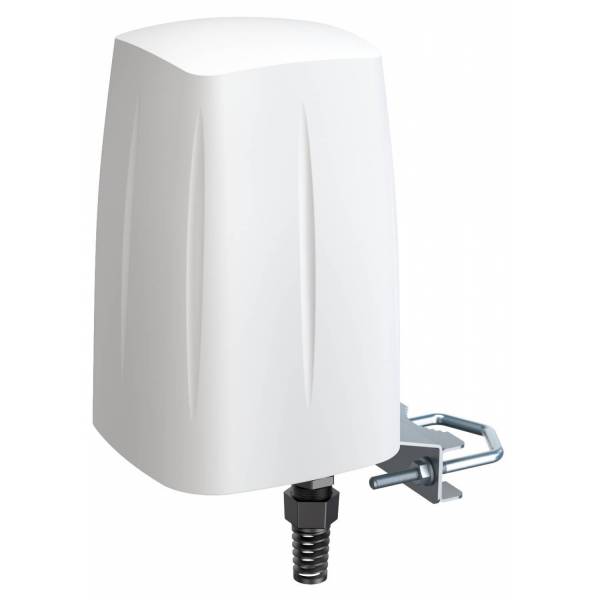

QuRouter X09S (Antenna with Intergated Tetltonika RUTX09)
ir noliktavā
?
-26% 474.36 €
353.32 €
-26% 474.36 €
353.32 €
Preces apraksts

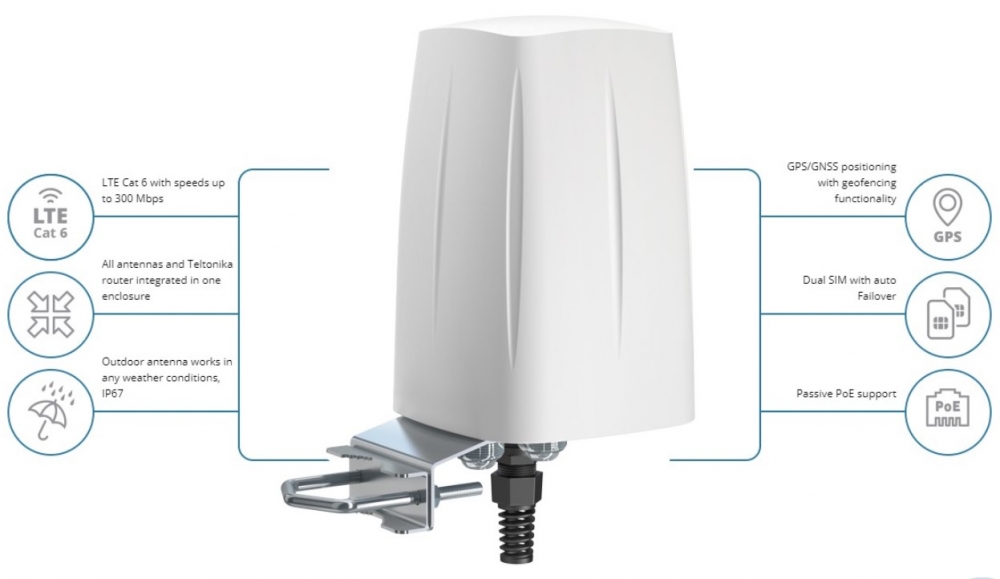

QuRouter X09S ir izturīgs LTE Cat 6 āra maršrutētājs ar iebūvētu GNSS/GPS moduli. Tas ir aprīkots ar diviem SIM karšu slotiem ar iespēju pārslēgties, ja tiek zaudēts 4G savienojums. Ierīce ir aprīkota ar daudzvirzienu LTE MIMO 2x2 antenu un GPS antenu. Šī ierīce ir ideāli piemērota sarežģītiem lietojumiem rūpniecībā un uzņēmumos. Četrkodolu 717 MHz ARM Cortex A7 procesors un 256 MB DDR3 RAM nodrošina nepārtrauktu VPN datu vākšanu.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
LTE kategorija
Cat6 - 300Mbps/50Mbps
FDD LTE frekvenču joslas
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE frekvenču joslas
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM kartes slots
Dual SIM
Antena
Antenas dizains
Kupola
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
360 °, 35 ° Vertikāli
Polarizācija
Vertikālā
VSWR
< 2.0
Pretestība
50 Ω
Sistēmas specifikācija
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM atmiņas apjoms
256 MB
Iebūvētās atmiņas apjoms
256 MB
Elektroapgāde
Enerģijas veids
24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 50 V DC
Maksimālais enerģijas patēriņš
9 W
Barošanas savienotājs
4-pin, 3 mm
Fiziskie parametri
Krāsa
Balts
Materiāls
Cinkots tērauds, Alumīnijs, ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

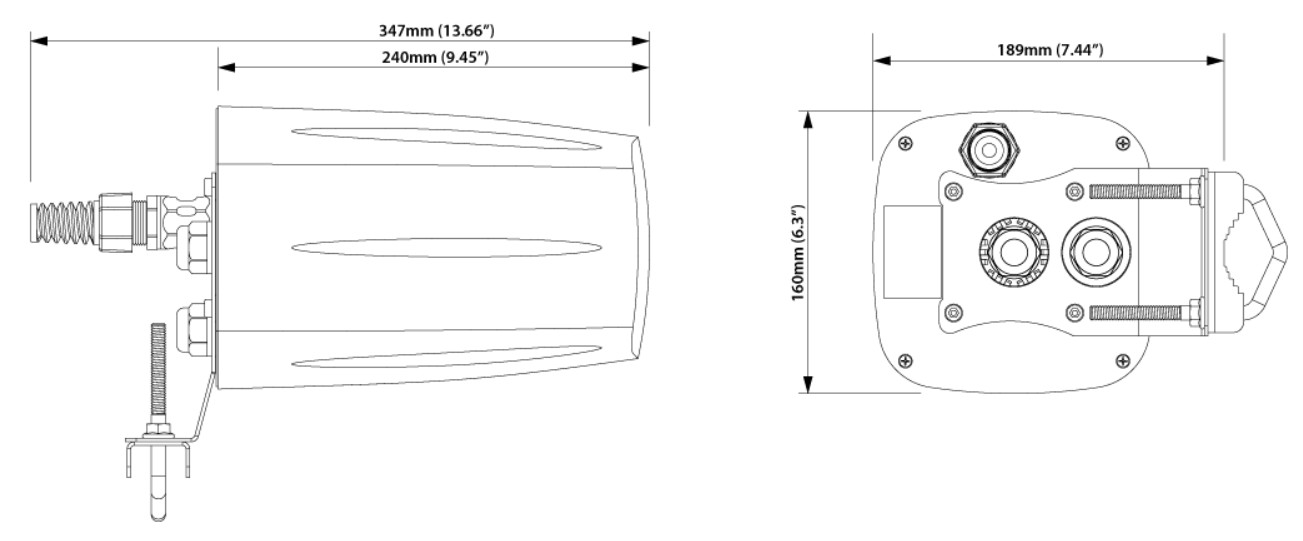

Izmēri
160 x 160 x 240 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
