Zīmols
Ražotāja daļas nr
PR1KCL25
Garantija
?
24 mēneši
EAN numurs
0708747439793

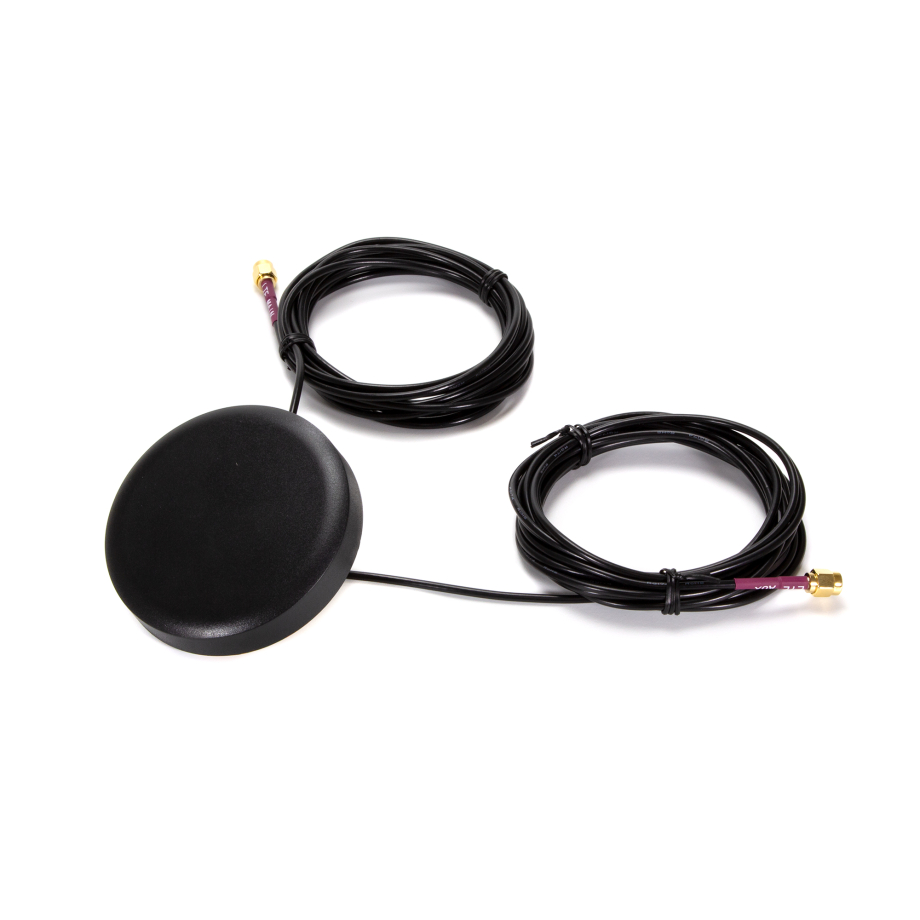

Teltonika Combo MIMO mobilā jumta antena, 3m
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
15.11 €
15.11 €
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts
PR1KCL25 ir antena ar SMA Male savienotājiem, kas darbojas 698-960 / 1710-2690 MHz frekvenču joslās ar maksimālo pastiprinājumu 2,5 dBi. Tā ir lineāri polarizēta antena ar 50 Ohm pretestību. Antena ir aizsargāta pret putekļiem un ūdeni atbilstoši IP65 standartam. PR1KCL25 ir aprīkota ar diviem RG174 augstfrekvences koaksiālajiem kabeļiem. Katrs kabelis ir 3 m garš. Stiprinājuma metode: skrūvējama.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Jumta
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 2.5 (dBi), 1.710 - 2.690 (GHz) 2.5 (dBi)
Polarizācija
Lineāra
Kabeļa garums
3 m
VSWR
< 3.0
Pretestība
50 Ω

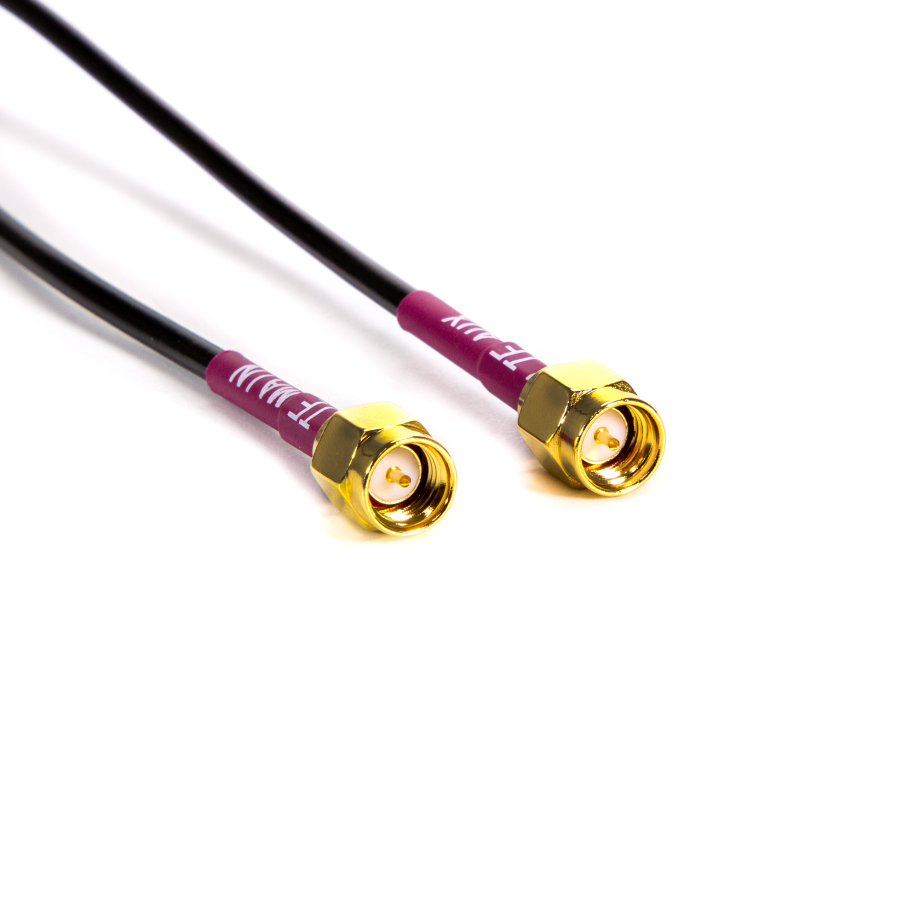

Konnektori
RF savienotāji
(1) SMA Male, (1) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

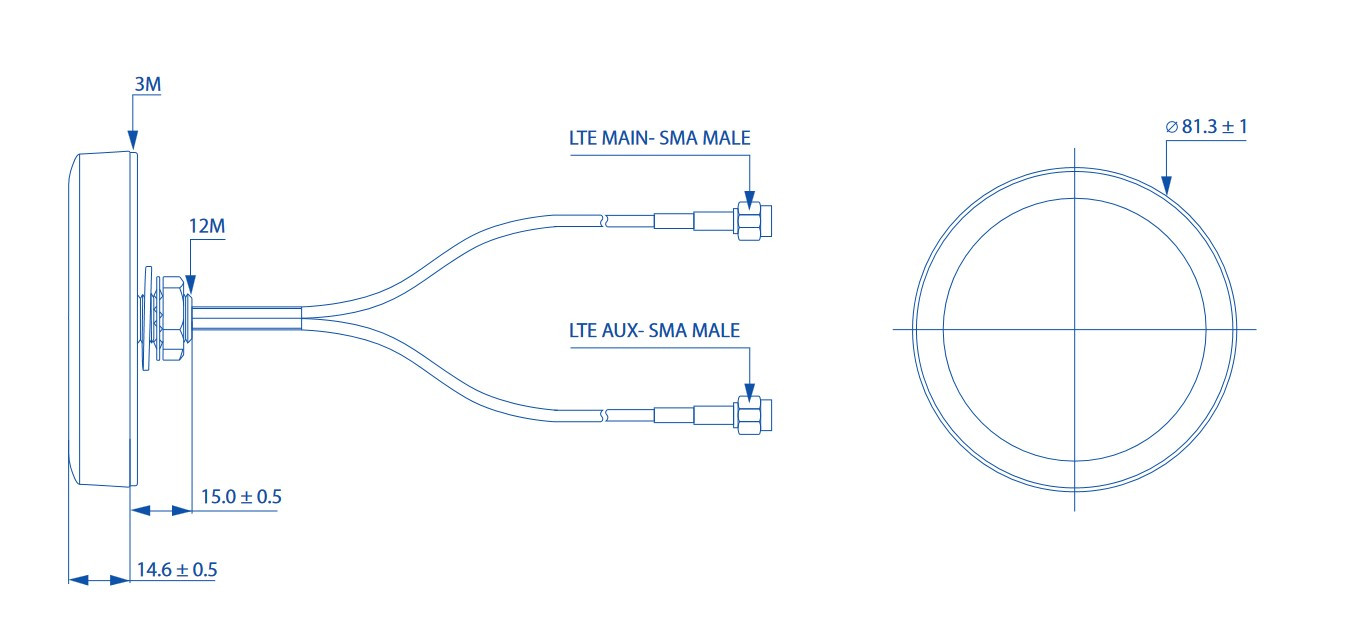

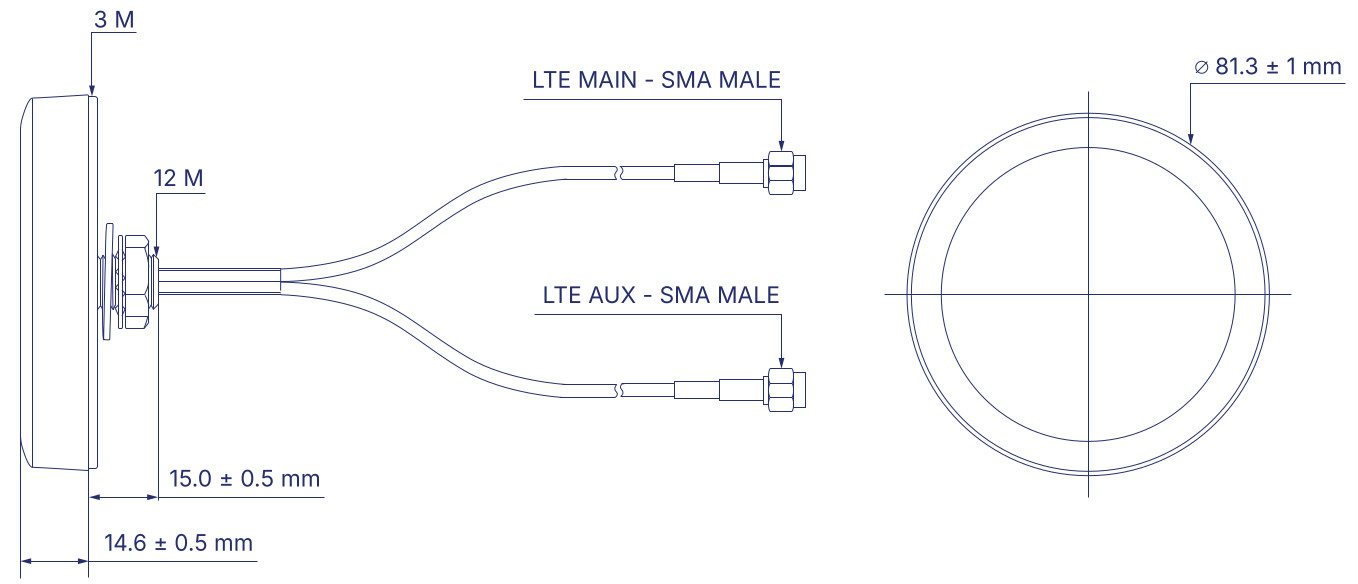

Izmēri
Ø85 x 15 mm
Svars
0.25 kg
Vide
Āra

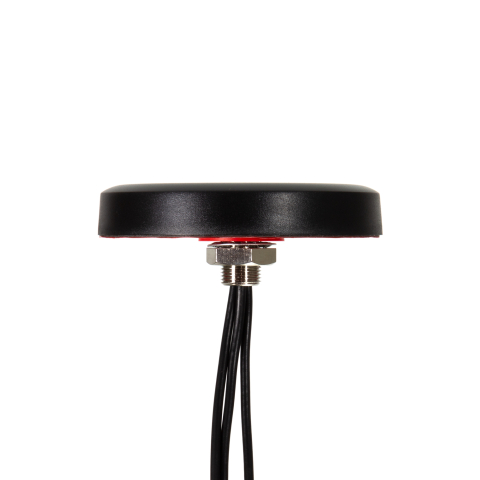

Montāžas veids
Pieskrūvēt
