Zīmols
Ražotāja daļas nr
PR1KCS28
Garantija
?
24 mēneši
EAN numurs
04251876873397

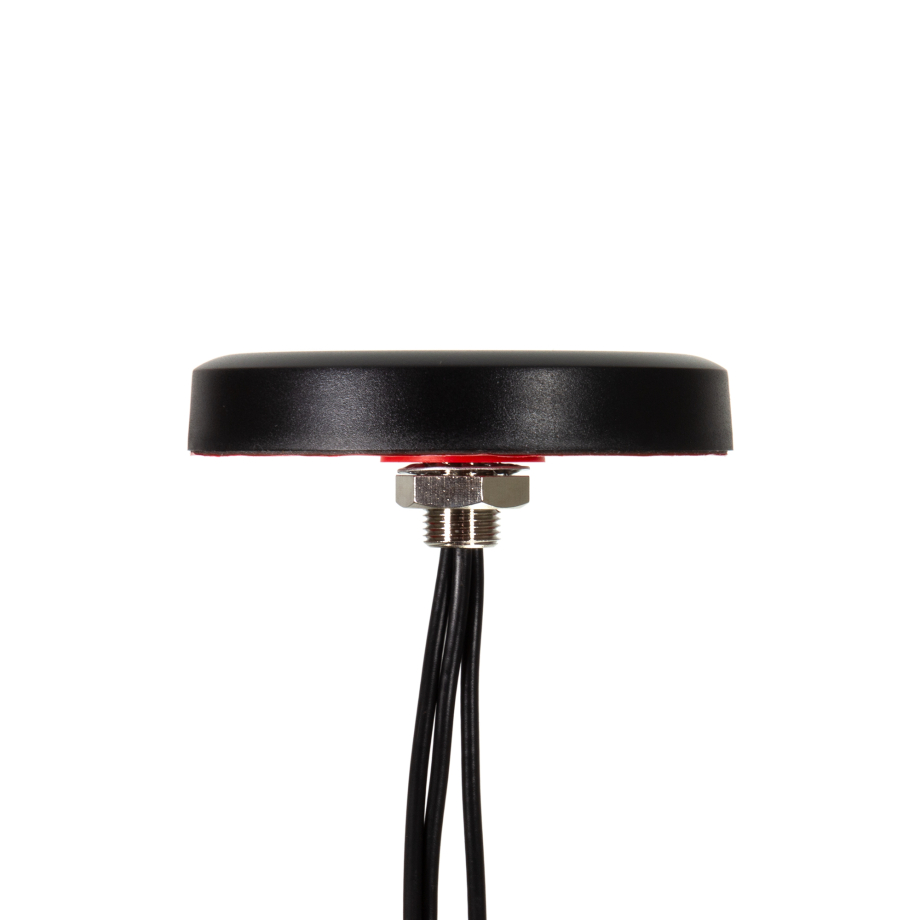

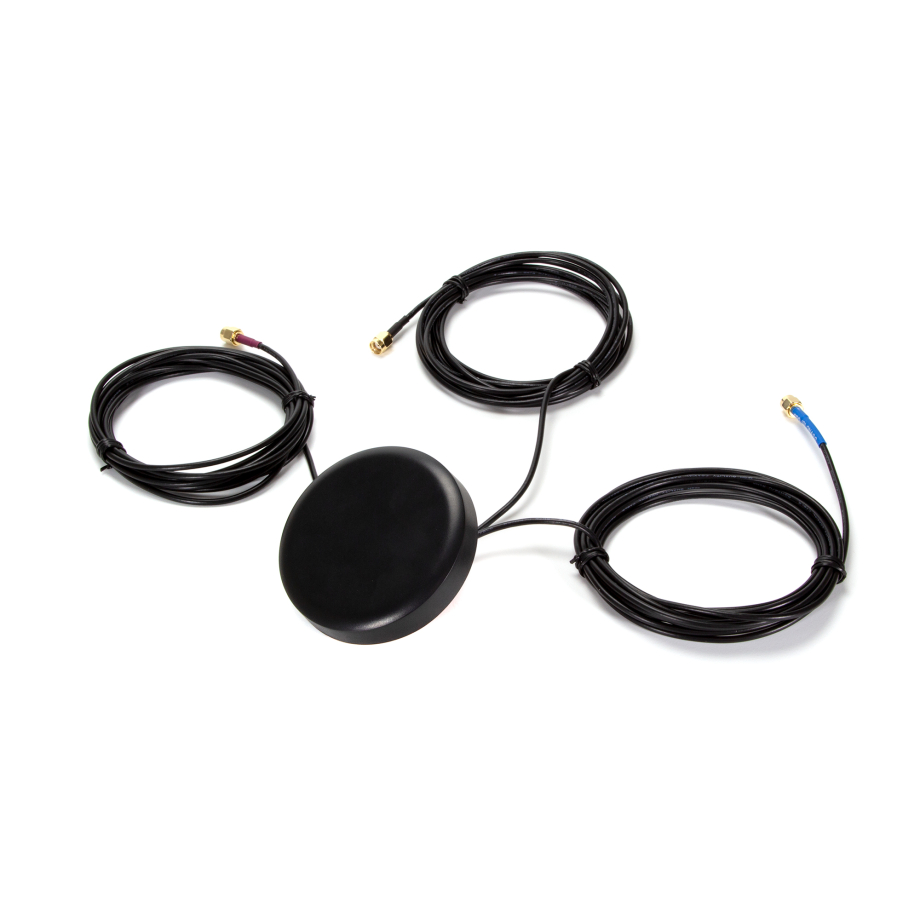

Teltonika LTE/GNSS/Wi-Fi Combo SISO jumta antena 3m
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
-21% 18.31 €
14.44 €
-21% 18.31 €
14.44 €
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts
PR1KCS28 ir kombinēta GNSS + LTE + Wi-Fi SISO antena. GNSS antenas darbības frekvenču diapazons ir 698-960 / 1710-2690 MHz. LTE antena darbojas frekvenču diapazonā 850 / 900 / 1800 / 1900 / 2170 MHz ar 3.5 dBi pastiprinājumu, bet Wi-Fi antena darbojas 2350-2500 MHz diapazonā ar 2.5 dBi pastiprinājumu. Antena ir putekļu un ūdensizturīga atbilstoši standartam IP65. PR1KCS28 ir aprīkota ar trim RG174 augstfrekvences koaksiālajiem kabeļiem. Katrs kabelis ir 3 m garš. Stiprinājuma metode: skrūvējama.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Jumta
Bezvadu antenas frekvences diapazons un pastiprinājums
2.350 - 2.500 (GHz) 2.5 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.850 - 2.170 (GHz) 3.5 (dBi)
Mobilās antenas pastiprinājums
3.5 dBi
Stara platums
360 ° Vertikāli
GPS antenas frekvences diapazons un pastiprinājums
1575.42 MHz 2 dBic (Zenith)
Kabeļa garums
3 m
VSWR
< 1.5
Pretestība
50 Ω
Konnektori
RF savienotāji

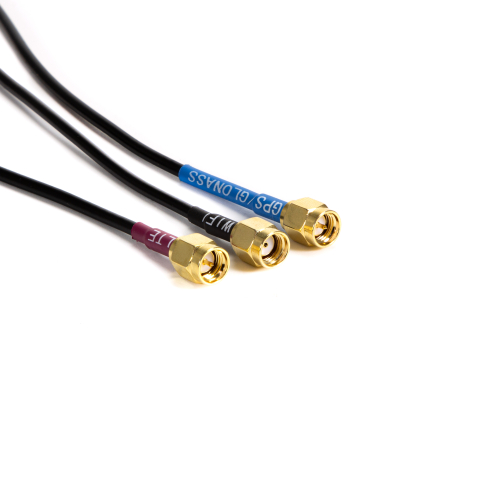

(2) SMA Male, (1) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

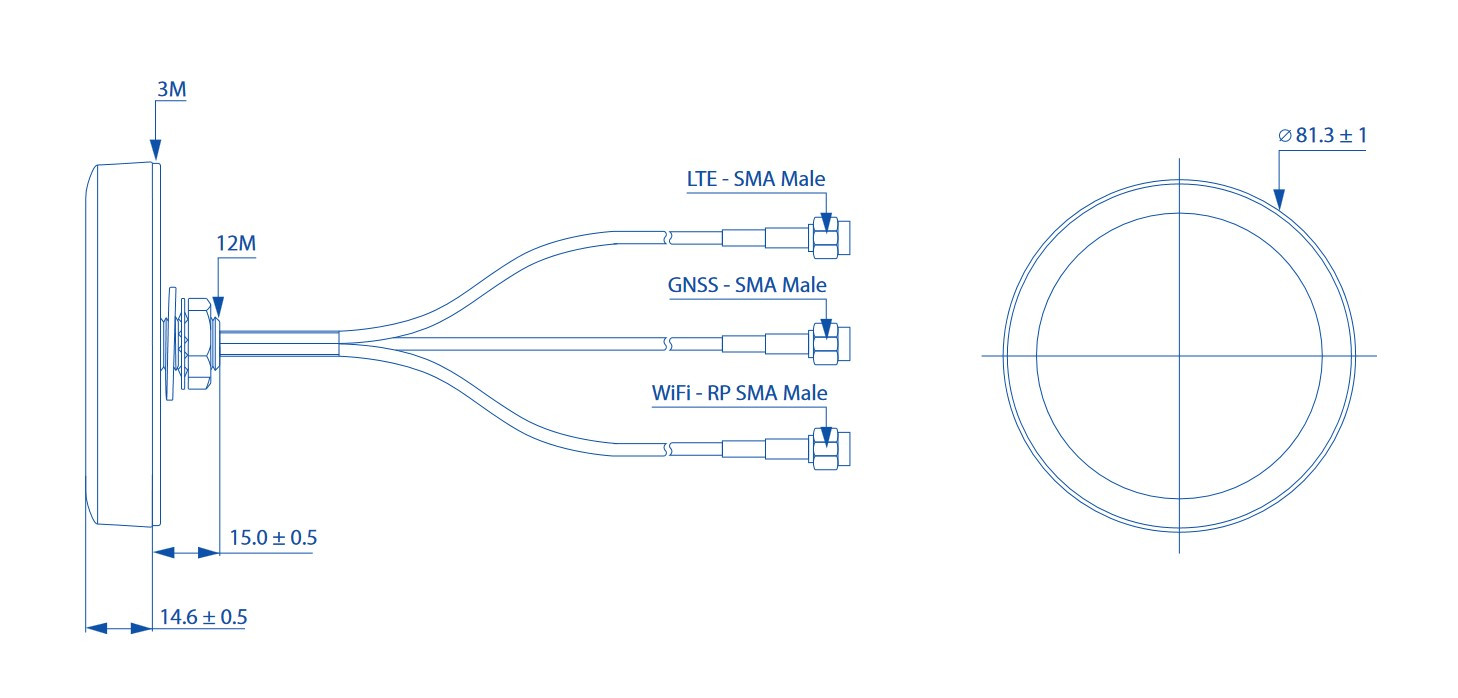

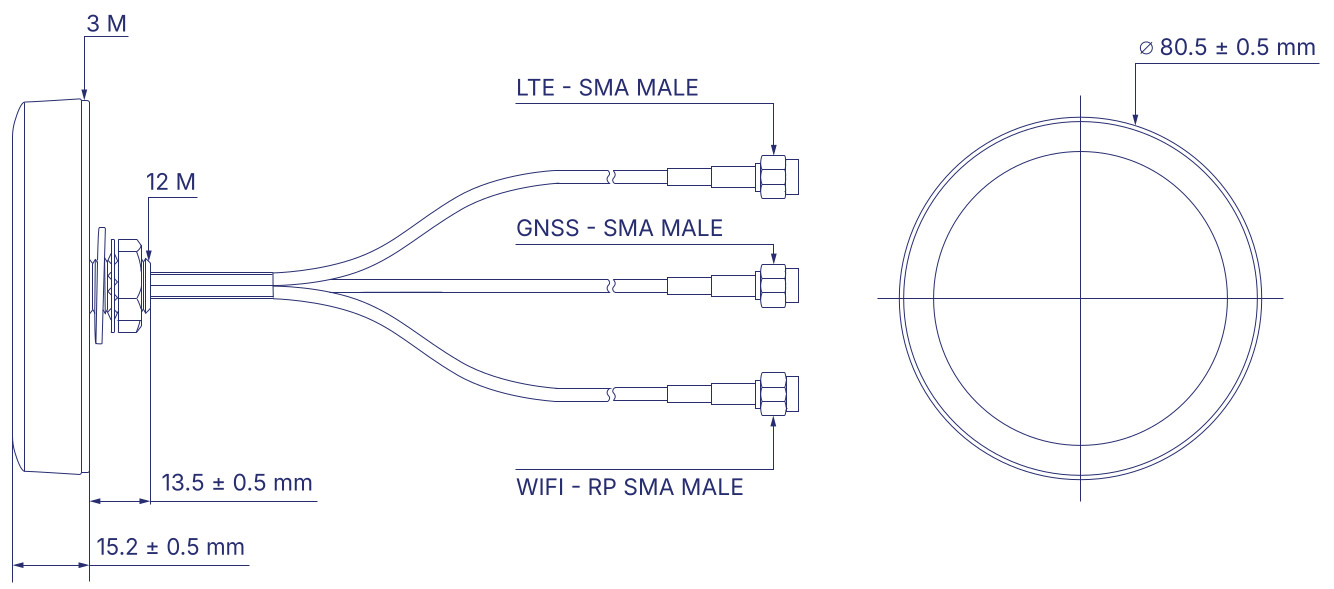

Izmēri
Ø85 x 15 mm
Svars
0.25 kg
Vide
Āra
Montāžas veids
Pieskrūvēt
