Produkta nosaukums

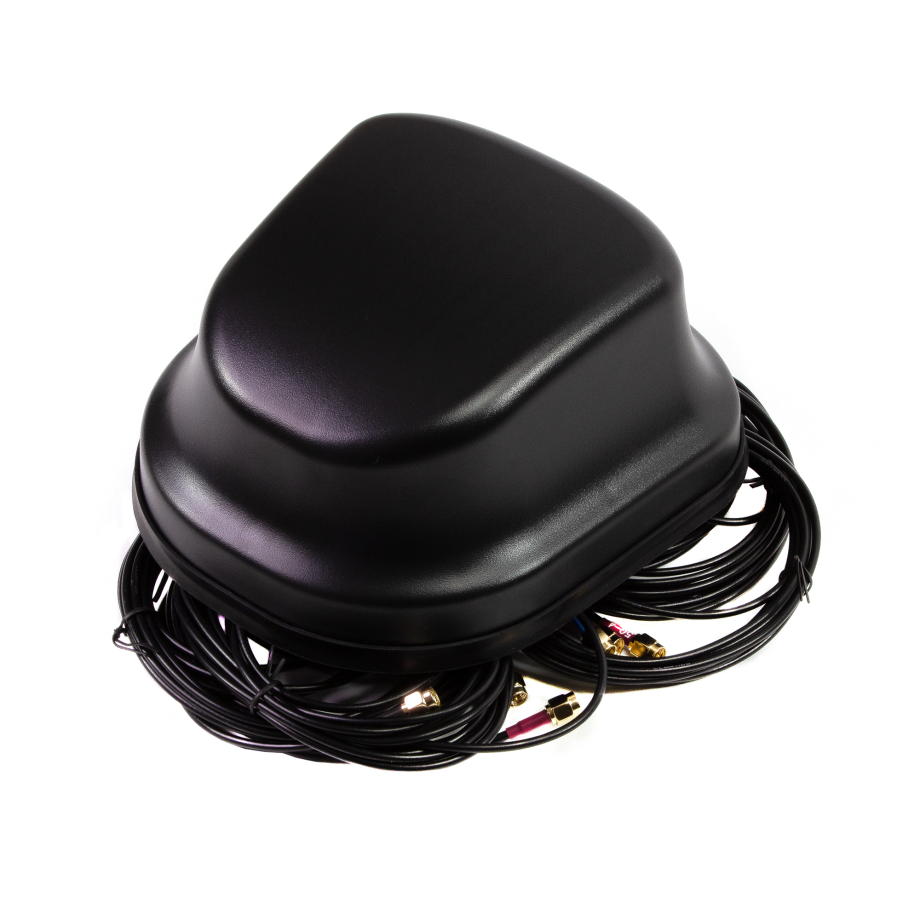

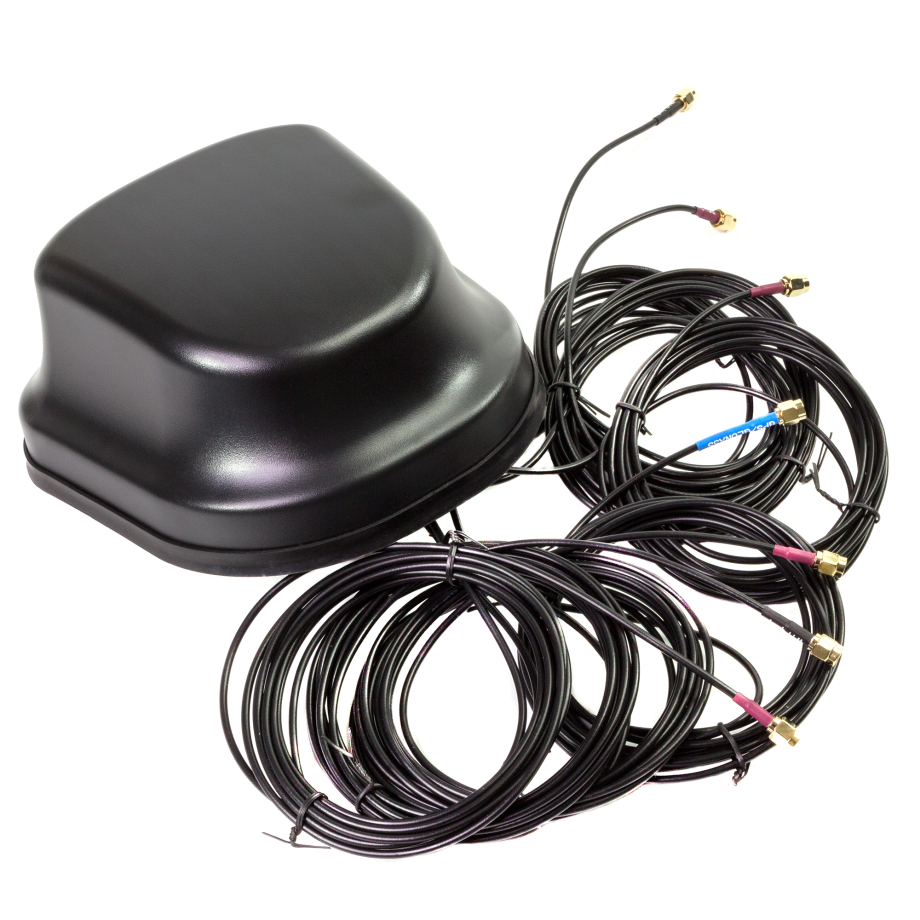

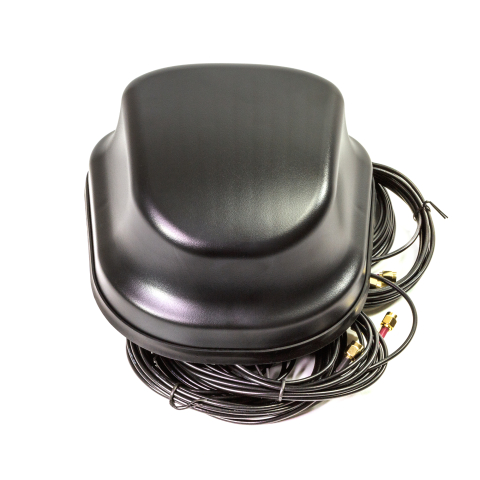

7-in-1 5G GNSS Wi-Fi automašīnas jumta antena
Garantija
?
24 mēneši
Ražotāja daļas nr
JCE605NR4WM
EAN numurs
0708747440942
7-in-1 5G GNSS Wi‑Fi kombinētā auto jumta antena GPS, GLONASS, Galileo
- 7-in-1 jumta antena ar 4x 5G NR MIMO, 2x Wi‑Fi MIMO un 1x GNSS kompaktam “viss vienā” risinājumam transportlīdzeklī.
- Paredzēta mobilajiem transportlīdzekļiem: āra kombinētā antena palīdz nodrošināt uzticamu 5G, Wi‑Fi un satelītnavigāciju kustībā.
- GNSS atbalsta GPS, GLONASS, COMPASS un Galileo, nodrošinot plašu navigācijas saderību vienā auto antenā.
- Komplektā septiņi 3 m kabeļi elastīgai uzstādīšanai; Wi‑Fi kabeļiem RP‑SMA Male savienotāji, pārējiem SMA Male savienotāji.
- Lieliski piemērota autoparkiem, komerciālai un mobilai lietošanai, ja nepieciešama viena jumta antena vienkāršākai savienojamībai.
110.07 €
nav noliktavā
?
110.07 €
nav noliktavā
?
Pieejamas alternatīvas
Preces apraksts
Āra kombinētā antena, kas aprīkota ar divām WiFi MIMO antenām, GNSS antenu un četrām 5G NR MIMO antenām. GNSS antena atbalsta GPS, GLONASS, COMPASS un Galileo satelītu navigācijas sistēmas. Kombinētā antena ir paredzēta uzstādīšanai uz mobilajiem transportlīdzekļiem. Komplektā ir 7 kabeļi pa 3 m katrs. Wi-Fi kabeļiem ir RP-SMA Male savienotāji, citiem kabeļiem ir SMA Male savienotāji.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Jumta
Bezvadu antenas frekvences diapazons un pastiprinājums
5.85 - 5.95 (GHz) 4 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.69 (GHz) 4 (dBi), 2.9 - 3.8 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 4 dBi, 4 dBi
Polarizācija
Lineāra, RHCP
Kabeļa garums
3 m
VSWR
< 3
Pretestība
50 Ω
Konnektori
RF savienotāji
(5) SMA Male, (2) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Aizsardzība pret mitrumu un putekļiem
IP67
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Āra
Montāžas veids
