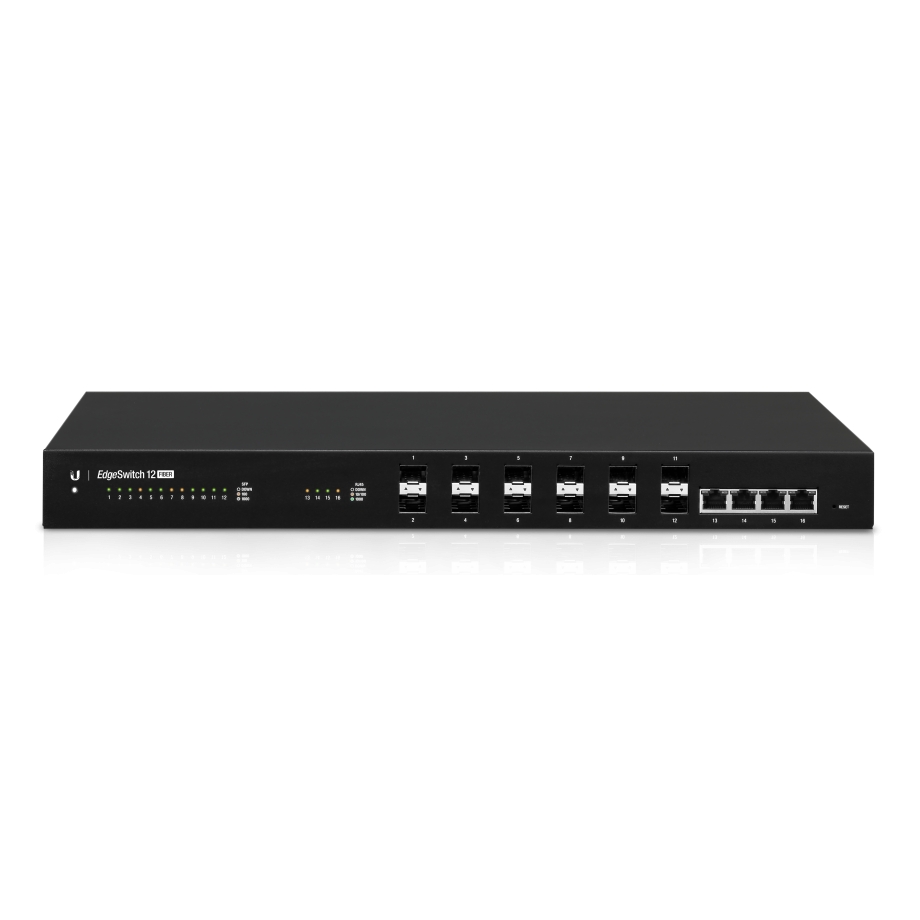

EdgeSwitch 12F
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Ubiquiti UniFi Switch Aggregation
USW-Aggregation
Pieejamas alternatīvas
Preces apraksts
Gigabitu pieslēgumu nodrošināšana

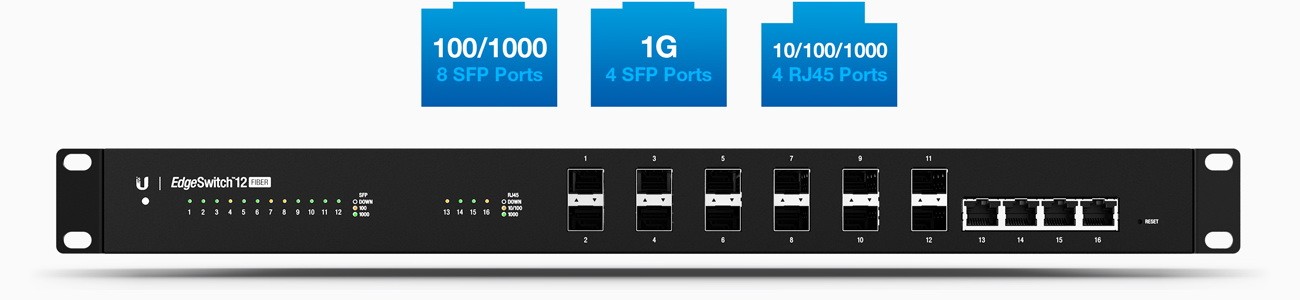

EdgeSwitch Fiber ir aprīkots ar 12 SFP portiem, lai nodrošinātu optisko šķiedru pieslēgumus. Astoņi SFP porti atbalsta datu pārraides ātrumu 100 Mbps un četri atbalsta gigabitu ātrumu. Turklāt komutatoram ir četri RJ45 Gigabit Ethernet porti un atsevišķs RJ45 sērijas konsoles ports.
Augsta veiktspēja
EdgeSwitch Fiber nodrošina trafika pārsūtīšanu vienlaicīgi pa visiem portiem ar līnijas ātrumu bez pakešu zudumiem. EdgeSwitch Fiber kopējā caurlaidspēja sasniedz līdz 16 Gbps, nodrošinot pakešu apstrādes ātrumu 23 Mpps.

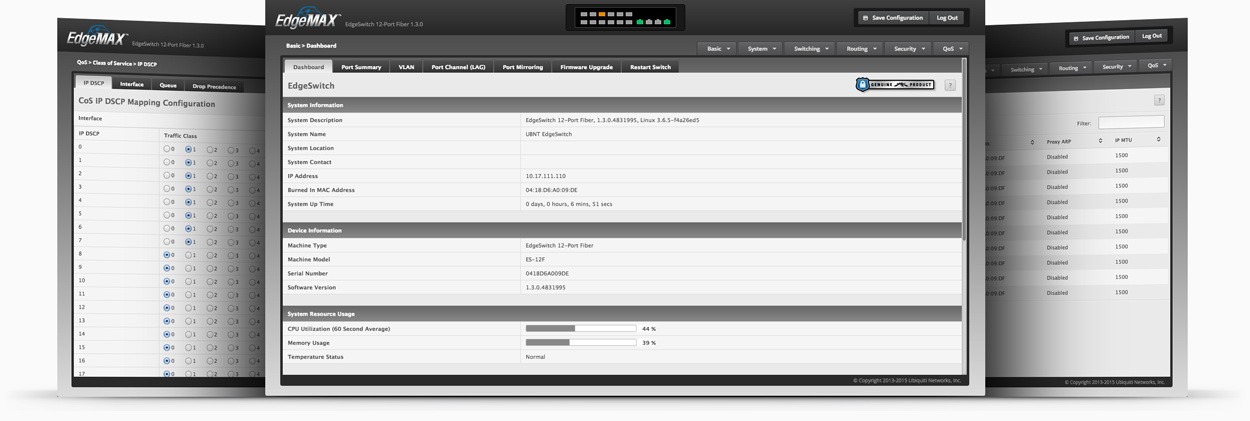

EdgeMax operētājsistēma
EdgeSwitch 16 XG izmanto EdgeMax operētājsistēmu, kas nodrošina ērtu grafisko konfigurācijas saskarni un uzlabotas komutācijas funkcijas, tostarp VLAN marķēšanu un kanālu agregāciju, kā arī ierobežotas 3. slāņa funkcijas, tostarp statiskās maršrutēšanas un DHCP servera funkcijas. Papildu konfigurēšanai ir pieejams SSH savienojums.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Interfeisi
RJ45 porti
(4) 1 Gbps
PoE standarti
nav PoE
SFP porti
(12) 1G SFP
Komunikācijas interfeiss
RJ45
Pārvaldīšana
Ethernet
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Iekšējais barošanas bloks
Atbalstītais ieejas spriegums
100 - 240 V AC
Maksimālais enerģijas patēriņš
56 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
Fiziskie parametri
Plauktu vienību skaits
1U
Krāsa
Melns
Izmēri
443 x 221 x 43 mm
Svars
2.68 kg
Darbības temperatūra
-5 °C līdz 40 °C
Vide
Iekštelpu
Montāžas veids
Montāža plauktā
Formas faktors
Montāžai 19" plauktā
