Produkta nosaukums

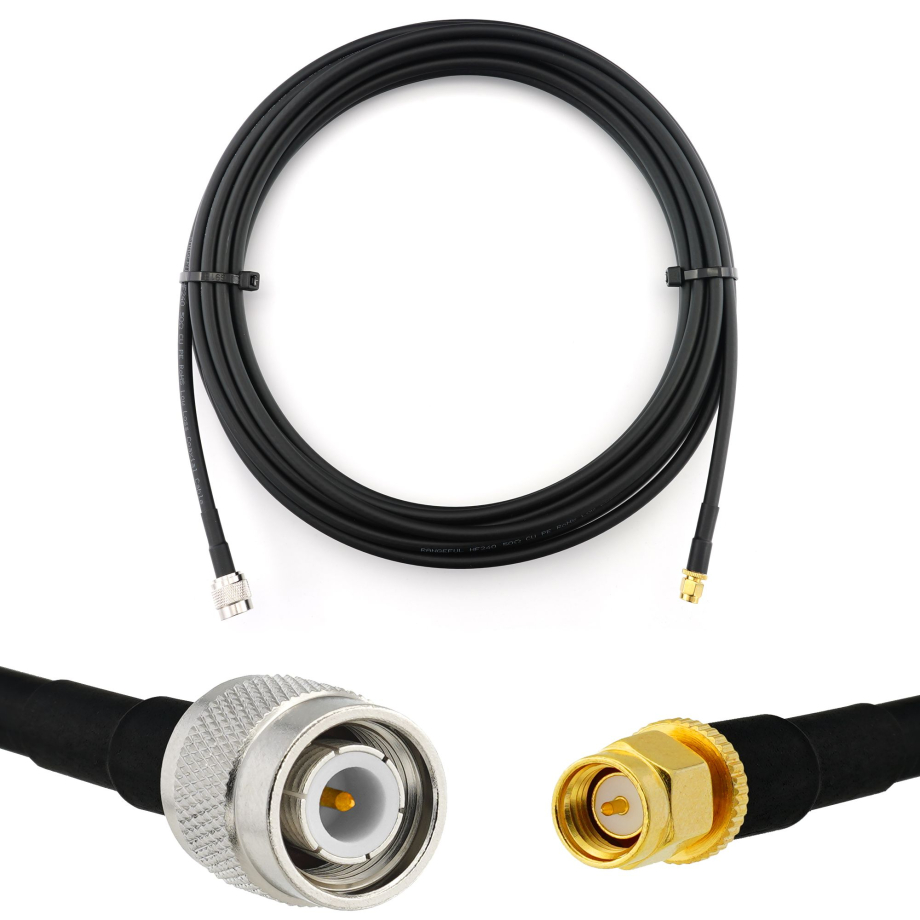

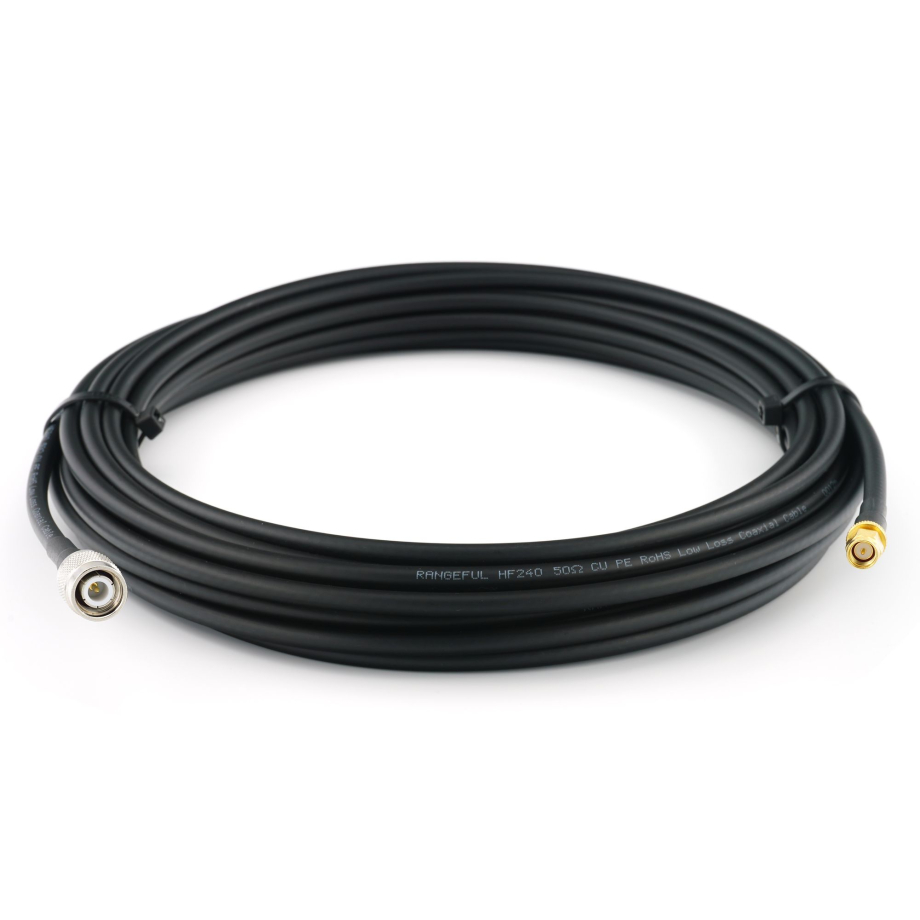

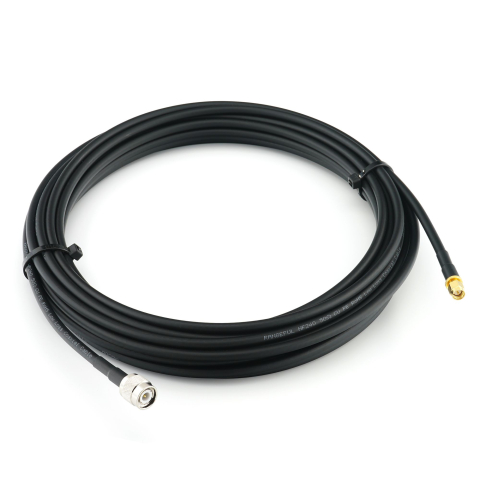

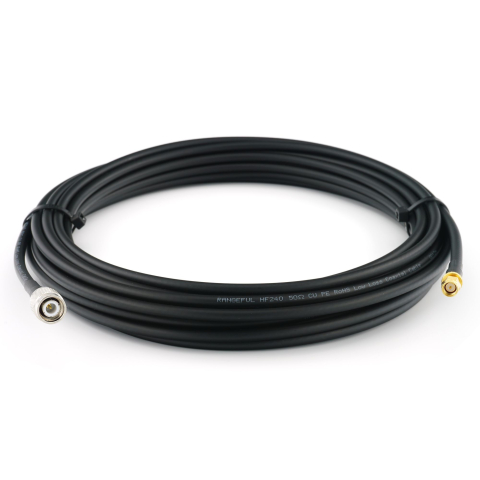

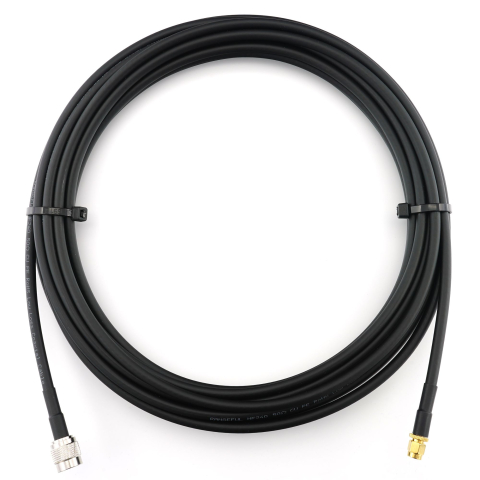

TNC Male / SMA Male 20m koaksiālais kabelis — HF240 (LMR240 ekvivalents)
Garantija
?
24 mēneši
Ražotāja daļas nr
HF240-TNCM-SM-20
TNC Male / SMA Male 20m koaksiālais kabelis —
HF240 (LMR240 ekvivalents)
Ir noliktavā
?
36.32 €
36.32 €
Preces apraksts
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Kabelis un savienotājs
Kabeļa tips
LMR240
Savienotājs
TNC Male - SMA Male
Kabeļa garums
Vadītājs
Tīrs varš
Vadītāja diametrs
Ø 1,40 mm
Dielektriķis
PEG
Dielektriķa diametrs
Ø 3,80 ± 0,10 mm
Ekranēšana
Alumīnija folija
Ekranēšanas izmēri
Ø 3,90 ± 0,10 mm
Ekranēšanas pārklājums
100 %
Pinums
Alvots varš
Pinuma izmēri
Ø 4,30 ± 0,10 mm
Pinuma pārklājums
77 %
Apvalks
Nepiesārņojošs PVC
Apvalka diametrs
Ø 6,10 ± 0,10 mm mm
Fiziskie parametri
Krāsa
Melns
Izmēri
31 x 31 x 8 cm
Svars
3.16 kg
Darbības temperatūra
-30 °C līdz 70 °C
Vide
Iekštelpu, Āra
Iepakojumā iekļauts
Vienības
1 gab
