Produkta nosaukums

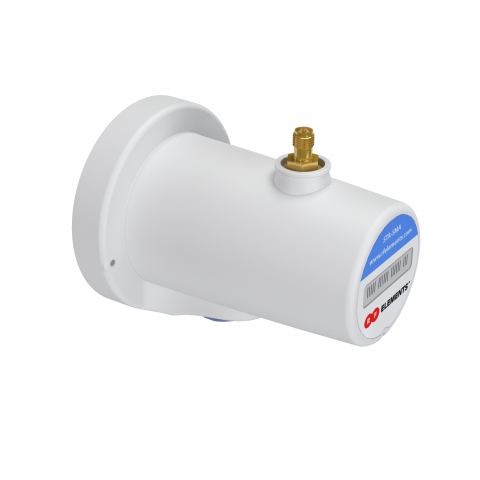

StarterAdapter SMA
Garantija
?
24 mēneši
Ražotāja daļas nr
STA-SMA
EAN numurs
0708747439939

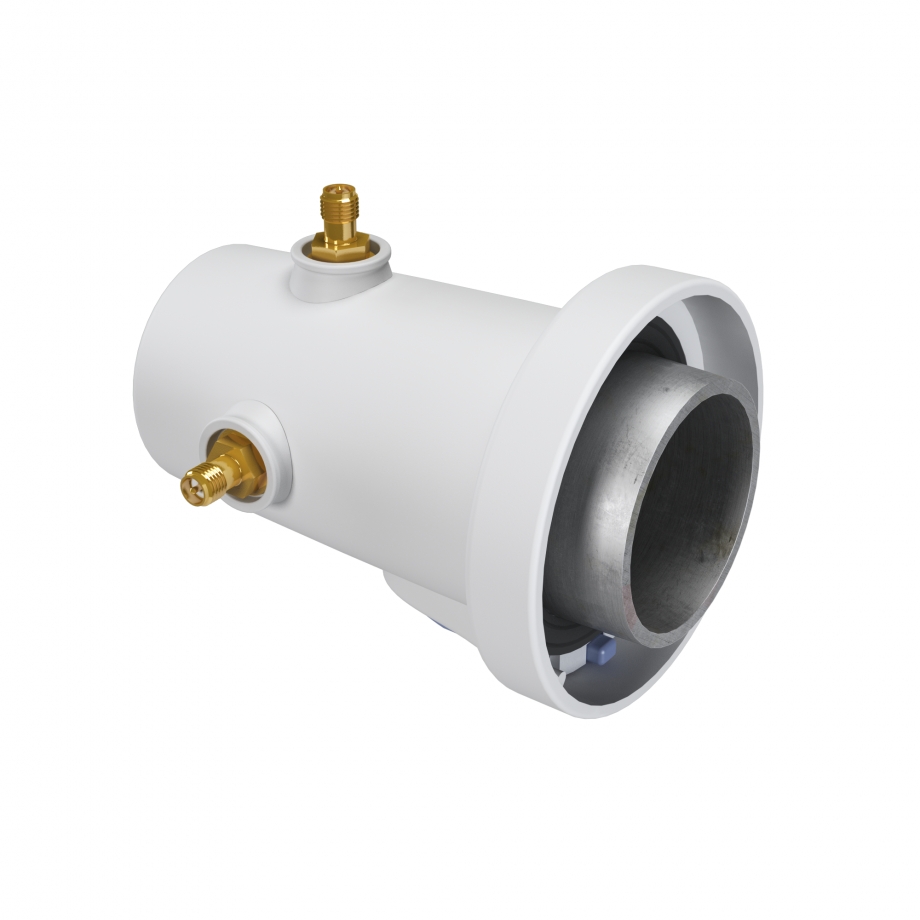

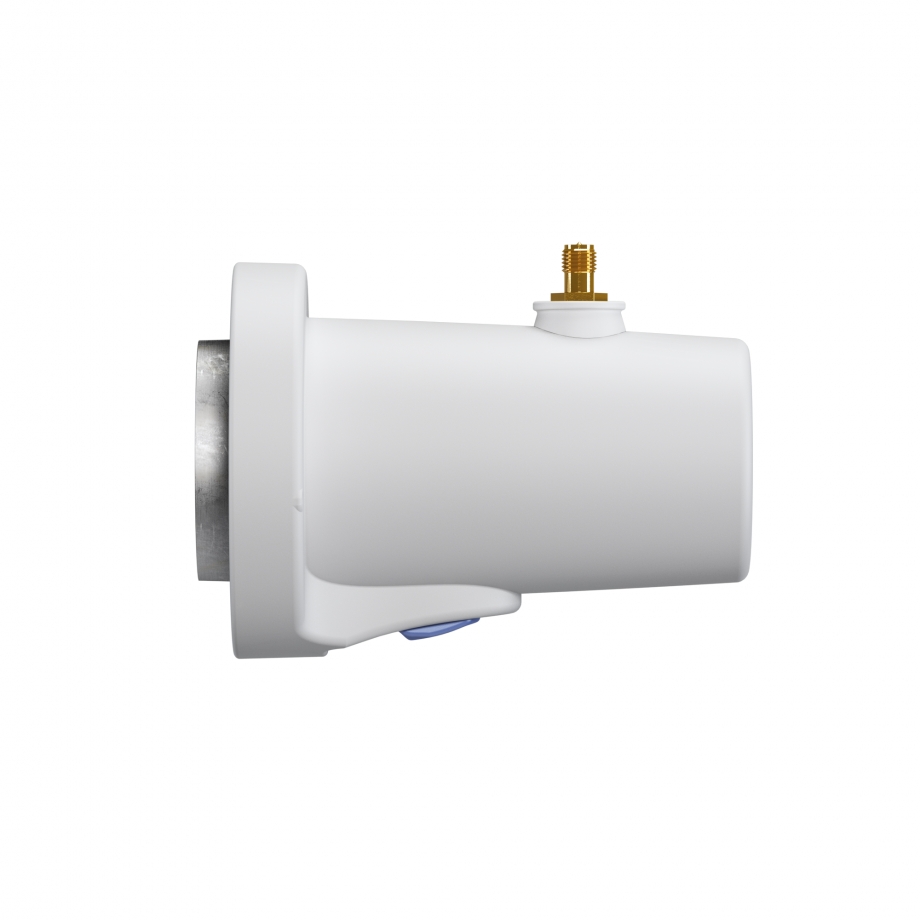

StarterAdapter SMA – RP-SMA viļņvada adapteris StarterDish™ antenām, 5150–5950 MHz
- Viļņvada uz RP-SMA adapteris StarterDish™ antenām – ļauj ērti savienot radios ar koaksiālo interfeisu ar saderīgām StarterDish™ sistēmām.
- Atbalsta dubulto lineāro horizontālo un vertikālo polarizāciju elastīgai lietošanai bezvadu savienojumos 5150–5950 MHz joslā.
- Plašs 5150–5950 MHz pārklājums un VSWR krietni zem 1,8 visā joslā nodrošina stabilu, efektīvu RF darbību.
- Uz viļņvada balstīta konstrukcija nodrošina praktiski nulles vājinājumu, bet koaksiālā un viļņvada pāreja ir optimizēta minimāliem zudumiem.

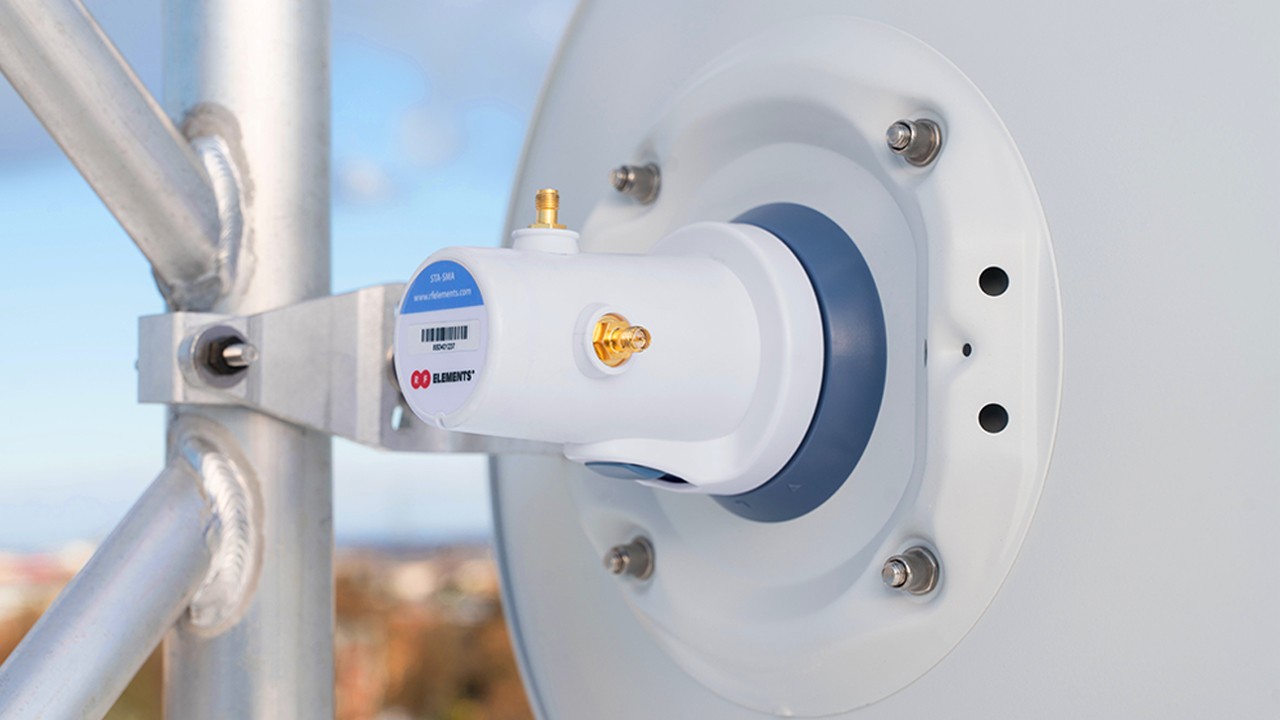

- Ideāli StarterDish™ uzstādījumiem, kam nepieciešams RP-SMA koaksiālais interfeiss, nemainot radio pusi.
-59% 24.79 €
10.16 €
nav noliktavā
?
-59% 24.79 €
10.16 €
nav noliktavā
?
Pieejamas alternatīvas
Preces apraksts
RP-SMA koaksiālais interfeiss StarterDish™ antenām
StarterAdapter™ SMA pārveido viļņvada interfeisu par koaksiālo interfeisu ar RP-SMA savienotājiem, lai izmantotu duālo lineāro horizontālo un vertikālo polarizāciju. Adapteris ļauj izmantot radio iekārtas ar koaksiālo interfeisu ar jebkuru StarterDish™ antenu, kura ir aprīkota ar viļņvada portu. STA-SMA aptver plašu frekvenču diapazonu no 5150 līdz 5950 MHz ar VSWR mazāku par 1,8 visā frekvenču joslā.

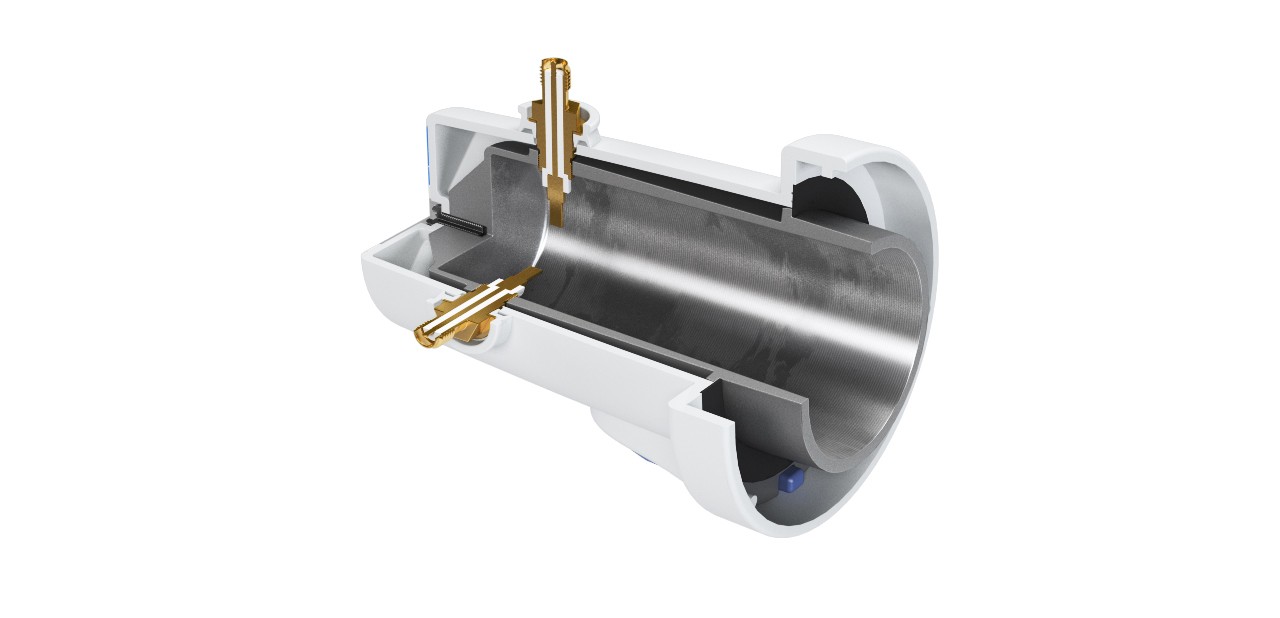

Minimizēti zaudējumi
STA-SMA ir adapteris ar viļņvada interfeisu pamatā. Tā kā viļņvadam ir praktiski nulles zudumi, adapteris nodrošina gandrīz nulles vājinājumu viļņvada daļā. Pāreja no koaksiālajiem savienotājiem uz viļņvada padevi arī ir optimizēta minimāliem zudumiem.
Tehniskās specifikācijas / Datu lapa
