Produkta nosaukums
TwistPort adapteris Mimosa C5x iekārtām
Garantija
?
24 mēneši
Ražotāja daļas nr
TPA-C5x
EAN numurs
8588006459593
TwistPort adapteris Mimosa C5x | Īpaši platais 5180-6400 MHz diapazons, Dual Slant vai H+V
- Pielāgo Mimosa C5x radiosistēmas RF elements TwistPort™ viļņvada savienotājam, nodrošinot vienkāršu un ērtu integrāciju.
- Savietojams ar jebkuru TwistPort™ antenu, palīdzot sasniegt labāku veiktspēju, lielāku noturību pret troksni un mērogojamu tīklu.
- Izvēlieties Dual Slant vai H+V polarizāciju atbilstoši tīkla projektam un uzstādīšanai.
- Īpaši plats 5180–6400 MHz diapazons ar augstu efektivitāti un labi kontrolētu VSWR visā spektrā.
- TwistPort adapters Mimosa C5x radiosistēmām, piemērots uzticamiem point-to-point un point-to-multipoint bezvadu risinājumiem.
-22% 26.91 €
20.96 €
Ir noliktavā
?
-22% 26.91 €
20.96 €
Ir noliktavā
?
Preces apraksts

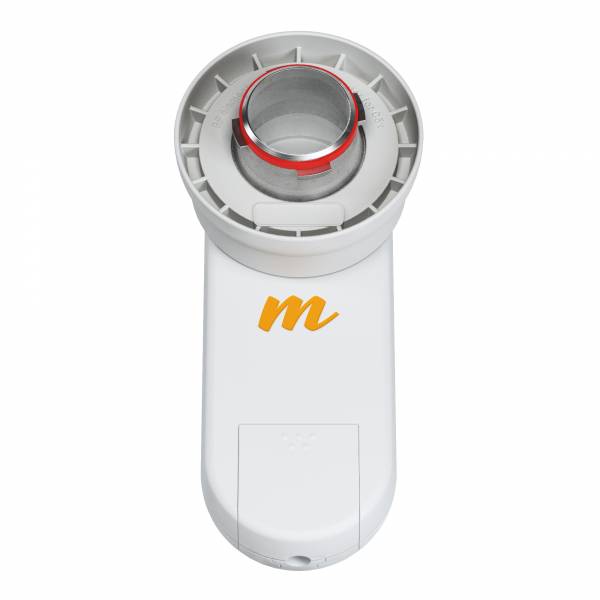

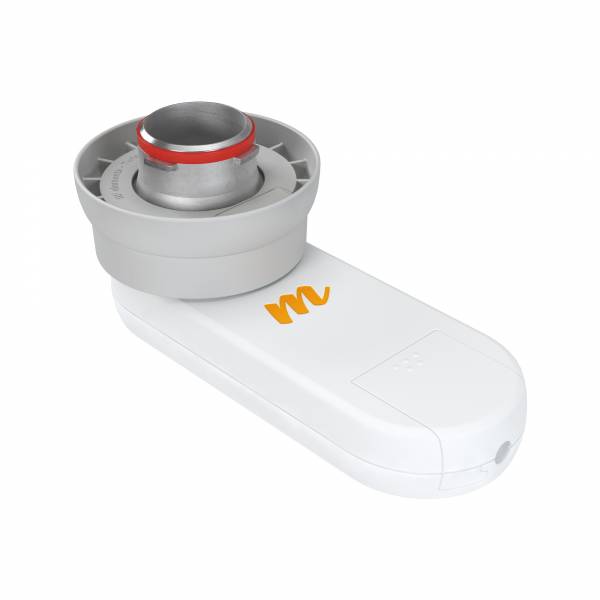

TwistPort™ adapteris ļauj integrēt Mimosa® C5x radiostaciju TwistPort™ sistēmā.
TPA-C5x adapteri izmanto, lai pielāgotu radiostaciju ar Mimosa viļņvada savienotāju izmantošanai ar antenām, kuras ir aprīkotas ar TwistPort™ viļņvada savienotājiem. Tas ļauj izmantot Mimosa® C5x radiostaciju ar jebkuru TwistPort™ antenu un nodrošina izcilu veiktspēju, izturību pret trokšņiem un tīkla mērogojamību.
TPA-C5x ļauj izmantot dubulto slīpo polarizāciju vai H+V polarizāciju. TwistPort™ adapteri aptver īpaši plašu 5180-6400 MHz frekvenču diapazonu un darbojas efektīvi ar labi pārvaldītu VSWR visā diapazonā.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, UV plastmasa
Izmēri
109 × 98 × 54 mm cm
Svars
0.17 kg
Darbības temperatūra
-40 °C līdz 60 °C
Vide
Āra
Pieļaujamais vēja ātrums
160 km/st
