Zīmols
Ražotāja daļas nr
R950S
Garantija
?
24 mēneši
EAN numurs
5907772035245
QuRouter 950S (Antenna with Intergated Tetltonika RUT950)
ir noliktavā
?
-20% 376.61 €
301.29 €
-20% 376.61 €
301.29 €
Preces apraksts

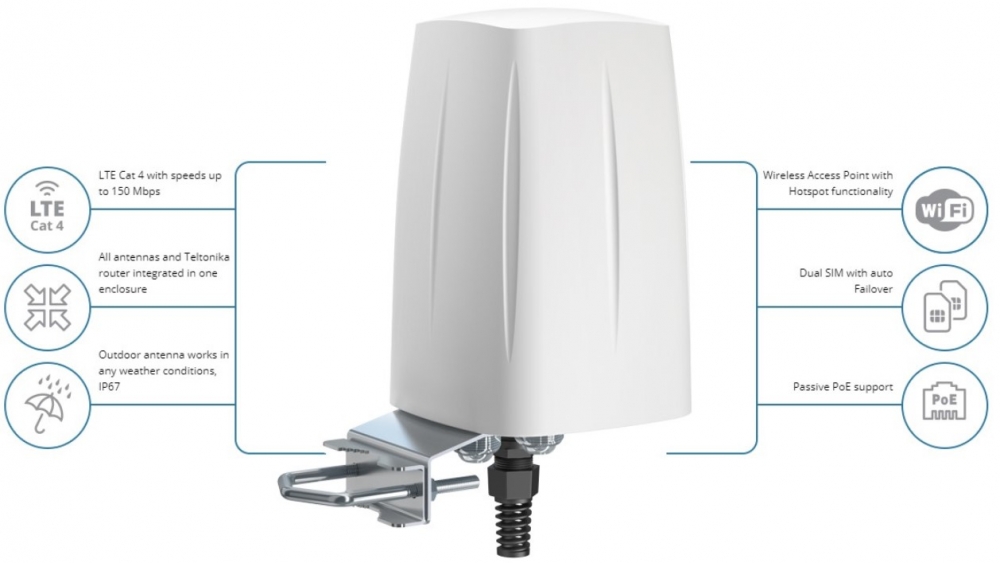

QuRouter 950S ir rentabls un jaudīgs rūpnieciskais LTE Cat 4 un Wi-Fi maršrutētājs IoT lietojumiem. Tas ir aprīkots ar daudzvirzienu LTE un Wi-Fi antenām. Maršrutētājs nodrošina augstu veiktspēju kritiski svarīgiem mobilajiem sakariem vidē ar skarbiem laikapstākļiem, kur nepieciešams plašs darba temperatūru diapazons. Maršrutētājam ir 4G dublēšanas funkcija, pateicoties divu SIM karšu avārijas pārslēgšanai.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
LTE kategorija
Cat4 - 150Mbps/50Mbps
FDD LTE frekvenču joslas
1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE frekvenču joslas
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM kartes slots
Dual SIM
Bezvadu tīkls
Standarti
802.11b/g/n
Caurlaidspēja 2.4GHz joslā
300 Mbps
Antena
Antenas dizains
Kupola
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.5 (GHz) 6 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
35 ° Vertikāli
Polarizācija
Vertikālā
VSWR
< 1.6
Pretestība
50 Ω
Interfeisi
RJ45 porti
Interfeiss
(1) Digitālā ieeja, (1) Digitālā izeja
Pārvaldīšana
Ethernet
Sistēmas specifikācija
Chipset
Atheros Wasp, MIPS 74Kc, 550 MHz
RAM atmiņas apjoms
128 MB
Iebūvētās atmiņas apjoms
16 MB
Elektroapgāde
Enerģijas veids
24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 30 V DC
Maksimālais enerģijas patēriņš
7 W
Barošanas savienotājs
4-pin, 3 mm
Fiziskie parametri
Krāsa
Balts
Materiāls
Cinkots tērauds, Alumīnijs, ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

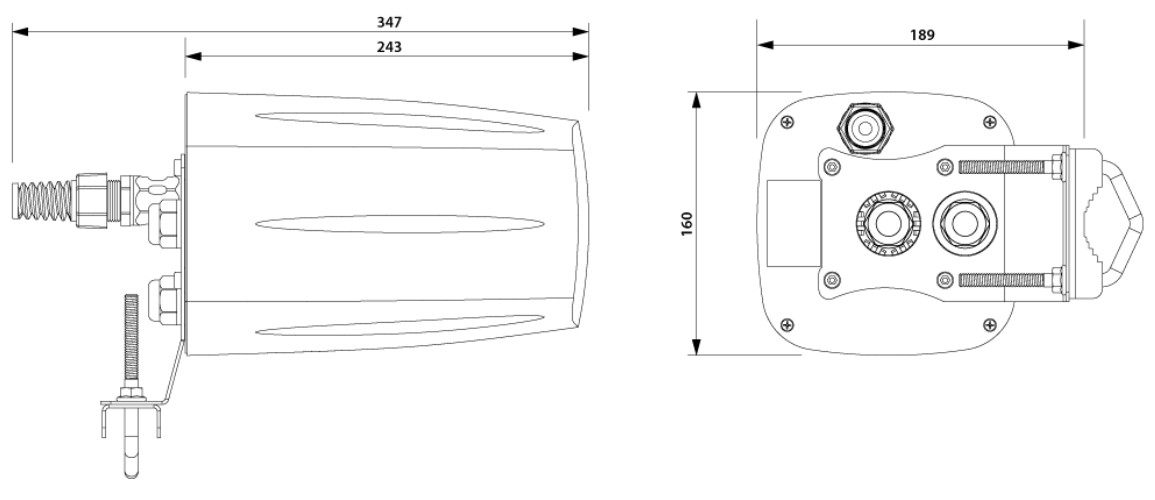

Izmēri
160 x 160 x 240 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
