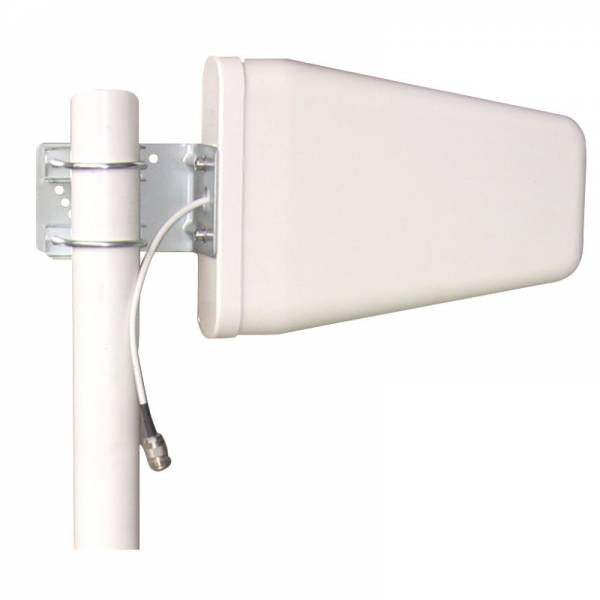

LTE platjoslas virziena antena 8dBi
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Specifikācijas
Antena
Antenas dizains
Yagi
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 8 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Mobilās antenas pastiprinājums
8 dBi
Stara platums
110 ° Vertikāli, 90 ° Horizontāli
Polarizācija
Vertikālā
Kabeļa garums
0.2 m
VSWR
< 1.5
Pretestība
50 Ω
Priekšpuses/mugurpuses attiecība
> 20 dB
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji
(1) N Female
Fiziskie parametri
Krāsa
Pelēks
Materiāls
ABS plastmasa
Izmēri
290 x 210 x 65 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
