Produkta nosaukums
Teltonika GPS/GNSS antena 2dBi pašlīmējošā 3m
Garantija
?
24 mēneši
Ražotāja daļas nr
PR1KSG30
EAN numurs
0708747439762
GPS/GNSS antena Teltonika RUT9xx maršrutētājiem ar SMA savienotāju
Official Teltonika Distributor
Certified Teltonika Engineers
- GNSS līmējama antena ar RHCP polarizāciju uzticamai satelīta signāla uztverei 1575,42–1602 MHz diapazonā.
- 2 dBi pastiprinājums palīdz nodrošināt stabilu GPS/GNSS darbību izsekošanai un pozicionēšanai.

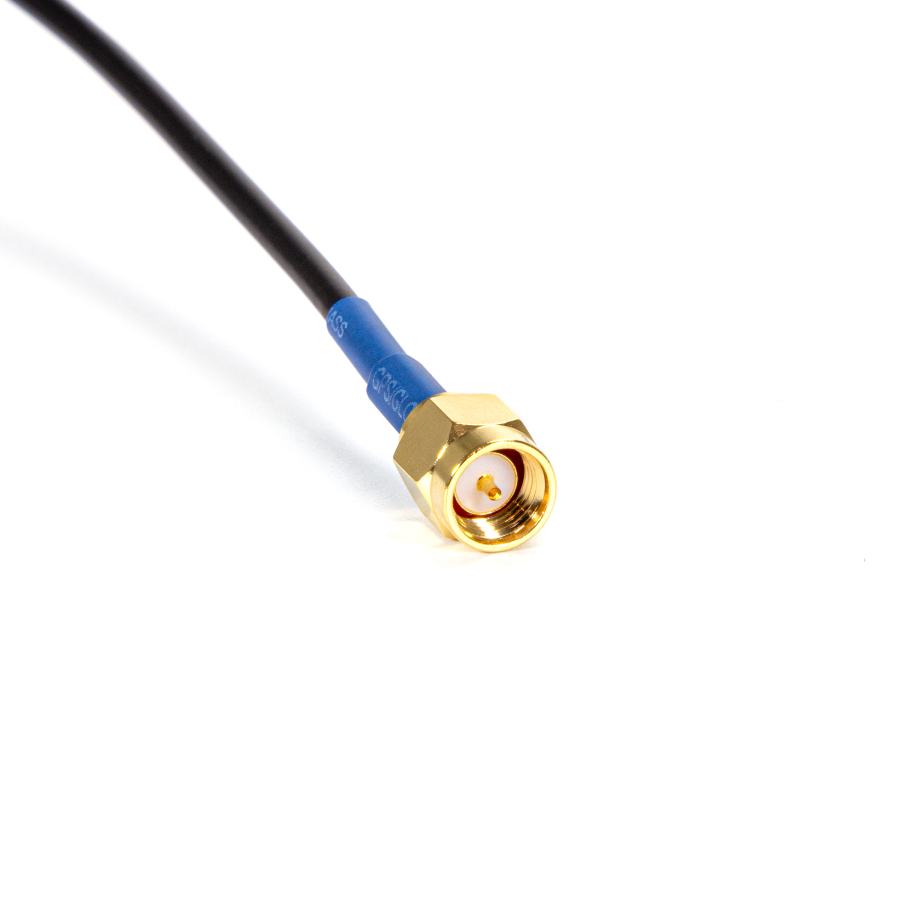

- 3 m RG174 augstfrekvences koaksiālais kabelis ar SMA female savienotāju ērtai uzstādīšanai.
- Līmējamais stiprinājums ļauj ātri un ērti piestiprināt antenu uz piemērotām virsmām.
- Teltonika PR1KSG30 ir kompakta GPS/GNSS antena vadu savienojumiem.
Official Teltonika Distributor
Certified Teltonika Engineers
6.40 €
Ir noliktavā
?
6.40 €
Ir noliktavā
?
Official Teltonika Distributor
Certified Teltonika Engineers
Preces apraksts

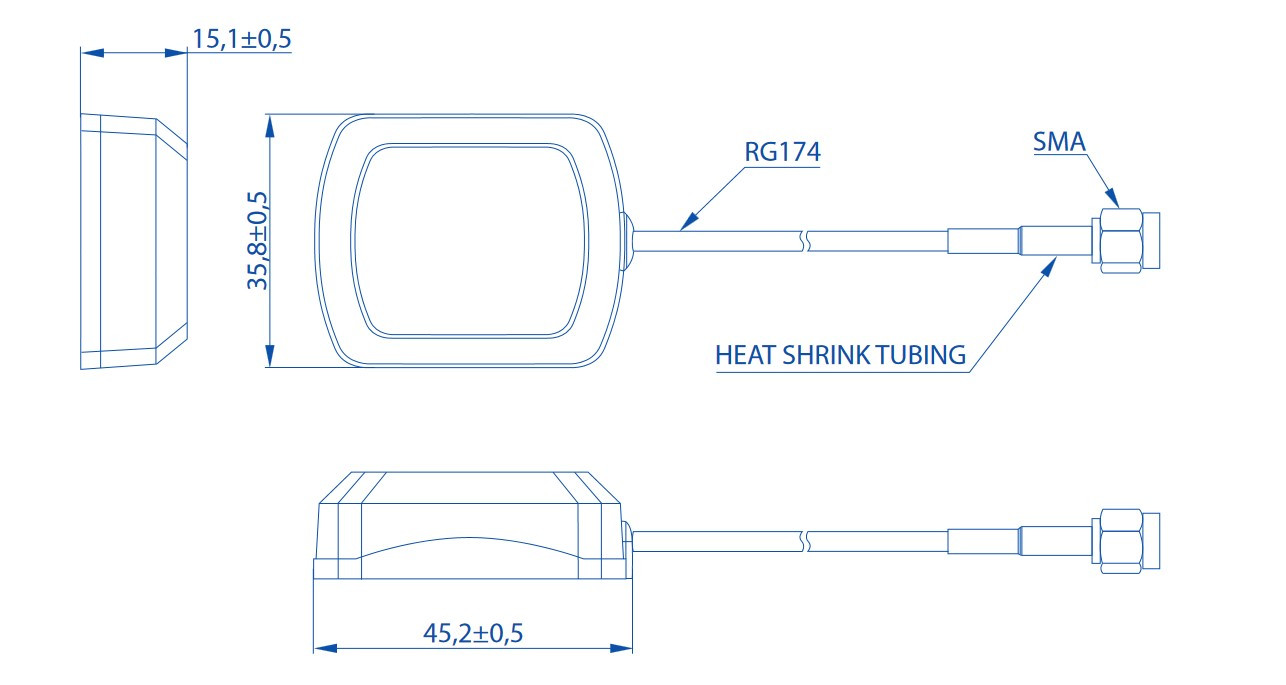

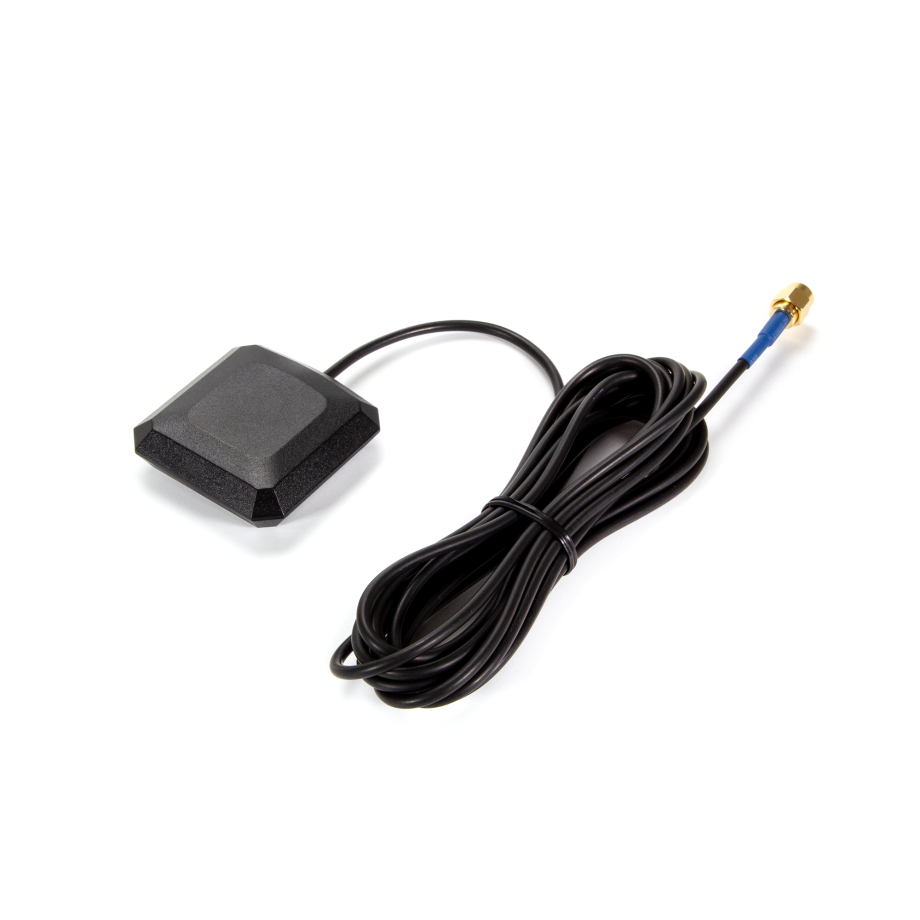

PR1KSG30 ir GNSS antena ar RHCP polarizāciju. Antena darbojas frekvenču diapazonā 1575,42-1602 MHz ar 2 dBi pastiprinājumu. PR1KSG30 ir aprīkota ar RG174 augstfrekvences koaksiālo kabeli ar taisnu SMA Female savienotāju. Kabeļa garums ir 3 m. Piestiprināšanas metode: pielīmēšana.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
GPS antenas frekvences diapazons un pastiprinājums
1575.42 MHz 2 dBic (Zenith)
Kabeļa garums
3 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
