Ražotāja daļas nr
HF240-BNCM-BNCF-0.5
Garantija
?
24 mēneši
EAN numurs
4752284000226

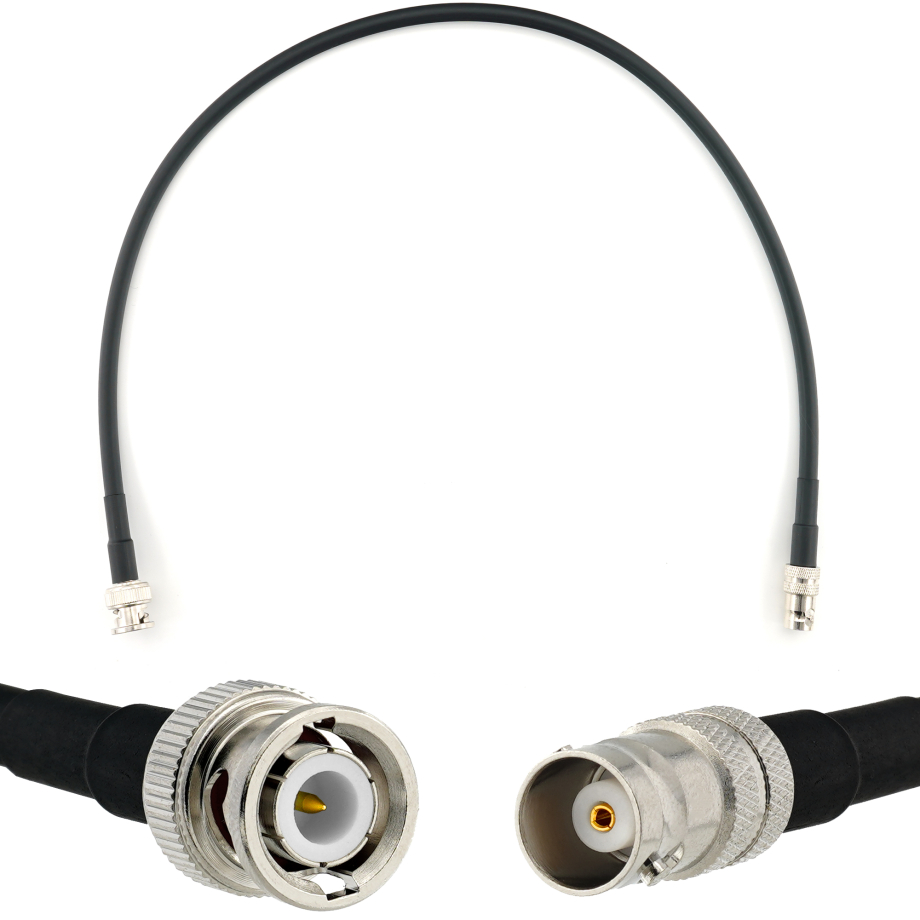

BNC Male / BNC Female 50cm koaksiālais kabelis — HF240 (LMR240 ekvivalents)
ir noliktavā
?
12.14 €
12.14 €
Specifikācijas
Kabelis un savienotājs
Savienotājs
(1) BNC Male - (1) BNC Female
Kabeļa tips
LMR240
Kabeļa garums
Vadītājs
Tīrs varš
Vadītāja diametrs
Ø 1,40 mm
Dielektriķis
PEG
Dielektriķa diametrs
Ø 3,80 ± 0,10 mm
Ekranēšana
Alumīnija folija
Ekranēšanas izmēri
Ø 3,90 ± 0,10 mm
Ekranēšanas pārklājums
100 %
Pinums
Alvots varš
Pinuma izmēri
Ø 4,30 ± 0,10 mm
Pinuma pārklājums
77 %
Apvalks
Nepiesārņojošs PVC
Apvalka diametrs
Ø 6,10 ± 0,10 mm mm
Fiziskie parametri
Krāsa
Melns
Izmēri
15 x 15 x 2 cm
Svars
0.1 kg
Darbības temperatūra
-30 °C līdz 70 °C
Vide
Iekštelpu, Āra
Iepakojumā iekļauts
Vienības
1 gab
Piegāde
Piegāde Latvijā vienas darba dienas
laikā. Piegāde pakomātos un
saņemšanas punktos visā Latvijā.
Sūtījumu izsūtīšana katru darba dienu
24 stundu laikā.
Pasūtījuma apmaksa
Ātri un droši maksājumi ar kredītkarti.
Bankas pārskaitījums.
Individuālie piedāvājumi vairumtirgotājiem.
Garantija un atgriešana
Preču atgriešanas garantija
30 dienu laikā pēc saņēmšanas.
Preču garantijas, atgriešanas, apmaiņas un remonta statuss tiešsaistē.
Ir pieejamā pagarinātā garantija.
