Produkta nosaukums
Alfa 5GHz āra Omni antena 15dBi N-Female
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-5815
EAN numurs
0701017581147
Alfa AOA-5815 15dBi omni antena – 5GHz augstas pastiprināšanas visvirziena antena
nav noliktavā
?
53.99 €
53.99 €
Pieejamas alternatīvas
Preces apraksts
AOA-5815 antenas ir izstrādātas un ražotas saskaņā ar visaugstākajiem nozares standartiem par vispieejamāko iespējamo cenu. Antena ir paredzēta 5,8 GHz ISM joslai, atbalsta frekvences no 5,1 līdz 5,9 GHz un nodrošina izcilu veiktspēju IEEE 802.11a Wi-Fi lietojumos.

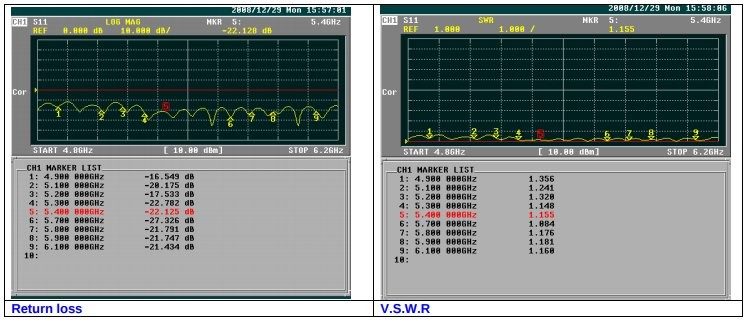

Tīkla analizatora testa rezultāti

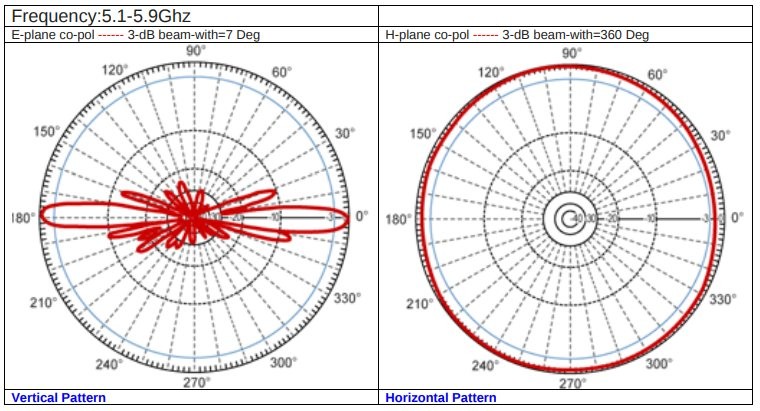

Radiofrekvenču kameras testa rezultāti
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Bezvadu tīkls
Frekvence
5GHz
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
5.1 - 5.9 (GHz) 15 (dBi)
Stara platums
7 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) N Female
Fiziskie parametri
Krāsa
Balts
Izmēri
Ø22 x 740 mm
Svars
0.44 kg
Vide
Āra
Montāžas veids
