Produkta nosaukums
Alfa 2.4 GHz āra Omni antena 9dBi N-Male
Garantija
?
24 mēneši
Ražotāja daļas nr
AOA-2409TMA
EAN numurs
4718050307395
Alfa 2.4GHz 9dBi omni antena – augstas pastiprināšanas N Male
- Āra omni antena 2,4 GHz Wi‑Fi tīkliem, 2400–2500 MHz josla un 9 dBi pastiprinājums labākam pārklājumam saderīgās sistēmās.
- SISO 1x1 konstrukcija nodrošina visvirzienu pārklājumu, lai antenu nebūtu jāprecīzi virza.
- Paredzēta lietošanai ārā, ar ūdensizturīgu N Male savienotāju uzticamākai uzstādīšanai atklātā vidē.
- Piemērota 2,4 GHz bezvadu tīkliem, piekļuves punktiem un citām saderīgām ierīcēm ar N Male antenas pieslēgumu.
- ALFA Network AOA-2409TMA – vienkārša un izturīga āra antena ikdienas Wi‑Fi risinājumiem.
20.33 €
Ir noliktavā
?
20.33 €
Ir noliktavā
?
Preces apraksts

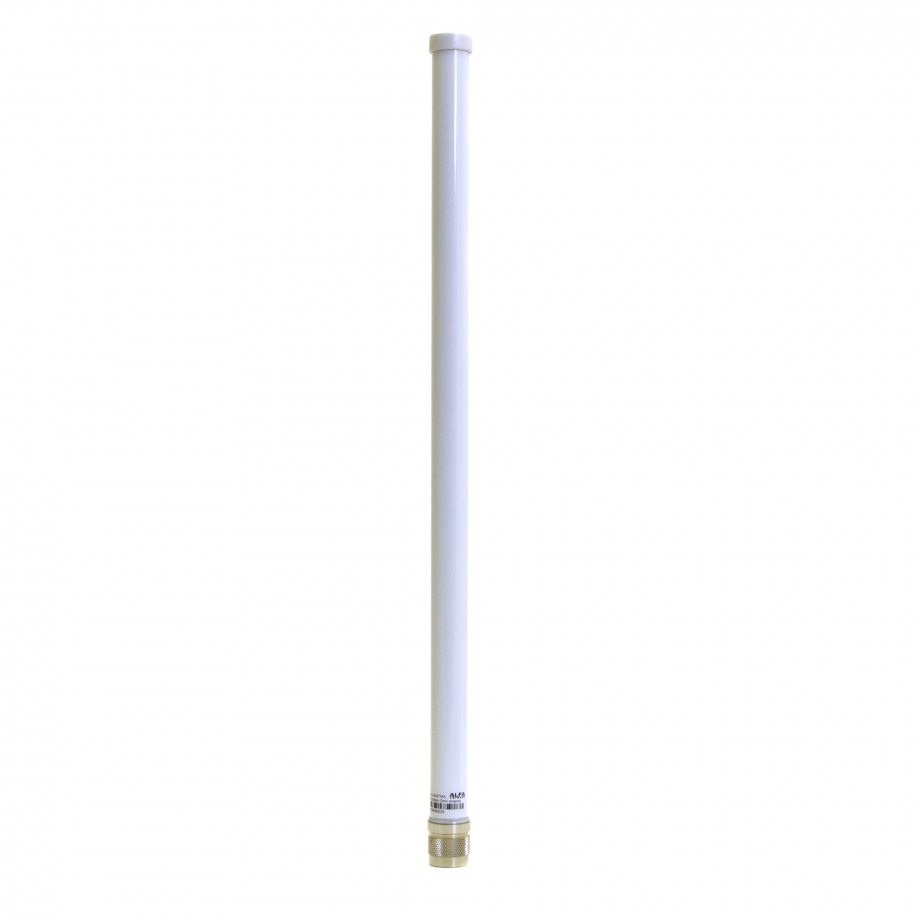

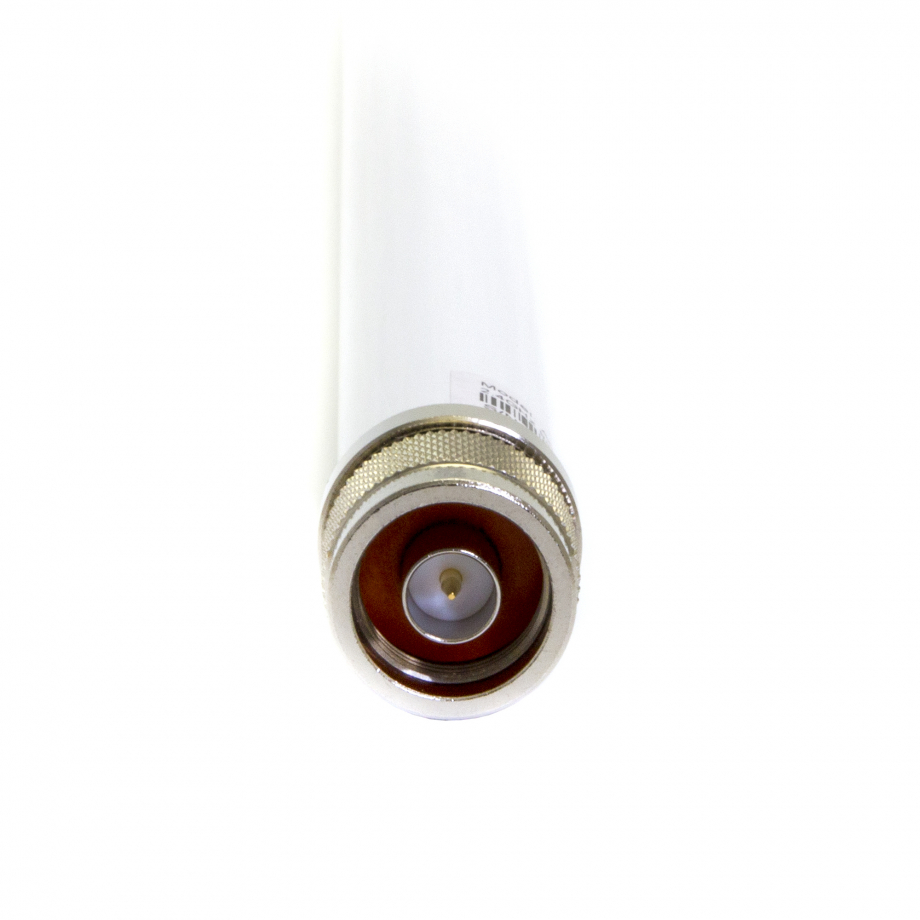

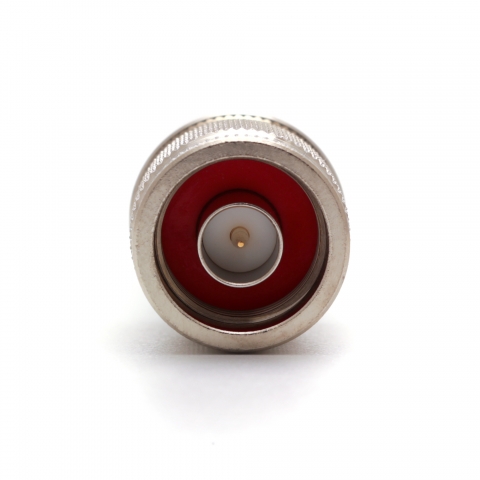

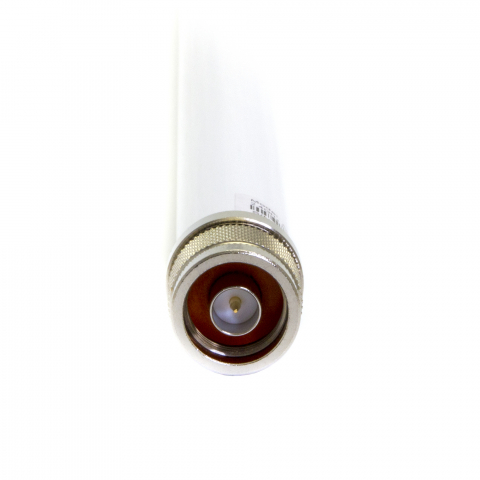

AOA-2409TMA ir visvirziena antena no ALFA Network, kas paredzēta lietošanai ārpus telpām. Tas darbojas 2400-2500 MHz frekvenču diapazonā ar 9 dBi pastiprinājumu, saskaņā ar SISO 1x1 standartu. Aprīkota ar ūdensizturīgu N Male savienotāju.

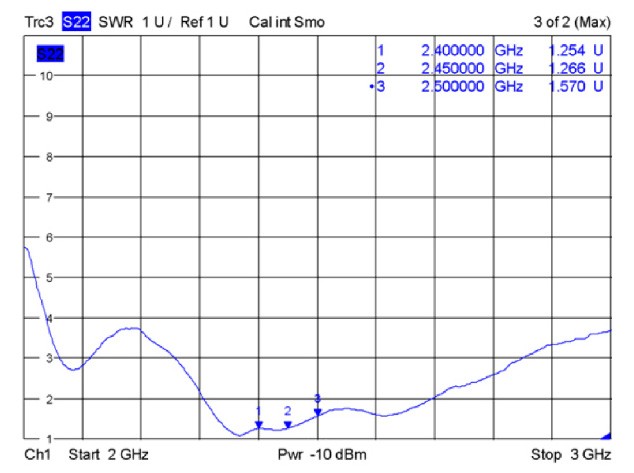

VSWR

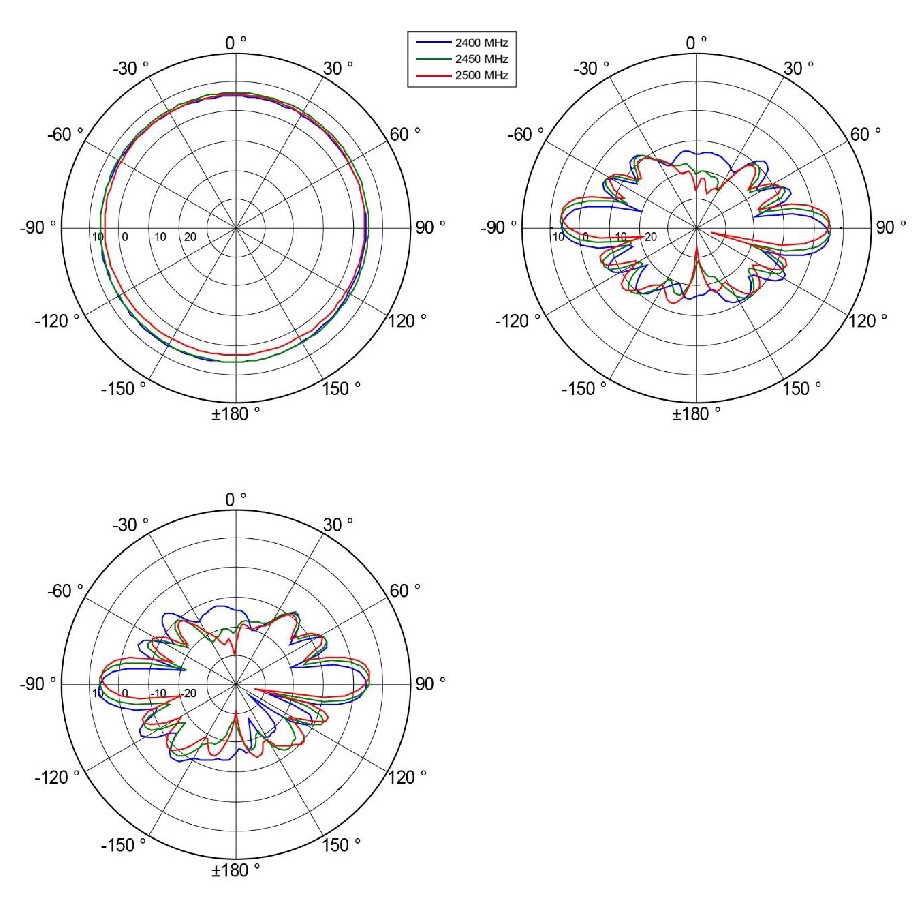

Frekvenču diagramma
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.5 (GHz) 9 (dBi)
Stara platums
360 °
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) N Male
Fiziskie parametri
Izmēri
Ø22 x 418 mm
Svars
0.108 kg
Darbības temperatūra
-40 °C līdz 80 °C
