Produkta nosaukums
TwistPort adapteris ar 2 RP-SMA Female savienotājiem
Garantija
?
24 mēneši
Ražotāja daļas nr
TPA-SMA
EAN numurs
8588006459463
TwistPort adapteris ar 2 RP-SMA Female savienotājiem
nav noliktavā
?
40.97 €
40.97 €
Pieejamas alternatīvas
Preces apraksts
Kas ir TPA-SMA

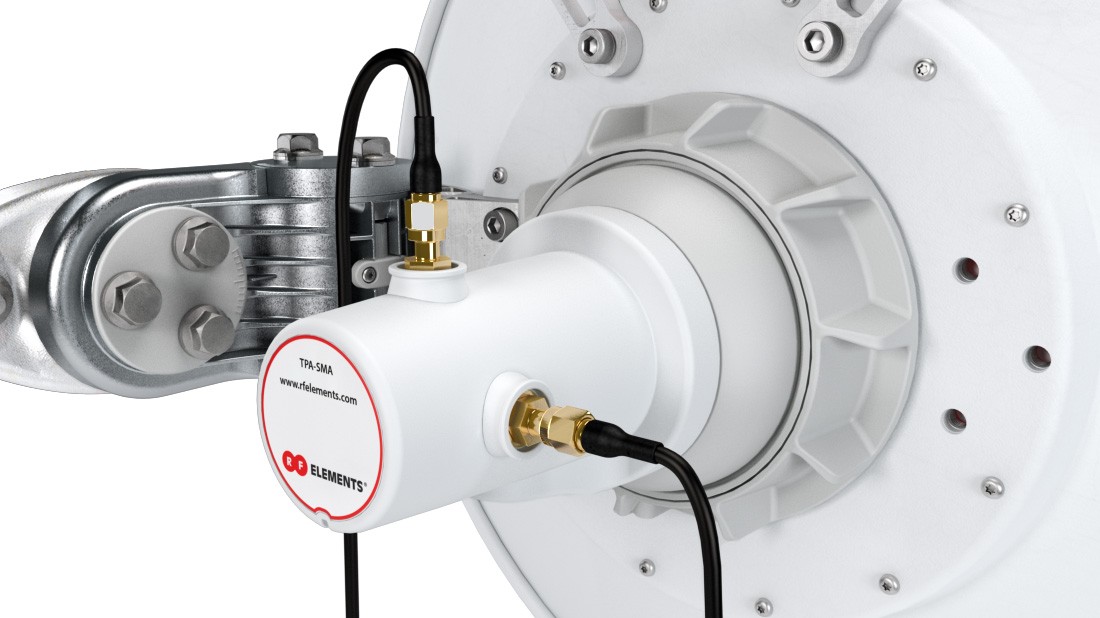

TwistPort adapteris (TPA) ļauj pielāgot trešo pušu radiostacijas pie RF elements® patentētā TwistPort™ viļņvada savienotāja. Īpaši izstrādātais TPA-SMA adapteris nodrošina vislabāko RF veiktspēju, minimālus RF zudumus un izcilu lietošanas pieredzi. TPA-SMA adapteris ļauj pieslēgt radiostacijas ar RP-SMA saskarni.
RP-SMA koaksiālais interfeiss

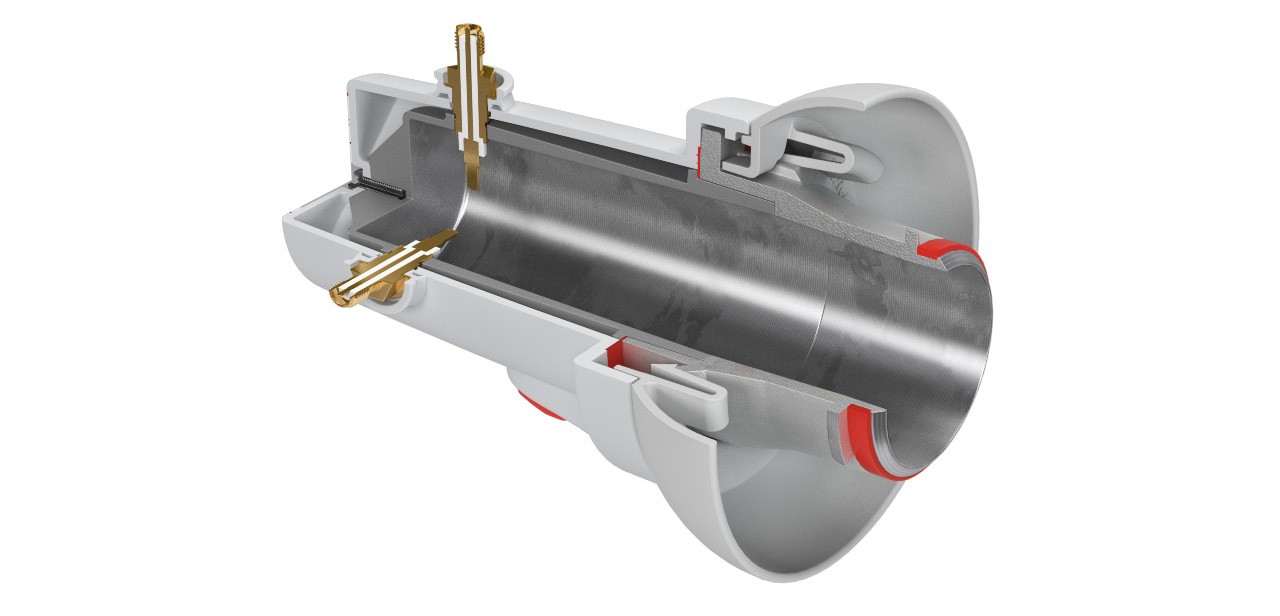

TPA-SMA atbalsta nozarē visizplatītāko koaksiālo interfeisu RP-SMA ar dubulto H+V lineāro polarizāciju. TPA-SMA aptver īpaši plašu 5180-6400 MHz frekvenču diapazonu un darbojas ar izcilu veiktspēju. RP-SMA savienotāji ir izvietoti tieši uz viļņvada, tādējādi novēršot iekšējo koaksiālo kabeļu izmantošanu un samazinot zudumus līdz minimumam.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, UV plastmasa
Izmēri
15.5 × 10.0 × 9.7 cm
Svars
0.21 kg
Darbības temperatūra
-40 °C līdz 60 °C
Vide
Āra
Pieļaujamais vēja ātrums
160 km/st
