Zīmols
Ražotāja daļas nr
FMM001
Garantija
?
24 mēneši
EAN numurs
4779027312606

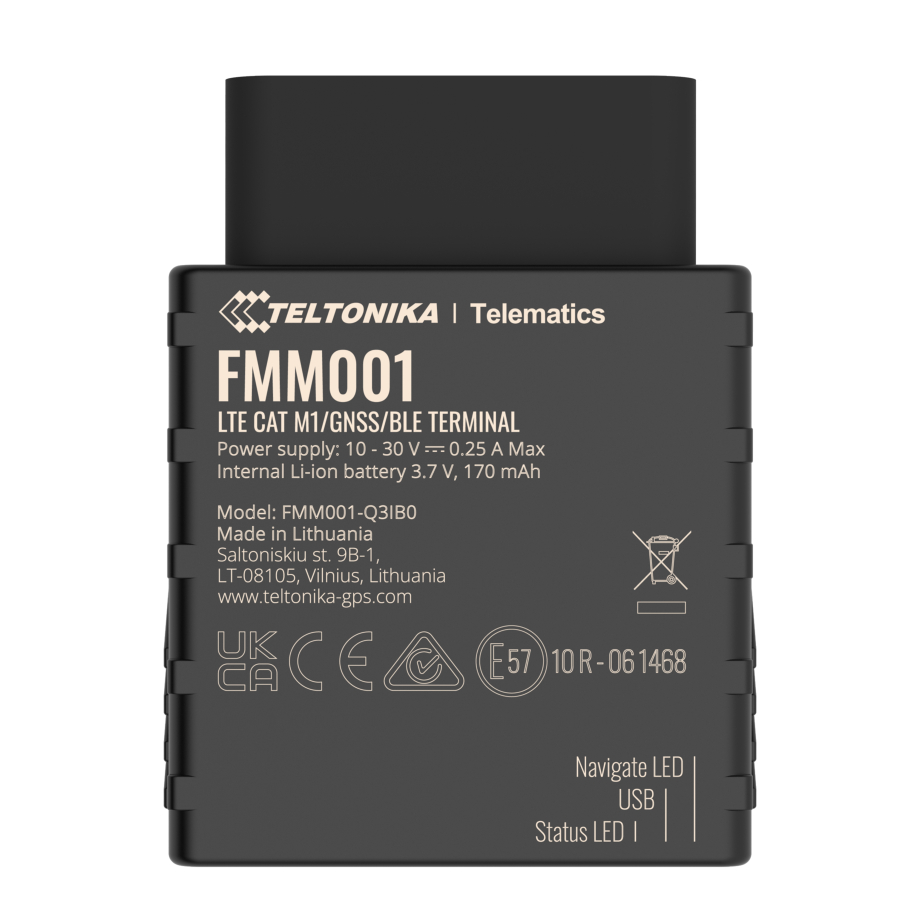

Teltonika FMM001
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Teltonika FMM003
FMM0037FBP01
Pieejamas alternatīvas
Preces apraksts

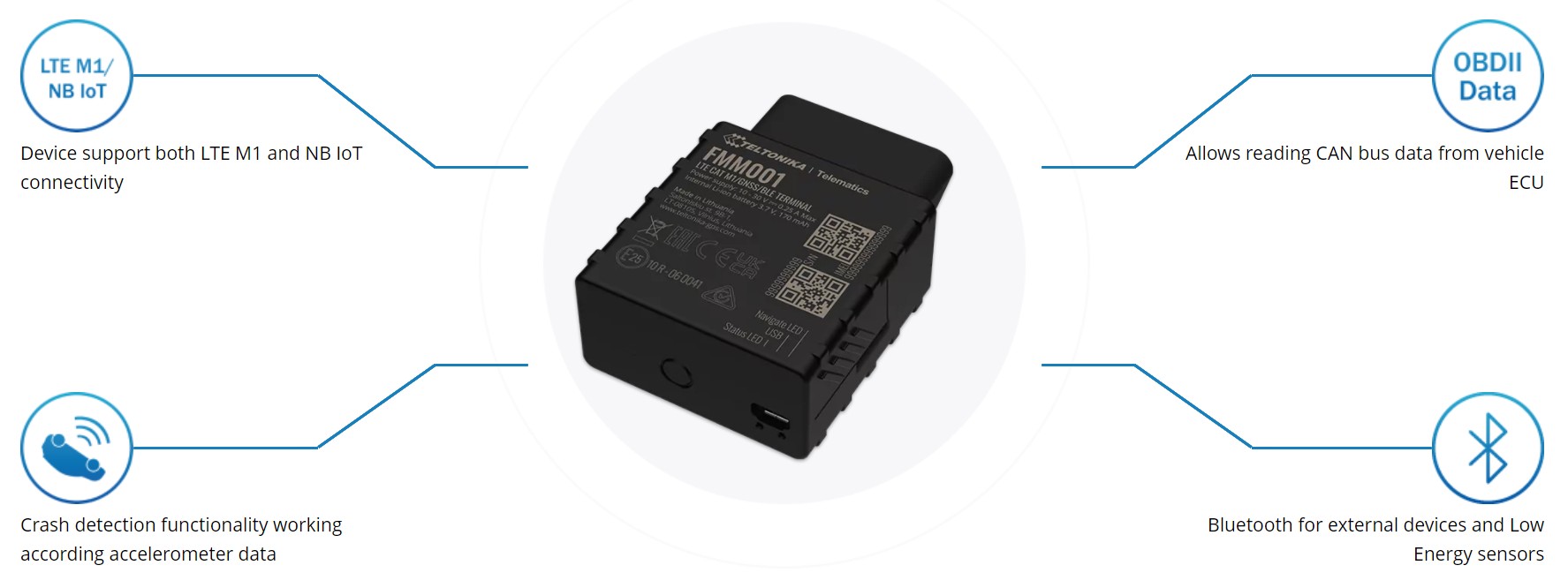

Teltonika FMM001 ir pirmā LTE CAT M1 OBD ierīce ar GNSS un Bluetooth atbalstu. FMM001 nolasa OBDII parametrus un sniedz detalizētus akselerometra datus, turklāt ierīci ir viegli uzstādīt. Tas ir ideāls izsekotājs plašam lietojumu klāstam, piemēram, vieglo kravas automobiļu autoparka pārvaldībai, nomai un līzingam, autovadītāju reģistrācijas žurnāliem, apdrošināšanas telemātikai (UBI) u. c. lietojumiem. Ierīce atbalsta dažādus Bluetooth sensorus ar zemu enerģijas patēriņu, bākas, programmaparatūras atjauninājumus un konfigurāciju, izmantojot Bluetooth.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
2G (GSM), Cat M1, NB-IoT
FDD LTE frekvenču joslas
1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 4 (1700MHz), 5 (850MHz), 8 (900MHz), 12 (700MHz), 13 (700MHz), 18 (850MHz), 19 (850MHz), 20 (800MHz), 28 (700MHz)
TDD LTE frekvenču joslas
39 (1900MHz)
SIM kartes slots
Micro-SIM
Interfeisi
USB porti
(1) Micro USB
Komunikācijas interfeiss
CAN interfeiss
Bluetooth
4.0 LE
Izsekošana
OBDII dati
Atbalsta
Programmatūra
Ekonomiska braukšana, Degvielas monitorings digitāls, Avāriju noteikšana, Vilkšanas noteikšana
Sensori
Akselerometrs
Elektroapgāde
Atbalstītais ieejas spriegums
10 - 30 V DC
Baterijas tips
Li-Ion
Akumulators
170 mAh 3.7 V
Iekšējā akumulatora enerģija
0.63 Wh
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP41
Izmēri
68 x 50 x 25 mm
Svars
0.063 kg
Darbības temperatūra
-40 °C līdz 85 °C
