Ražotāja daļas nr
DS-3E0105P-E
Garantija
?
24 mēneši
EAN numurs
6954273632663

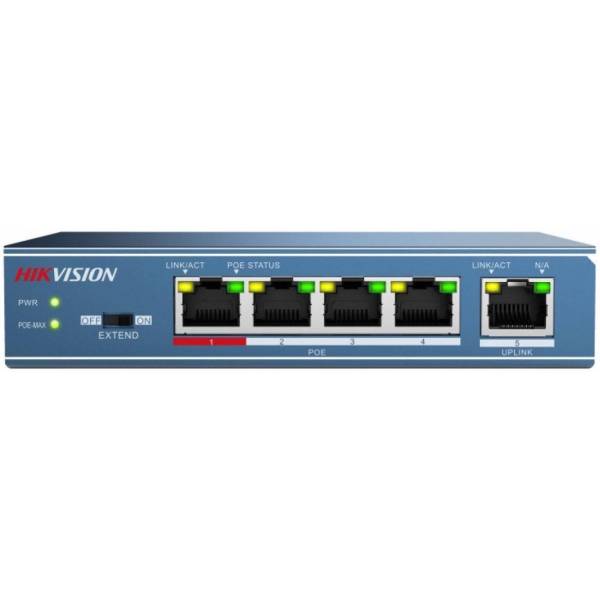

Hikvision komutators DS-3E0105P-E PoE
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Hikvision komutators DS-3E0106HP-E
DS-3E0106HP-E
Pieejamas alternatīvas
Preces apraksts
DS-3E0105P-E/M PoE ir piecu portu 100Mbps komutators. Porti no 1 līdz 4 var identificēt un automātiski piegādāt elektroenerģiju, PoE iespējotām ierīcēm saskaņā ar IEEE 802.3af, izmantojot Ethernet kabeļus. Maksimālā PoE izejas jauda uz vienu portu ir 15,4 vati, bet viss komutators var nodrošināt 35 vatus. Turklāt komutators ir aprīkots ar plug and play funkcionalitāti, tāpēc tas ir ideāla izvēle viesnīcām, skolām, rūpnīcu kopmītnēm un maziem / vidējiem uzņēmumiem, lai izveidotu rentablu PoE tīklu.
Funkcijas:
- 4 PoE porti 10/100 Mbps un 1 Ethernet ports 10/100 Mbps
- PoE barošana saskaņā ar IEEE 802.3af/at satndartu
- PoE pārraide līdz pat 250 m attālumā
- VIP ports nodrošina svarīgu datu pārsūtīšanu tīkla pārslodzes gadījumā
- Uzticama 6 KV aizsardzība pret pārspriegumiem
- Atbalsta MAC adrešu " Auto learning" un "Auto aging" funkcijas
- Atbalsta intelektuālo kešatmiņas optimizāciju
- Iespēja uzstādīt uz darbvirsmas vai sienas
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Interfeisi
RJ45 porti
(5) 100 Mbps
PoE portu skaits
4 gab
PoE standarti
802.3af (PoE), 802.3at (PoE+)
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Ārējais AC/DC adapteris
Maksimālais enerģijas patēriņš
3 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
PSU / POE adapter
48 V DC 0.8 A
Fiziskie parametri
Materiāls
Metāls
Izmēri
105 × 28 × 83 mm
Svars
0.2 kg
Darbības temperatūra
-10 °C līdz 55 °C
Vide
Iekštelpu
Montāžas veids
Galda virsma
Formas faktors
Darbvirsmas
Iepakojumā iekļauts
Ārējais barošanas bloks
Iekļauts
