Zīmols
Ražotāja daļas nr
AHPI7292S
Garantija
?
24 mēneši
EAN numurs
4718050307722

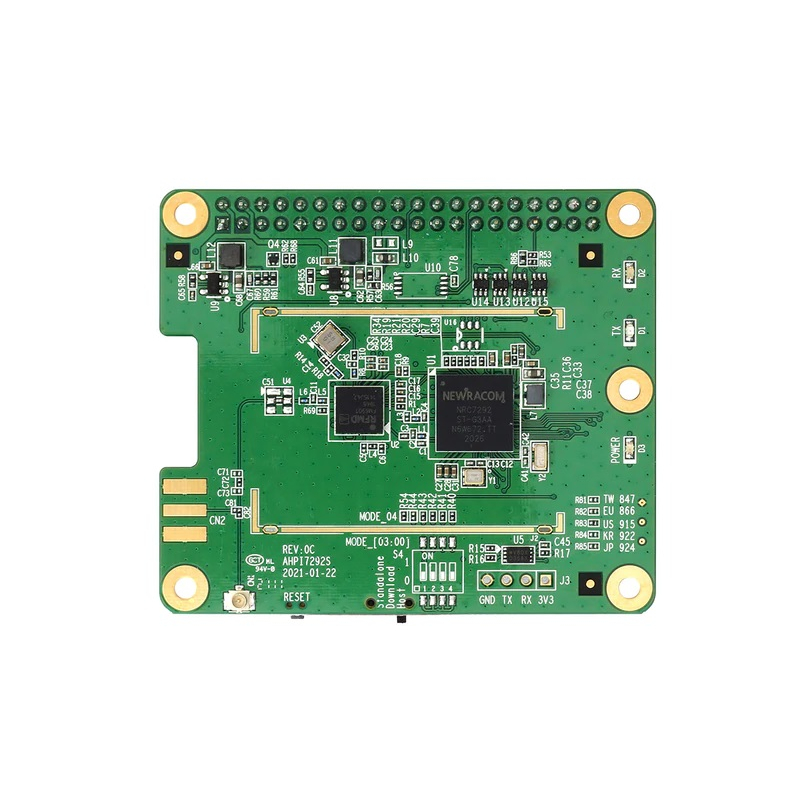

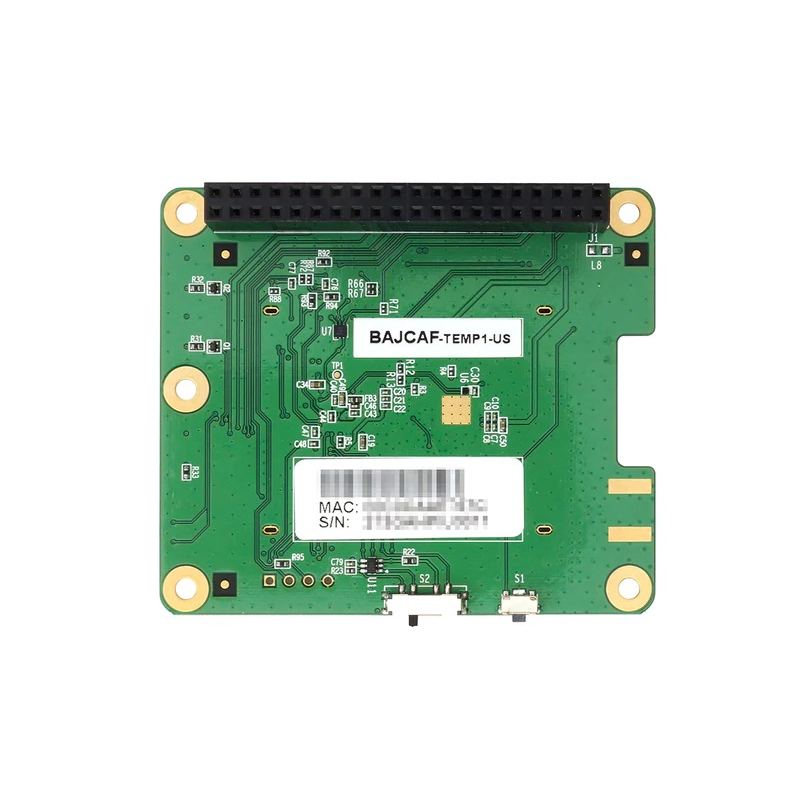

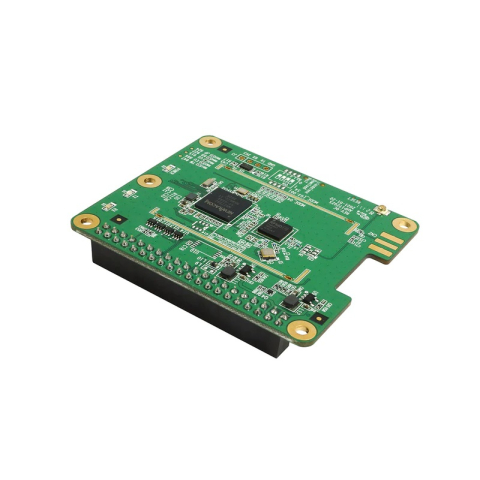

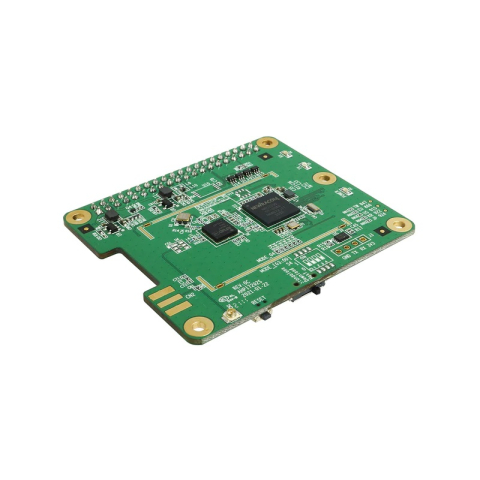

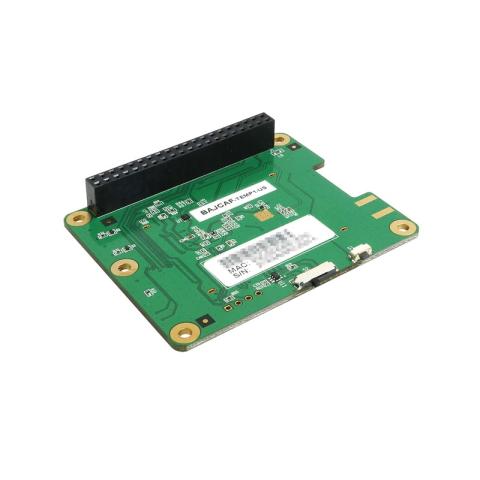

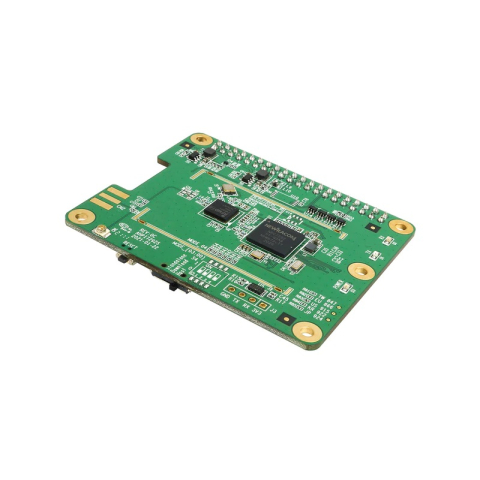

Alfa HaLow Raspberry Pi HAT modulis
ir noliktavā
?
73.77 €
73.77 €
Preces apraksts
AHPI7292S ir pasaulē pirmais HaLow™ Raspberry Pi™ HAT Wi-Fi modulis
AHPI7292S moduļu sērija ļauj izveidot Wi-Fi tīklus ar lielu darbības rādiusu un īpaši zemu enerģijas patēriņu. AHPI7292S darbojas bezlicences joslās līdz 1 GHz, izmantojot ļoti populāro un atvērto platformu Raspberry Pi™. Wi-Fi HaLow™ nodrošina savienojamību daudziem lietojumiem, tostarp sensoriem un valkājamām ierīcēm. Šis modulis izmanto frekvenci 866 MHz, kas pilnībā atbilst Eiropas Savienības normatīvo aktu prasībām.
Autonomā un centrālā režīma atbalsts, caurlaidspēja līdz 15 Mb/s un pilnvērtīgs programmatūras izstrādes komplekts ļauj viegli sākt darbu ar šo jauno Wi-Fi standartu.
Īpašības:
- Newracom™ NRC7292 Wi-Fi HaLow™ SoC procesors (saderīgs ar IEEE 802.11ah draft 8.0)
- Frekvence: 866 MHz (ES)
- Qorvo™ RFFM6901 FEM modulis
- DIP pārslēdzējs režīma izvēlei un UART savienotājs
- Raspberry Pi™ HAT formāts ar 40 kontaktu GPIO savienotāju
- 3 gaismas diodes
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Bezvadu tīkls
Standarti
802.11ah
Frekvence
866 MHz
Konnektori
RF savienotāji
(1) U.FL
Sistēmas specifikācija
Chipset
Newracom™ NRC7292
Fiziskie parametri
Izmēri
65 × 56 × 10.3 mm
Formas faktors
Iebūvēts
Iepakojumā iekļauts
Ārējais barošanas bloks
Nav iekļauts
