Zīmols
Ražotāja daļas nr
PR1AS420
Garantija
?
24 mēneši
EAN numurs
0708747440768
Teltonika mobilā antena 2dBi, līmējošā, SMA Male
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
6.22 €
6.22 €
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts

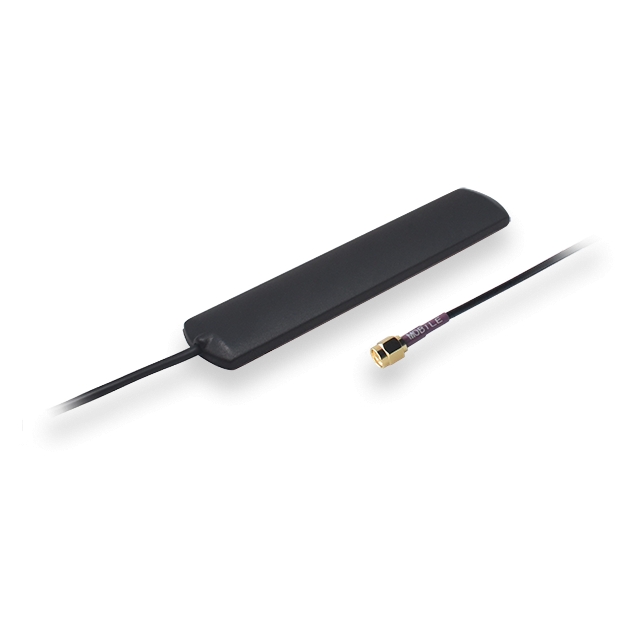

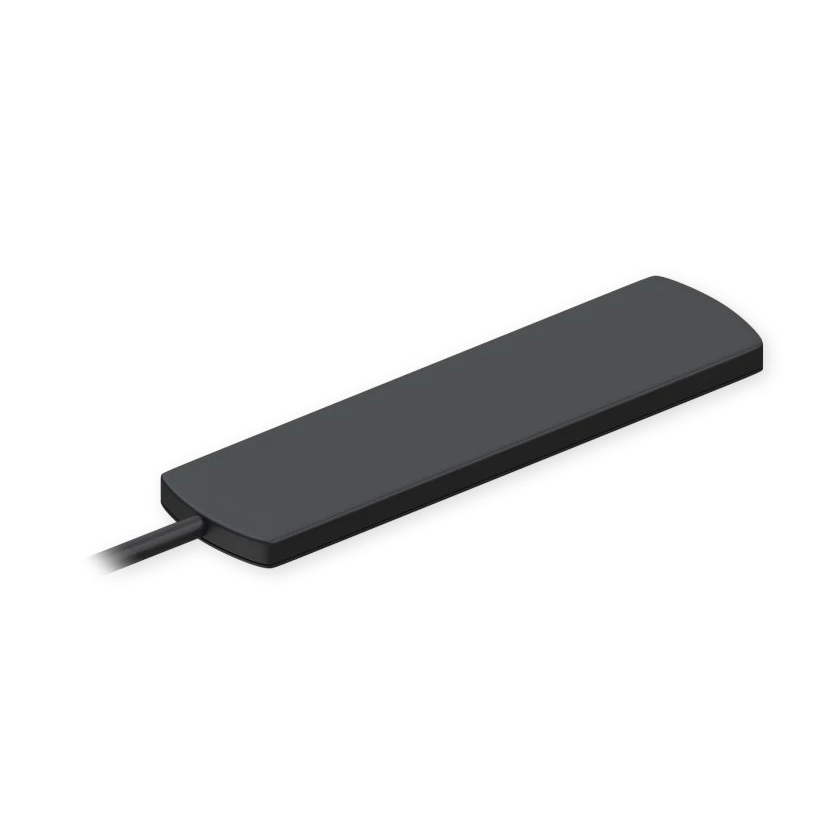

PR1AS420 ir antena ar SMA Male savienotāju, kas darbojas frekvenču joslās 824-960 / 1710-2170 MHz ar maksimālo pastiprinājuma koeficientu 2 dBi. Tā ir lineāri polarizēta antena ar 50 Ohm pretestību. Antena ir aizsargāta pret putekļiem atbilstoši IP50 standartam. PR1AS420 ir aprīkota ar 3 m garu RG174 augstfrekvences koaksiālo kabeli. Piestiprināšanas metode: līmēšana.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Mobilās antenas frekvences diapazons un pastiprinājums
0.824 - 0.960 (GHz) 2 (dBi), 1.710 - 2.170 (GHz) 2 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 2 dBi
Polarizācija
Lineāra

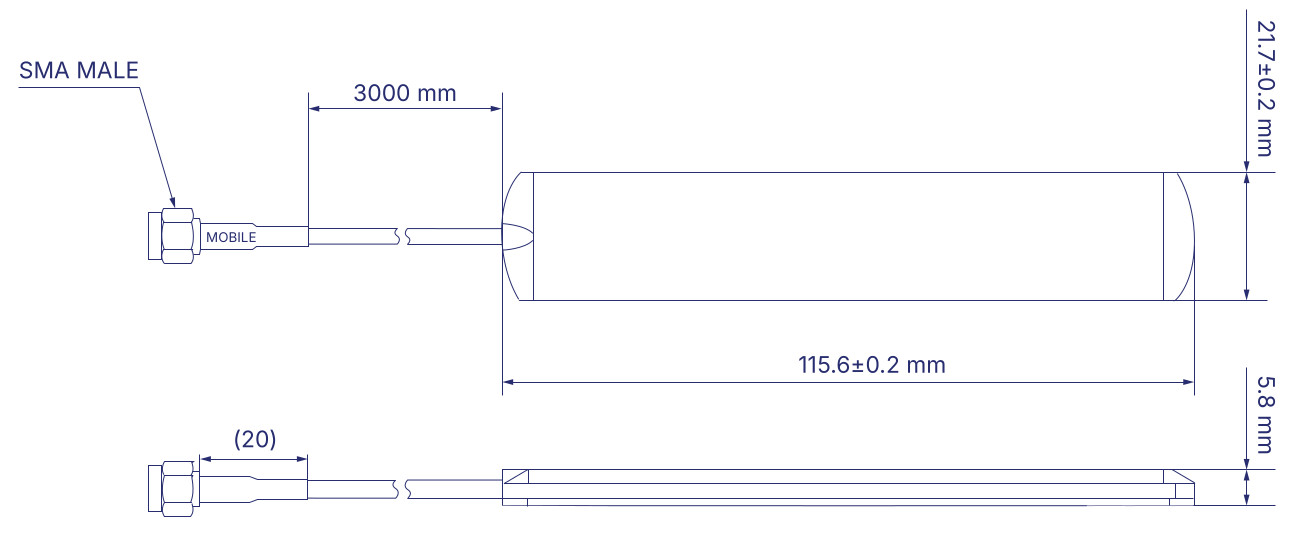

Kabeļa garums
3 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji

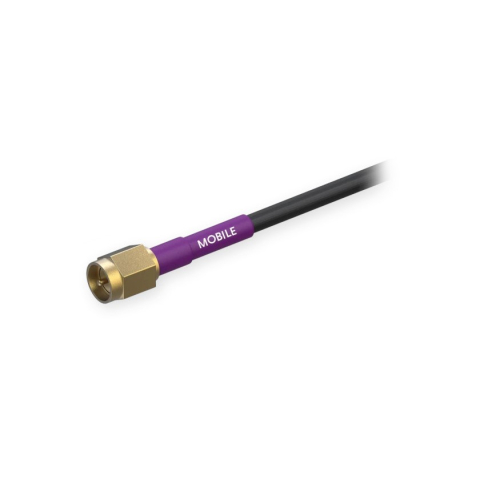

(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Āra
Montāžas veids
Līme
