Ražotāja daļas nr
HF240T-SM-SF-12
Garantija
?
24 mēneši
EAN numurs
4752284001520

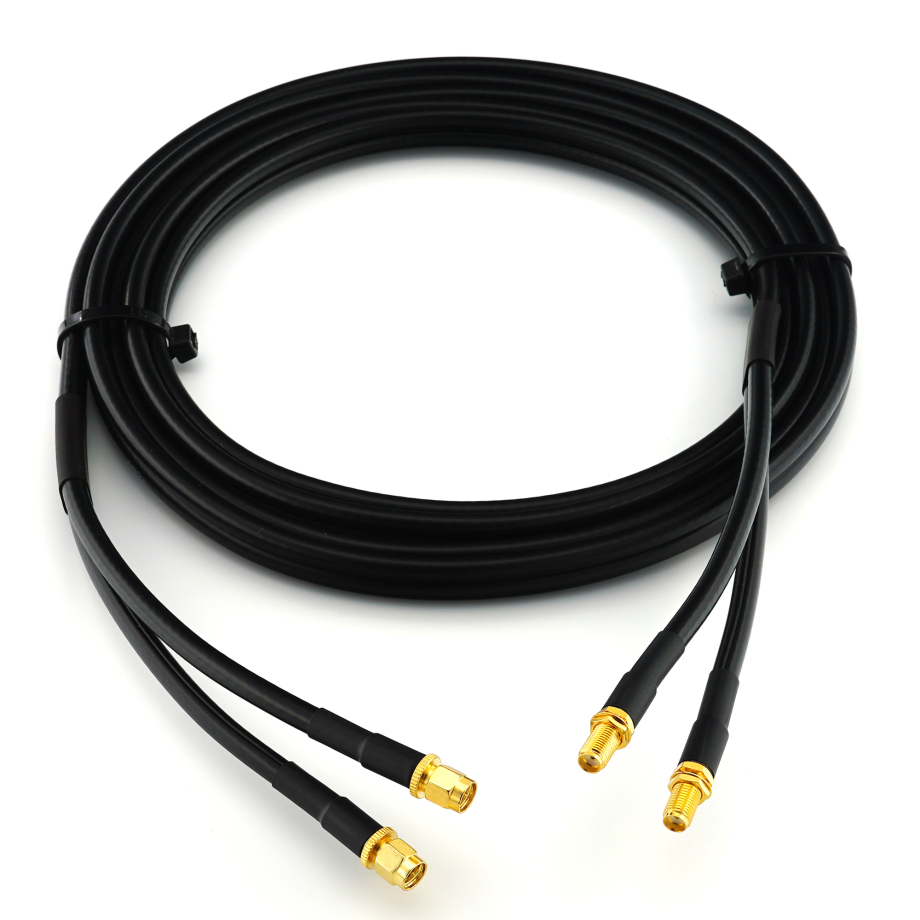

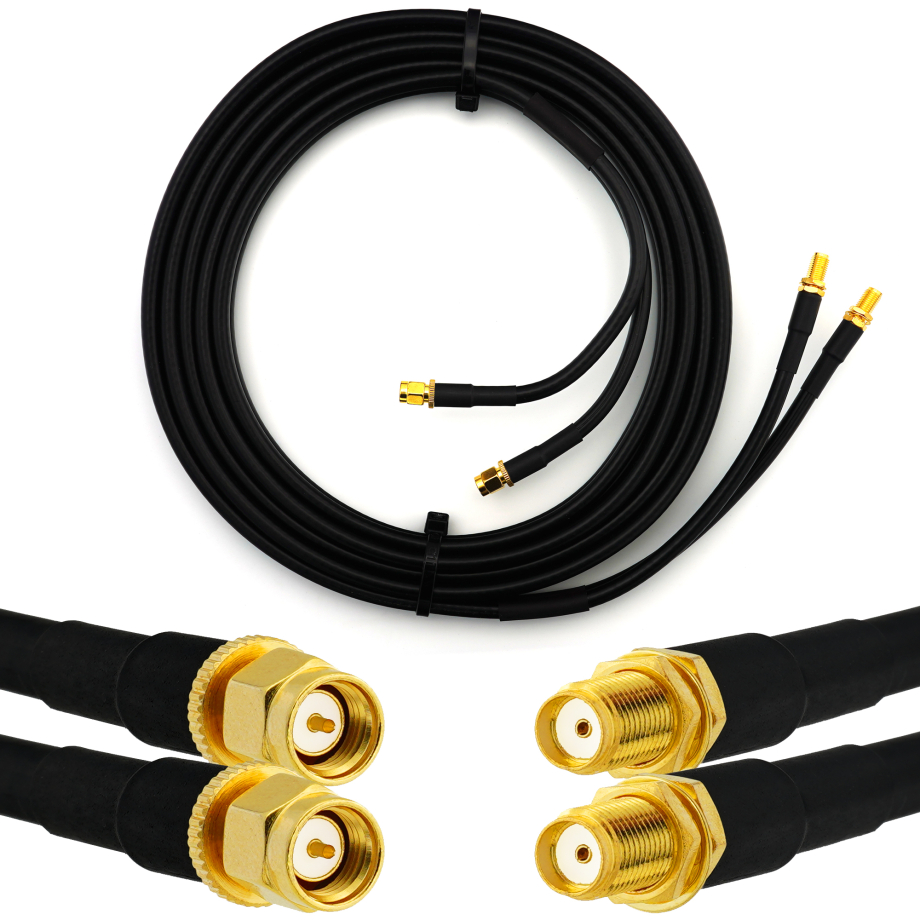

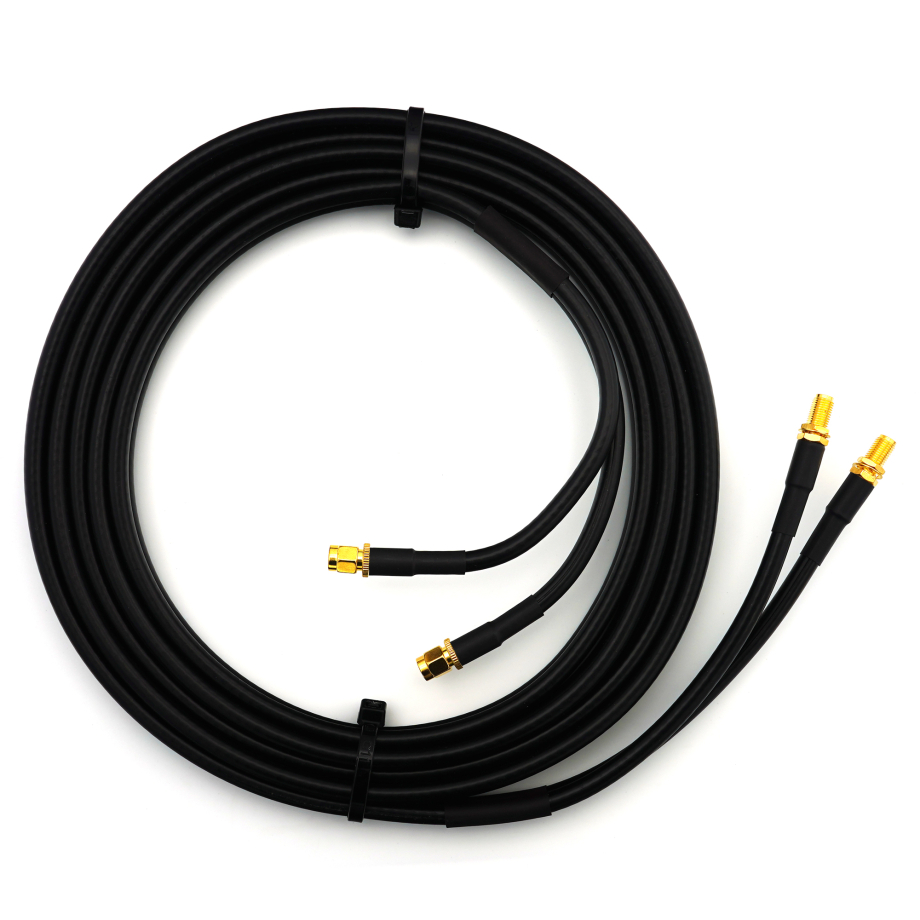

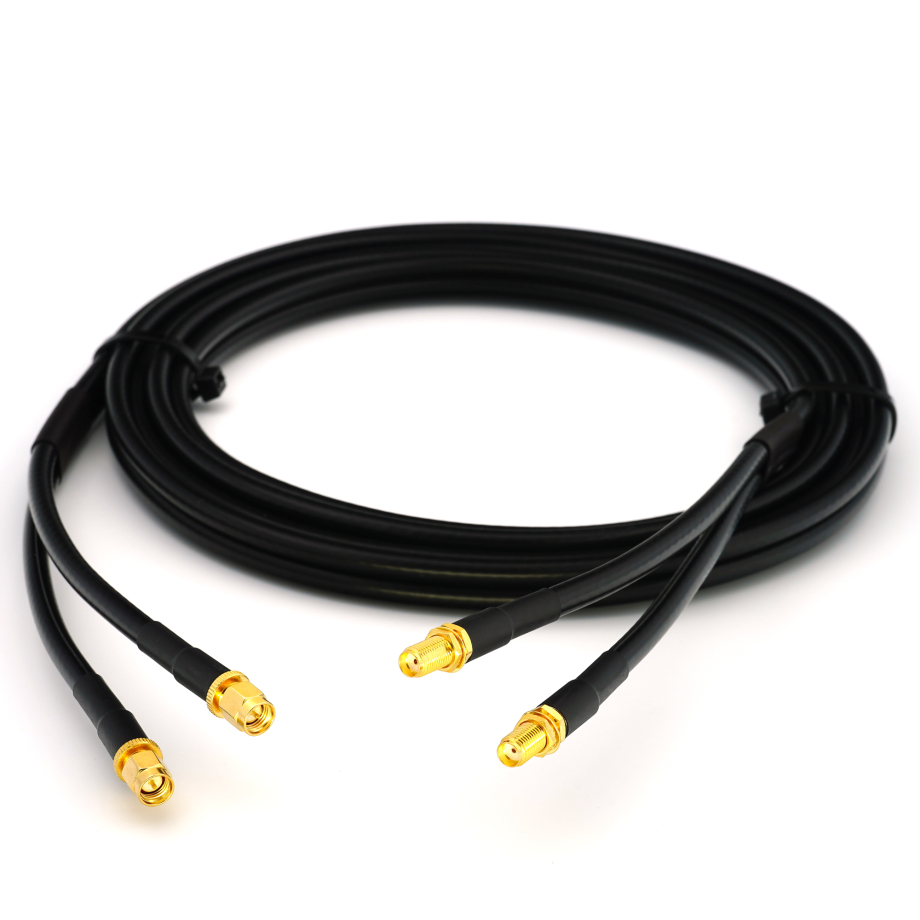

SMA Male / SMA Female 12m dubultais koaksiālais kabelis - HF240 (LMR240 ekvivalents)
ir noliktavā
?
51.65 €
51.65 €
Preces apraksts
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Kabelis un savienotājs
Savienotājs
(2) SMA Male - (2) SMA Female
Kabeļa tips
LMR240 Twin
Kabeļa garums
12 m
Vadītājs
Tīrs varš
Vadītāja diametrs
Ø 1,40 mm
Dielektriķis
PEG
Dielektriķa diametrs
Ø 3,80 ± 0,10 mm
Ekranēšana
Alumīnija folija
Ekranēšanas izmēri
Ø 3,90 ± 0,10 mm
Ekranēšanas pārklājums
100 %
Pinums
Alvots varš
Pinuma izmēri
Ø 4,30 ± 0,10 mm
Pinuma pārklājums
77 %
Apvalks
PVC
Apvalka diametrs
Ø 6,10 ± 0,10 mm mm
Fiziskie parametri
Krāsa
Melns
Izmēri
19 x 19 x 5 cm
Darbības temperatūra
-30 °C līdz 70 °C
Vide
Iekštelpu, Āra
Iepakojumā iekļauts
Vienības
1 gab
