QuMax antena RUTX12/X14 iekārtai

ir noliktavā
?
155.26
ir noliktavā
?
155.26

Zīmols

Ražotāja daļas nr

AX12M

Garantija

?
24 mēneši

EAN numurs

5907772035443

Kategorija

Preces apraksts

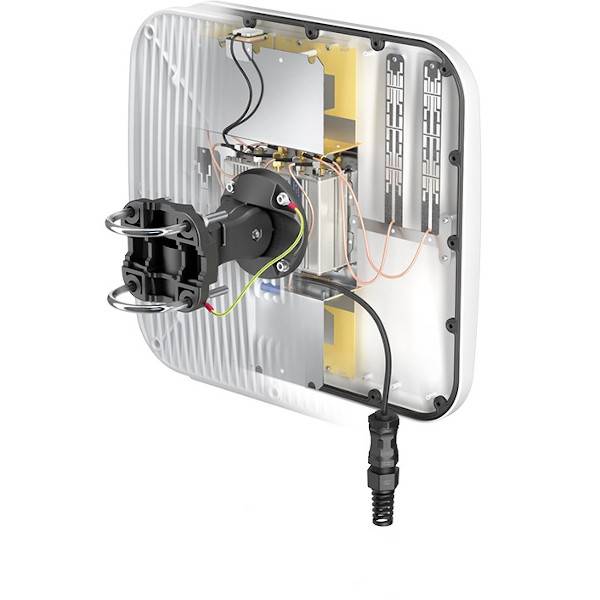

QuMax MIMO 4x4 virziena LTE antena (aprīkota ar 4 SMA savienotājiem priekš diviem iebūvētiem LTE modemiem) ir paredzēta Teltonika RUTX12 maršrutētājam. Ierīce ir lieliski piemērota mobilajām un stacionārajām ārtelpu instalācijām, piemēram, rūpnieciskiem objektiem, videonovērošanai, piekļuves punktiem u. c. Tajā ir iebūvēta visvirziena Wi-Fi antena, kas darbojas 2,4 un 5 GHz frekvenču joslā, kā arī GPS antena un Bluetooth antena.

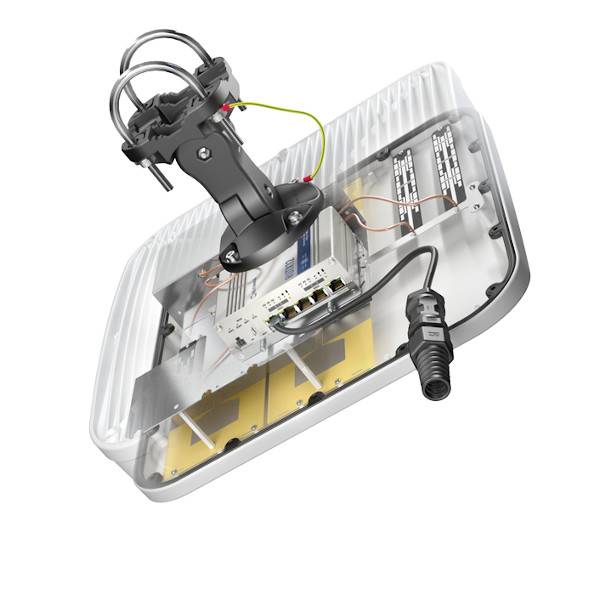

Ierīce ir paredzēta Teltonika RUTX12 maršrutētāja uzstadīšanai korpusā, kas atbilst IP67 standartam. Izmantojot RUTX12 kopā ar QuMax antenu, jūs iegūsiet pilnvērtīgu risinājumu ar integrētu maršrutētāju un daudzdiapazonu antenu vienā korpusā.

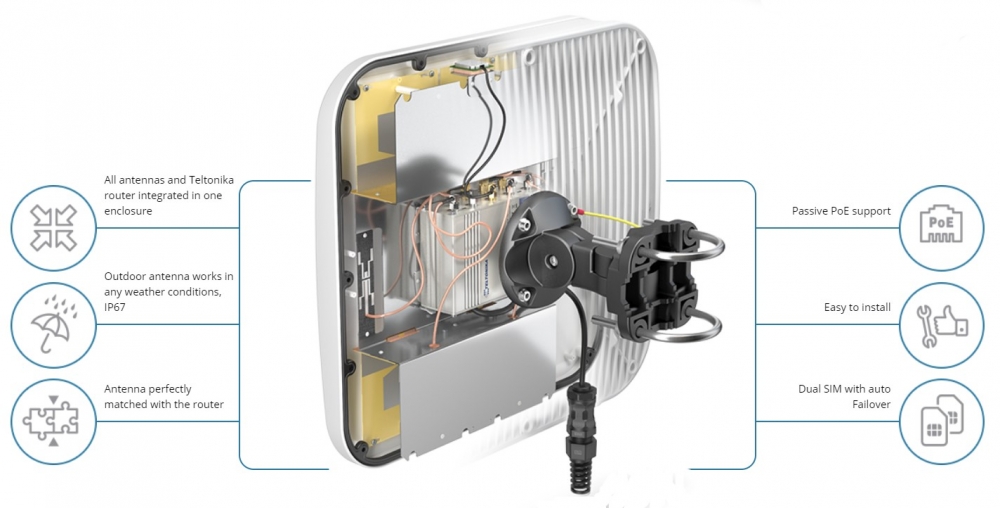

/images/catalogue/description/268/ax12mpic-5f5888bac9dc0.jpeg

Specifikācijas

Antena

Antenas dizains

Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums

2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums

0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Mobilās antenas pastiprinājums

4 dBi, 5 dBi, 6 dBi
Stara platums

90 ° Vertikāli, 90 ° Horizontāli
Polarizācija

Vertikālā
VSWR

< 2
Pretestība

50 Ω

Fiziskie parametri

Krāsa

Balts
Materiāls

Alumīnijs, ABS plastmasa, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem

IP67
Izmēri

392 x 392 x 99 mm
Svars

3.7 kg
Darbības temperatūra

-40 °C līdz 75 °C
Vide

Āra
Montāžas veids

Atsauksmes un vērtējums

4
/ 5
1 atsauksme
1 atsauksme
Piotr Steininger,2023.05.12
This is definitely a quality product. The Plastic isn't cheap, and has no leftover edges from the injection molding process. It has all the antennas that RUTX12/RUTX14 needs. However the space for the router is very tight and some of the attachments cover up ports on either side. i was not able to power the router via PoE. The provided pass-through has some problems accepting a patch cable. So it must be hooked up with an installation cable (cat7) and crimped after part of the gland is slipped onto the cable. There was notable gain in the signal strength, as well as quality and SINR. However, this did not translate to a significant gain in DL or UL speeds. I tested it against the included stubbies and 4 directional antennas, with rather long cables (which result in some signal loss). The directional antennas outperformed this one in upload speed, which is the most critical component for me. I think that in a less rural area, without forrest all around, this product would definitely be very useful.
