Zīmols
Ražotāja daļas nr
APLS1-H1
Garantija
?
24 mēneši
EAN numurs
5907772035511

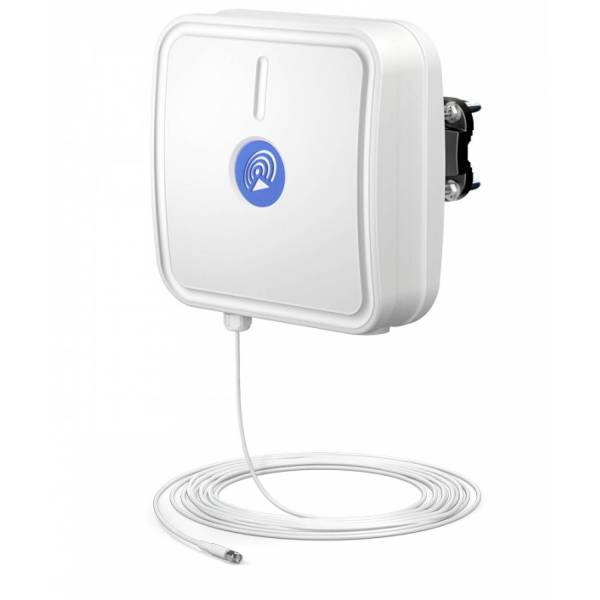

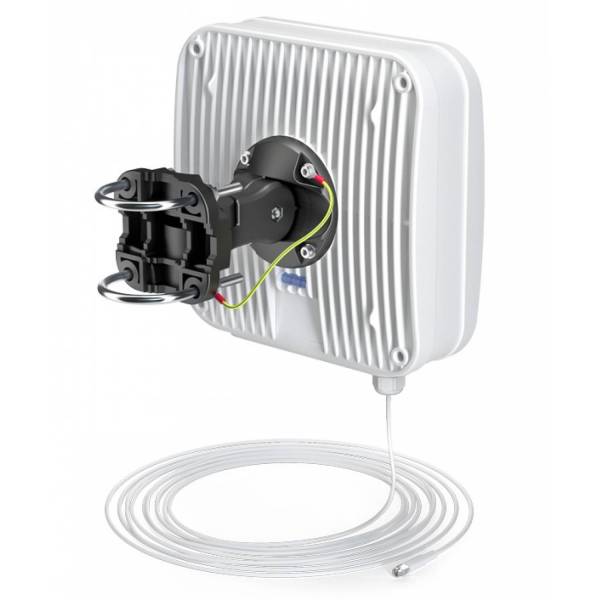

QuPanel LTE High Power SISO, 10m kabelis
ir noliktavā
?
-18% 98.76 €
81.07 €
-18% 98.76 €
81.07 €
Preces apraksts
Virziena LTE SISO daudzjoslu antena
Virziena antena QuPanel LTE HP ar lielu pastiprinājumu ir galvenokārt paredzēta 4G LTE, bet ir saderīga arī ar 3G un 2G. Antena uzlabo signālu lauku/piepilsētu rajonos un vietās ar vāju mobilo signālu. Šī antena ir paredzēta uzstādīšanai uz ēkām (uz staba vai sienas).
Pateicoties ļoti plašajam darbības frekvenču diapazonam, antena ir universāla ierīce LTE joslām, piemēram, LTE700/ 800/ 1800/ 1900/ 2100/ 2300/ 2600. Saderīga ar Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 un citiem SISO LTE/3G/2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Paneļa
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.7 (GHz) 7 (dBi)
Mobilās antenas pastiprinājums
7 dBi
Stara platums
70 ° Vertikāli, 70 ° Horizontāli
Kabeļa garums
10 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
276 x 272 x 96 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Montāžas veids
Staba stiprinājums
