Produkta nosaukums
JCG401 kompakta mobilā antena 2dBi
Garantija
?
24 mēneši
Ražotāja daļas nr
JCG401-STR
EAN numurs
0708747440225

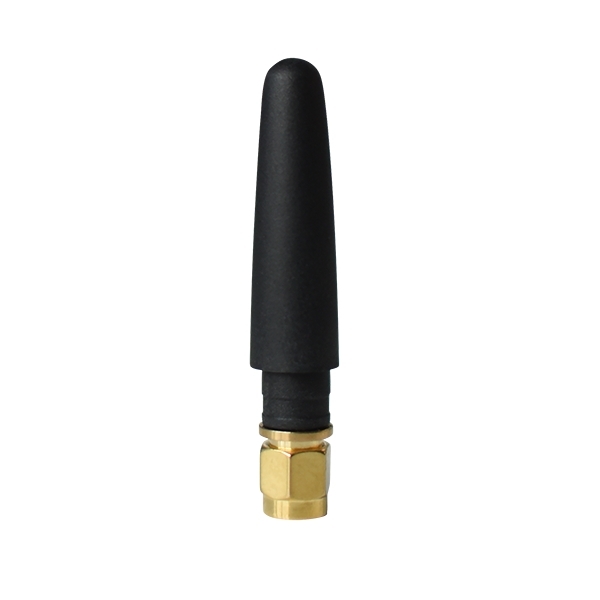

JCG401 taisna kompakta mobilā antena 2 dBi | SMA vīrišķais savienotājs | 880–960 / 1710–2170 MHz
- Kompakta mobilā antena ar 2 dBi pastiprinājumu uzticamam signālam 880–960 / 1710–2170 MHz joslās.
- SMA male savienotājs ērtai integrācijai ar saderīgām ierīcēm un mobilajiem risinājumiem.
- Lineārā polarizācija palīdz nodrošināt stabilu bezvadu darbību kompaktā 53,7 x 10,5 mm formātā.
- Uzticamai lietošanai plašā temperatūru diapazonā: no -40 °C līdz +85 °C.
- Zems VSWR < 2,5 palīdz efektīvāk pārraidīt signālu ikdienas mobilajās lietojumprogrammās.
3.05 €
Ir noliktavā
?
3.05 €
Ir noliktavā
?
Preces apraksts
Tehniskās specifikācijas:
- Frekvenču diapazons: 880~960 / 1710~2170 MHz
- Lineārā polarizācija
- Pastiprinajuma koeficients 2 dBi
- SMA Male saspraudnis
- Izmēri: 53.7 x 10.5 mm
- Darbības tempertūra: -40°C ~ +85°C
- V.S.W.R (min) < 2.5
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.880 - 0.960 (GHz) 2 (dBi), 1.710 - 2.170 (GHz) 2 (dBi)
Mobilās antenas pastiprinājums
2 dBi
Polarizācija
Lineāra
VSWR
< 2.5
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Iekštelpu
