Zīmols
Ražotāja daļas nr
APA-L2458-08A
Garantija
?
24 mēneši
EAN numurs
4718050306800

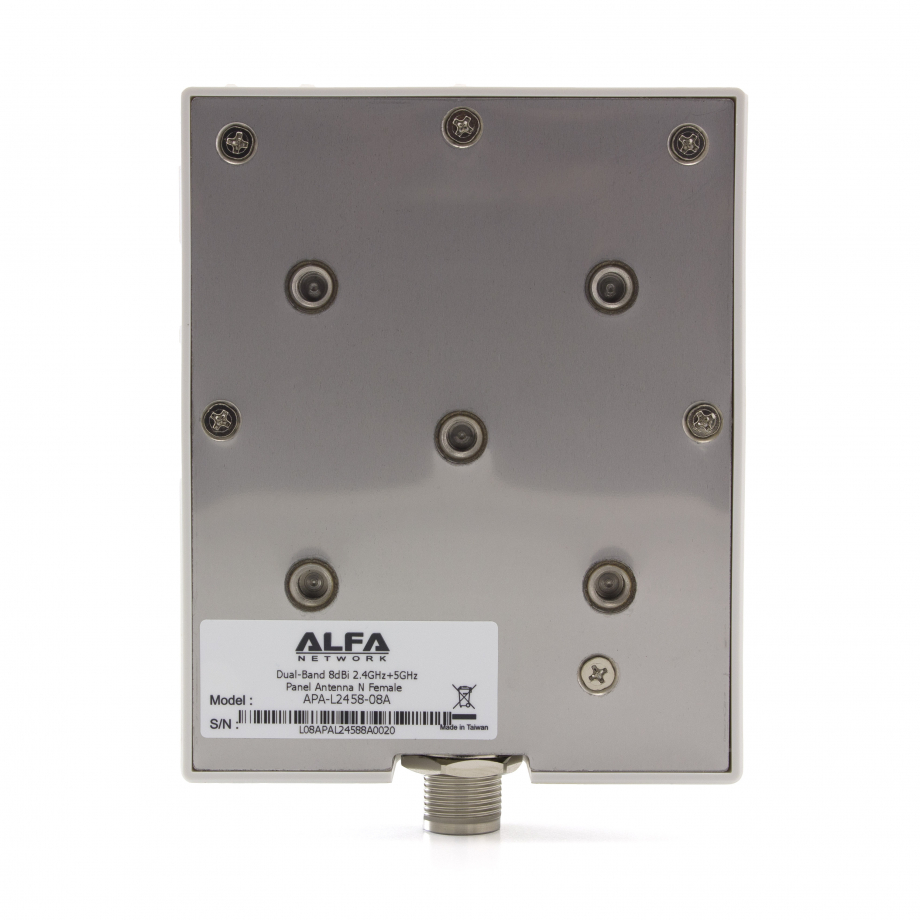

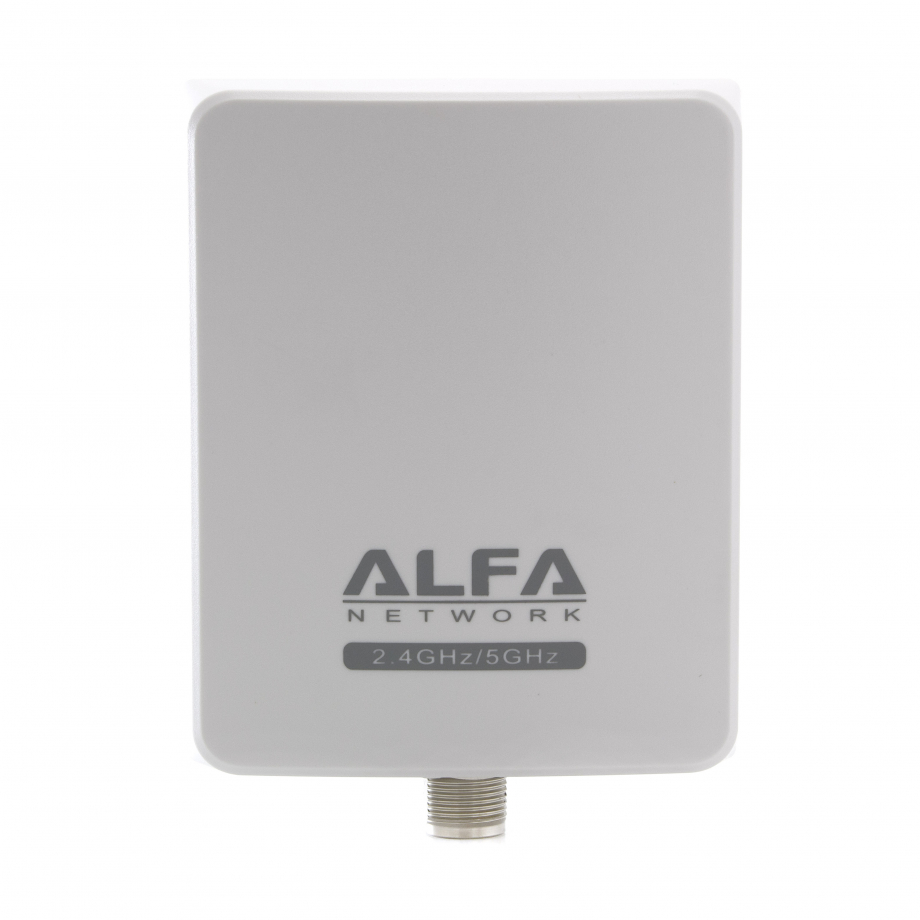

Alfa 2.4/5GHz āra paneļa antena 8dBi N-Female
nav noliktavā
?
24.77 €
24.77 €
Pieejamas alternatīvas
Preces apraksts
Ja jūs meklējat divdiapazonu ārtelpu visvirzienu antenu ar zemo profilu, pievērsiet savu uzmanību šai paneļa antenai ar 8 dBi pastiprinājumu un N-Female tipa savienotāju, ko ražo Alfa Network. Šī paneļa antena ir paredzēta lietošanai kopā ar Alfa Tube-UAC2.
Šo antenu var piestiprināt pie gandrīz jebkuras virsmas un savienot ar dažādiem Wi-Fi adapteriem.

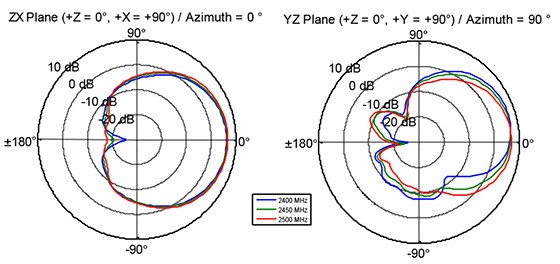

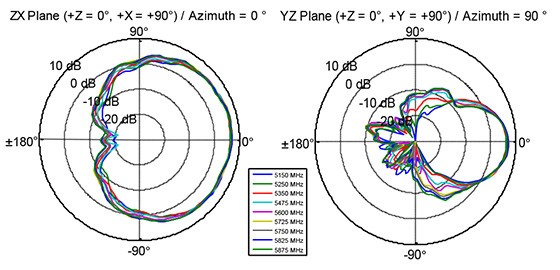

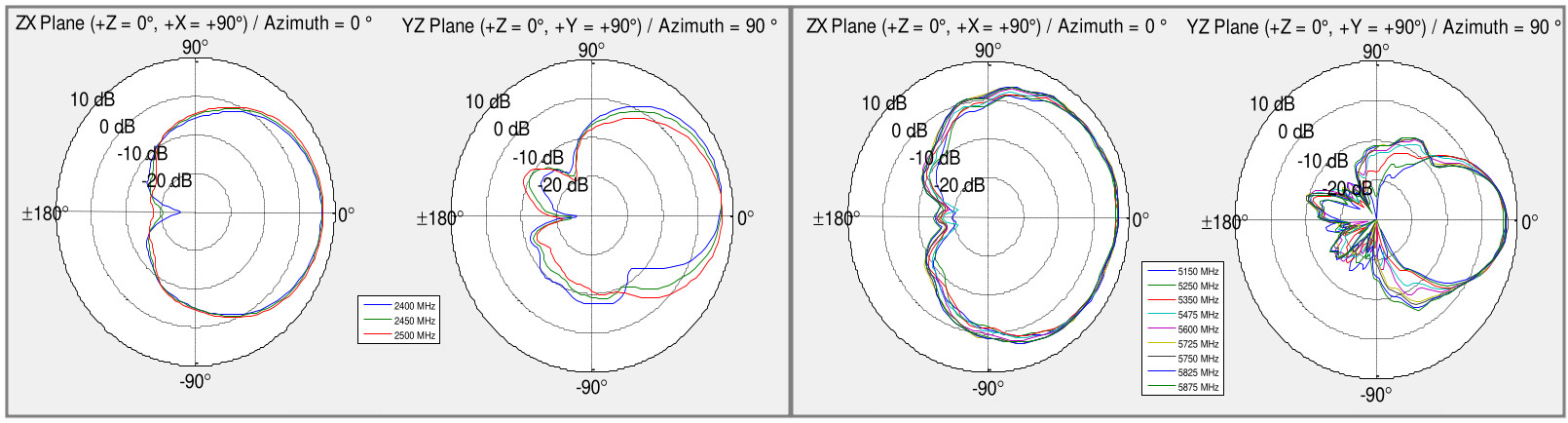

Frekvenču diagramma
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.483 (GHz) 8 (dBi), 5.1 - 5.9 (GHz) 8 (dBi)
Stara platums
40 ° Vertikāli, 90 ° Horizontāli
VSWR
< 1.7
Konnektori
RF savienotāji

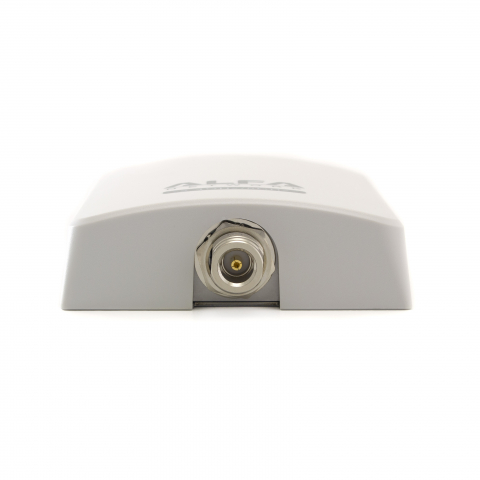

(1) N Female
Fiziskie parametri
Izmēri
117 x 95 x 31 mm
Svars
0.22 kg
