Produkta nosaukums

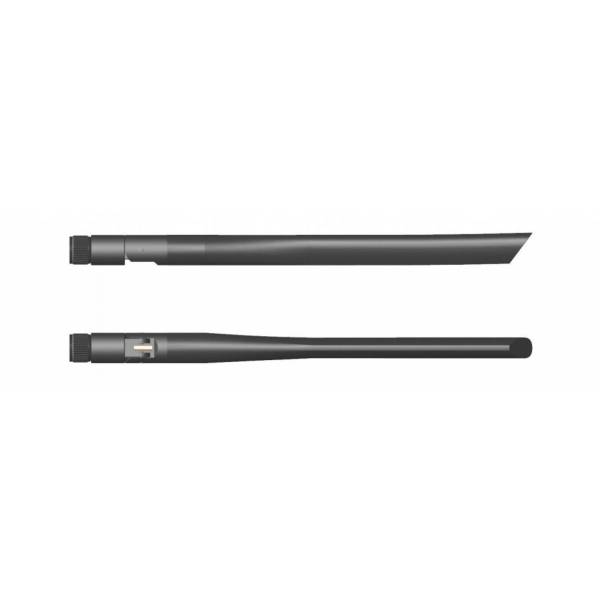

5G 3dBi iekštelpu omni antena
Garantija
?
24 mēneši
Ražotāja daļas nr
JCG410NR
EAN numurs
0708747438611
5G 3dBi iekštelpu omni antena
Official Teltonika Distributor
Certified Teltonika Engineers
Ir noliktavā
?
7.43 €
7.43 €
Official Teltonika Distributor
Certified Teltonika Engineers
Preces apraksts
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 3 (dBi), 1.710 - 2.690 (GHz) 3 (dBi), 3.300 - 3.800 (GHz) 3 (dBi)
Mobilās antenas pastiprinājums
3 dBi
Polarizācija
Lineāra
VSWR
< 3.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
Plastmasa

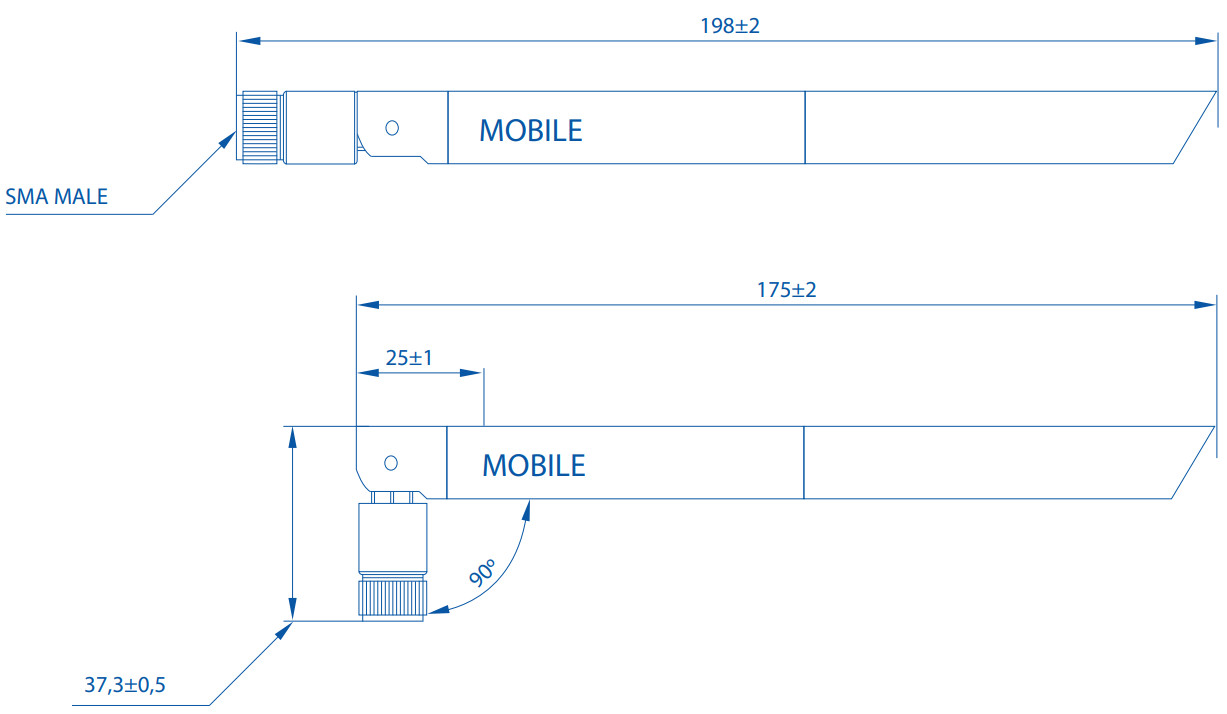

Izmēri
Ø13x198 mm
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Iekštelpu
